Page 59: 8adapting the application individually
Lenze · 8400 StateLine · Operating instructions · from Firmware V06.00 · DMS 1.2 EN · 12/2012 · TD05
59
8
Adapting the application individually
8.2
Activating additional functions in the signal flow
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.2.1
Speed limit values
C00635
C00636
C02611/x
L_NSet_1: nMaxLimit
Maximum speed setpoint for speed setpoint limitation
Setting range
(min. value | unit | max. value)
Lenze setting
-199.99
%
199.99 199.99 %
L_NSet_1: nMinLimit
Minimum speed setpoint for speed setpoint limitation
Setting range
(min. value | unit | max. value)
Lenze setting
-199.99
%
199.99 -199.99 %

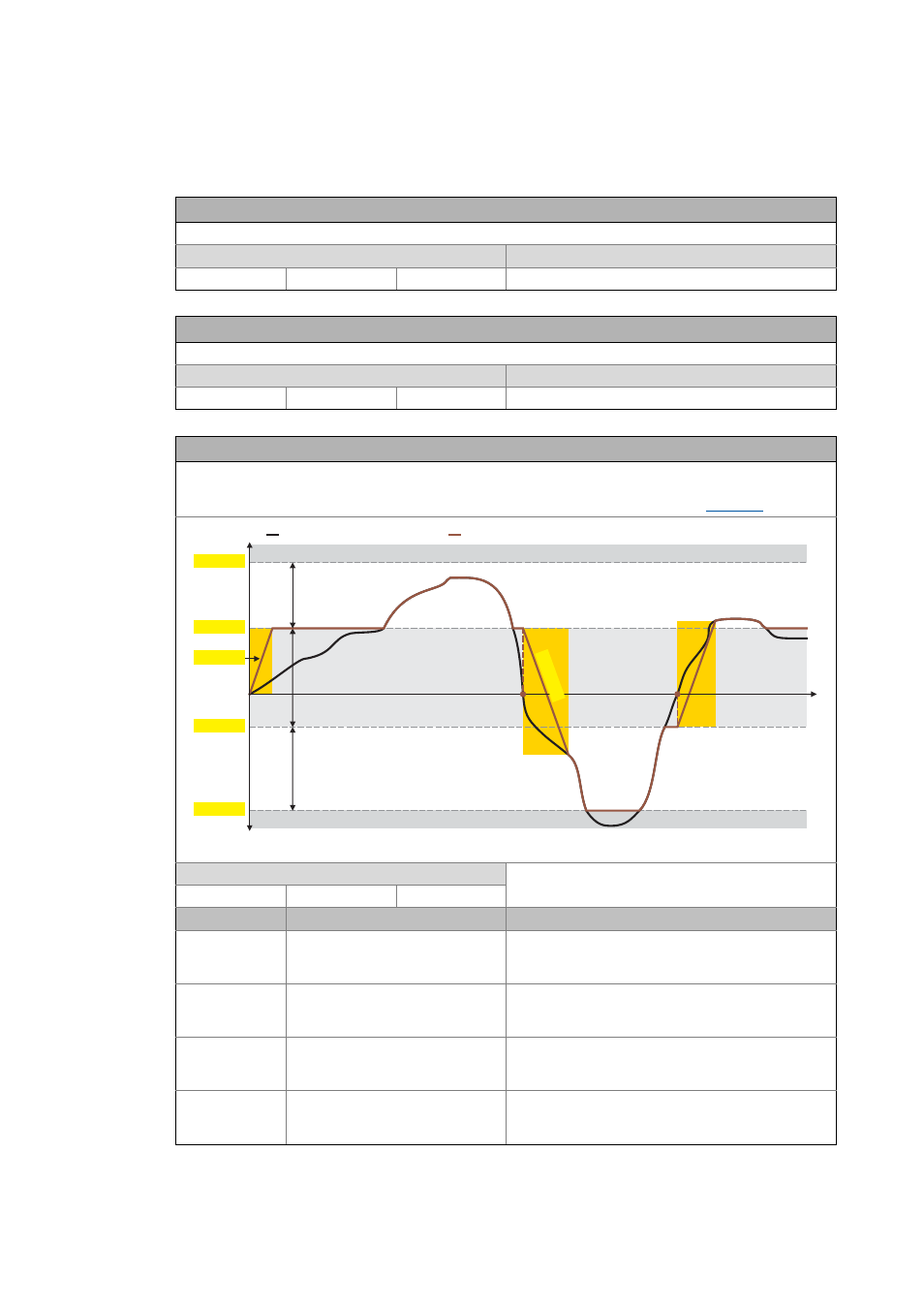

MCK: Limitations
Speed setpoint limits for the determination of limited validity ranges
Note:
Traversing with setpoints through resulting blocking zones is executed with the ramp set in
C02610/2
:
setpoint range synchronisation range
Setting range
(min. value | unit | max. value)
0.00
%
199.99
Subcodes
Lenze setting
Info
C02611/1
199.99 %
MCK: Pos. max. speed
• Upper limit of the speed setpoint limitation in
positive direction of rotation.
C02611/2
0.00 %
MCK: Pos. min. speed
• Lower limit of the speed setpoint limitation in
positive direction of rotation.
C02611/3
0.00 %
MCK: Neg. min. speed
• Lower limit of the speed setpoint limitation in
negative direction of rotation.
C02611/4
199.99 %
MCK: Neg. max. speed
• Upper limit of the speed setpoint limitation in
negative direction of rotation.
Sync
Sync
v
t
C02611/1
C02611/2
C02611/3
C02611/4
C02610/2
0
1
0
nSpeedSetValue_a
nSpeedSetValue_a_
C02610/2
