8.3.2 Motor potentiometer
Alternatively, the main speed setpoint can be generated via a motor potentiometer function.
• In the Lenze setting, the motor potentiometer function is deactivated.
• Activation is possible via C00806 or the bMPotEnable process input.
• The behaviour of the motor potentiometer during switch-on of the device can be selected in
C00805.

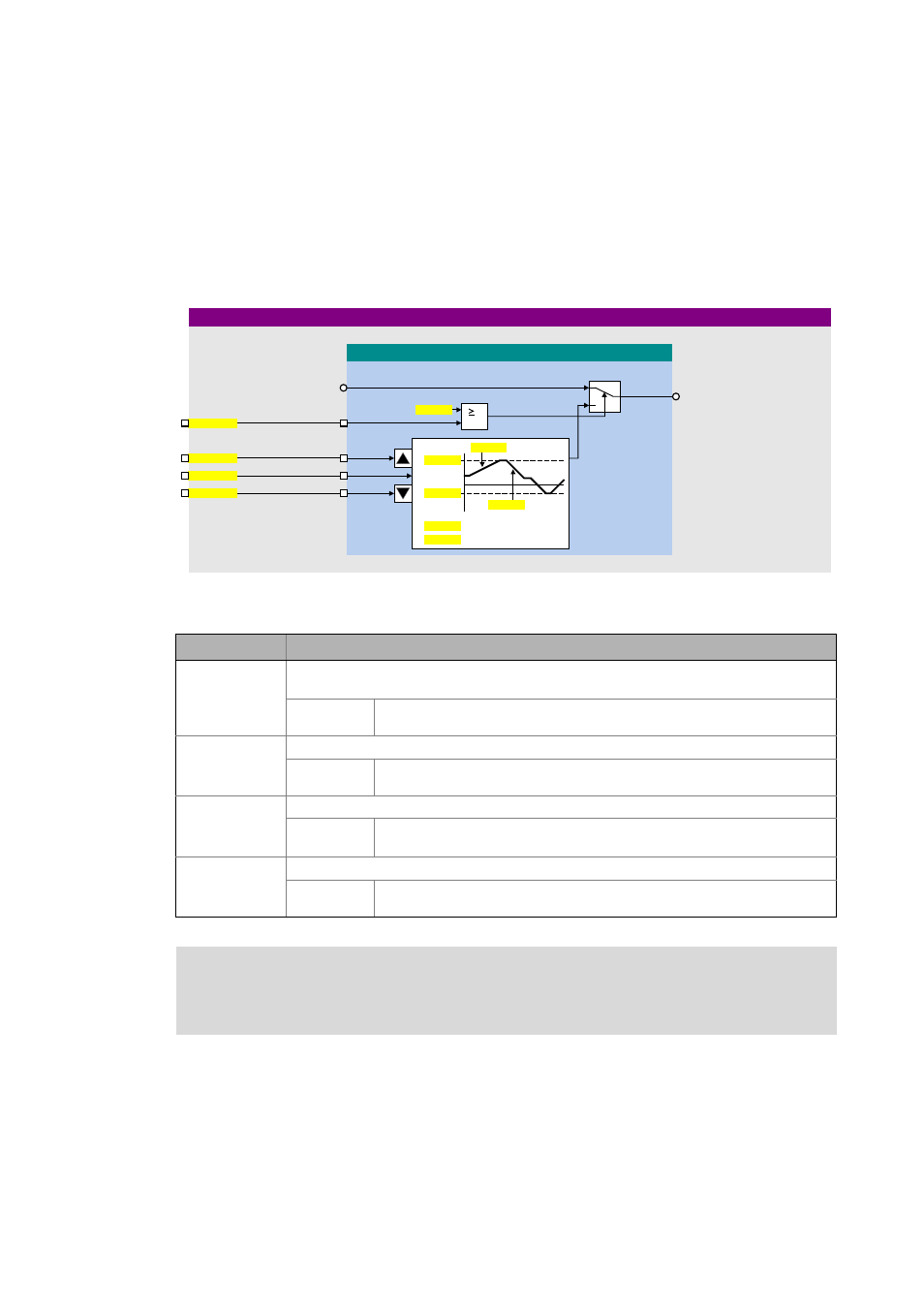

Interface description
Identifier Information/possible settings
bMPotEnable Activating the motor potentiometer function
• This input and C00806 are OR'd.
TRUE The motor potentiometer function is active; the speed setpoint can be changed
via the bMPotUp and bMPotDown control inputs.
bMPotUp Increasing the speed setpoint
TRUE Approach the upper speed limit value set in C00800 with the acceleration time
set in C00802.
bMPotInAct Activating the inactive function
TRUE The speed setpoint behaves according to the inactive function set in C00804.
• In the Lenze setting, the speed setpoint is maintained.
bMPotDown Decreasing the speed setpoint
TRUE Approach the lower speed limit value set In C00801 with the deceleration time
set in C00803.

A detailed description of the motor parameter function can be found in the
8400 StateLine reference manual in the following chapter:
Function library  Function blocks  L_MPot_1
/$B1&WUO
/B03RWB
E(QDEOH
Q2XWBD
Q,QBD
E8S
E,Q$FW
E'RZQ
,QLWLDOL]DWLRQIXQFWLRQ
&
/RZHUOLPLW
&
&
&
8SSHUOLPLW
$FFWLPH
& 'HFWLPH
'HDFWLYDWLRQIXQFWLRQ
&
&
E03RW'RZQ
E03RW8S
E03RW(QDEOH
E03RW,Q$FW
&
&
&
&
