8 Adapting the application individually
8.3 Implementing more additional functions in the signal flow
68
Lenze · 8400 StateLine · Operating instructions · from Firmware V06.00 · DMS 1.2 EN · 12/2012 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

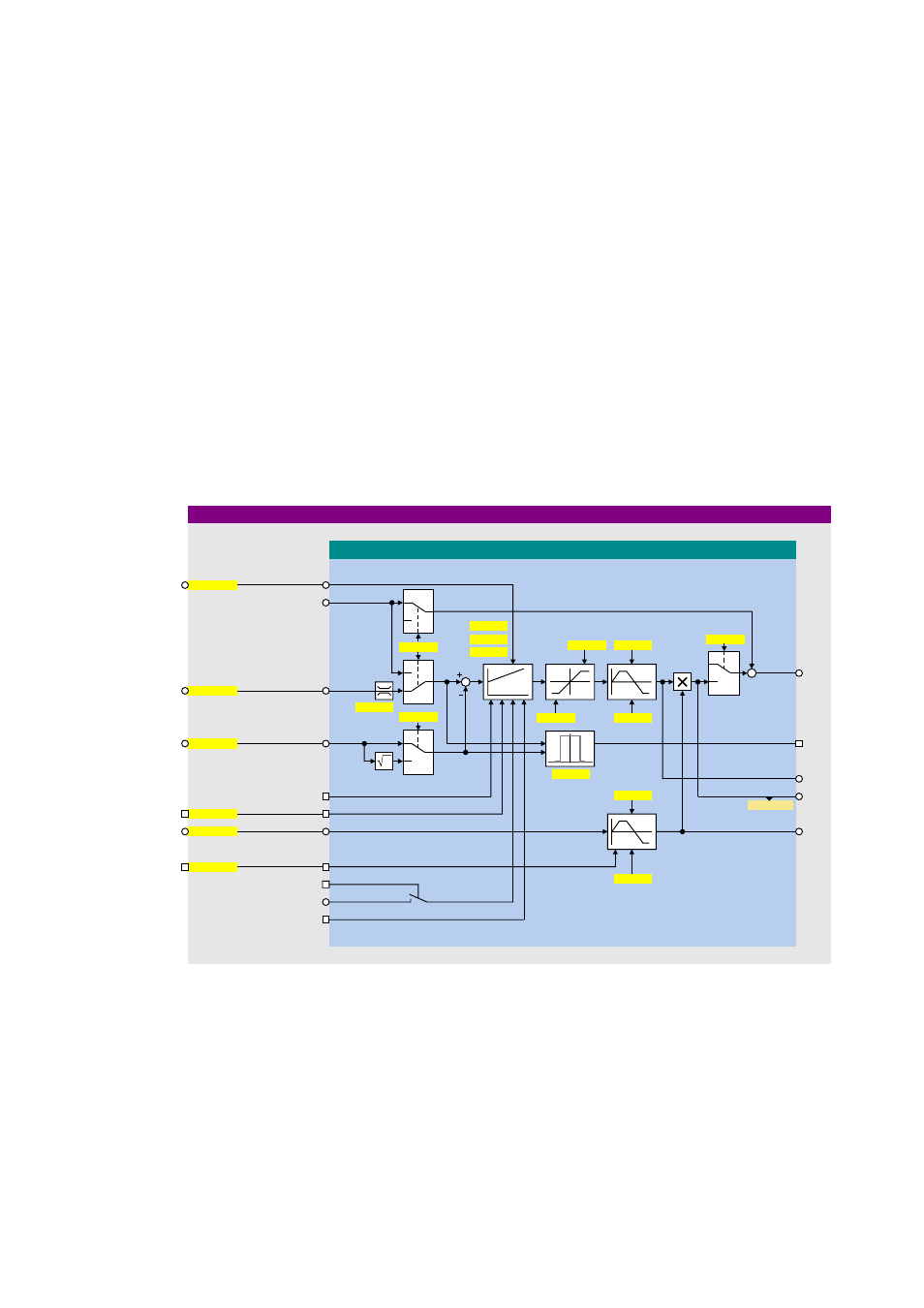

8.3.3 Process controller
The process controller can be used as PID controller for various control tasks (e.g. as dancer position
controller, tension controller or pressure controller).
• The process controller is provided with the following functions:
• Adjustable control algorithm (P, PI, PID)
• Ramp function generator for preventing setpoint step-changes at the input
• Limitation of the controller output
• Factorisation of the output signal
• Vp adaptation
• Integral action component can be switched off
• Comparison function "Actual value = setpoint"
• In the Lenze setting, the process controller is deactivated.
• The process controller is activated by selecting the operating mode in C00242.
• Configuration parameters serve to link the inputs of the process controller to the required
process signals.
/$B1&WUO
E6HW(T$FW
E,2II
Q$FWBD
E,Q$FW
E(QDEOH,QIOXHQFH5DPS
Q,QIOXHQFHBD
Q2XWBD
Q16HWBD
Q6HWBD
Q$GDSWBD
&
& &
&
&
&
&
&
& 7Q
& 9S
& .G
___
_
_
___
&
___
_
Q,6HWBD
&
Q3,'2XWBD
Q3,'2XWBD
Q,QIOXHQFH2XWBD
E,6HW
/B3&75/B
&
E3,'2II
&
Q3,'9S$GDSWBD
Q3,'6HW9DOXHBD
Q3,'$FW9DOXHBD
E3,',2II
E3,'(QDEOH
,QIOXHQFH5DPS
Q3,',QIOXHQFHBD
&
&
&
&
&
&
