5 Before commissioning
5.1 Selection of the appropriate commissioning tool
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Tip!
The Engineering tools »EASY Starter« and »Engineer StateLevel« are provided free of charge
in the internet:
http://www.Lenze.com  Download  Software downloads
For communication between PC and controller, the USB diagnostic adapter can be used for
instance (see the following accessories overview).

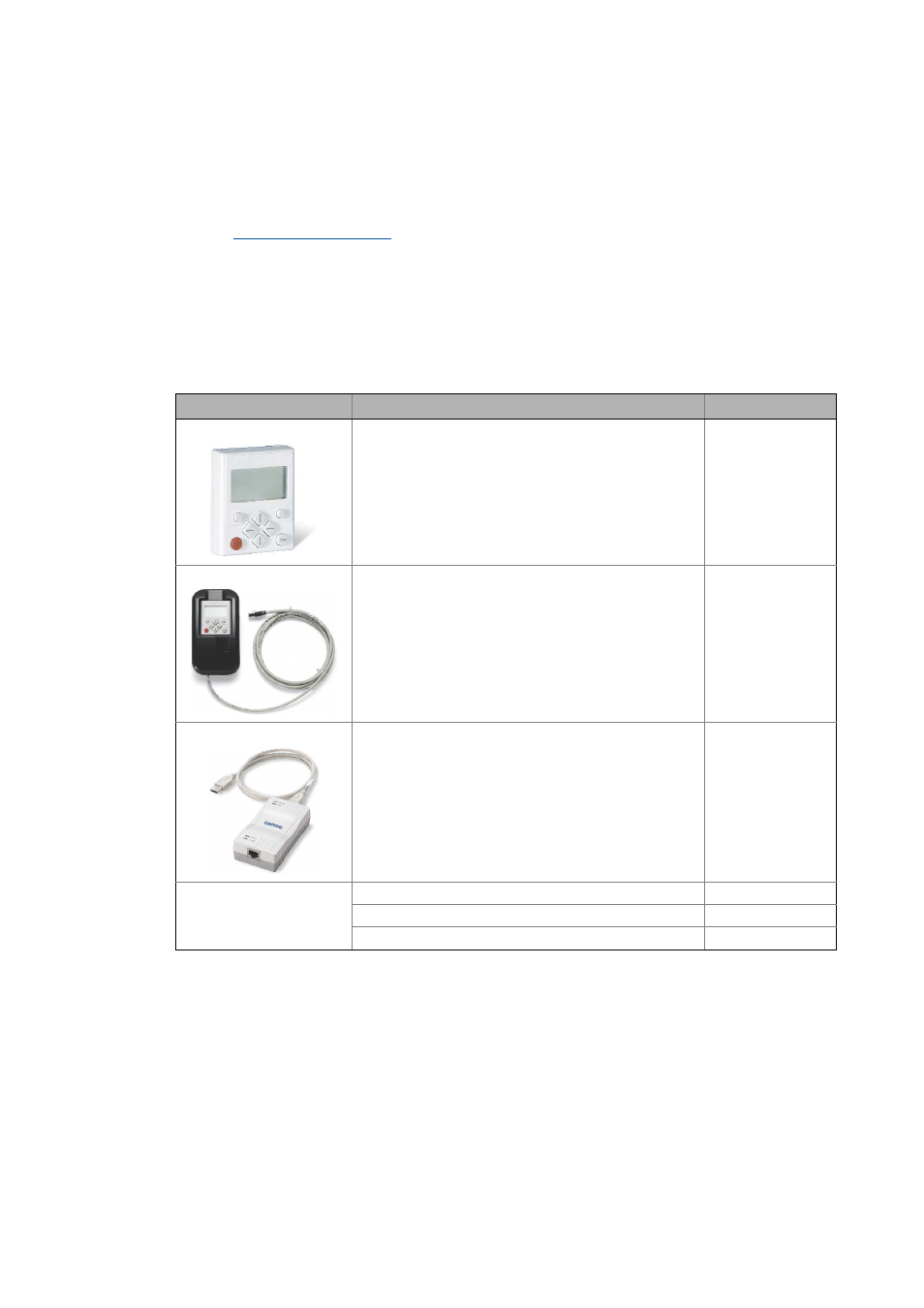

Accessories for commissioning
Version Features Product key
Keypad X400 • Menu navigation
• Backlighted graphic display for comfortably representing
information
• 4 navigation keys, 2 context-sensitive keys
• Adjustable RUN/STOP function
• Hot-plug capable
• Can be used for L-force Inverter Drives 8400 and Servo
Drives 9400
EZAEBK1001
Diagnosis terminal X400 • Keypad X400 in a robust housing
• Also suitable for installation into the control cabinet door
• incl. 2.5 m cable
• Enclosure IP20, in case of front installation in control
cabinet IP65
EZAEBK2001
USB diagnostic adapter • Input-side voltage supply via USB connection from PC
• Output-side voltage supply via the diagnostic interface of
the controller
• Diagnostic LED
• Electrical isolation of PC and controller
• Hot-plug capable
E94AZCUS
Connecting cable for
USB diagnostic adapter
2.5 m length EWL0070
5 m length EWL0071
10 m length EWL0072
