8 Adapting the application individually
8.2 Activating additional functions in the signal flow
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

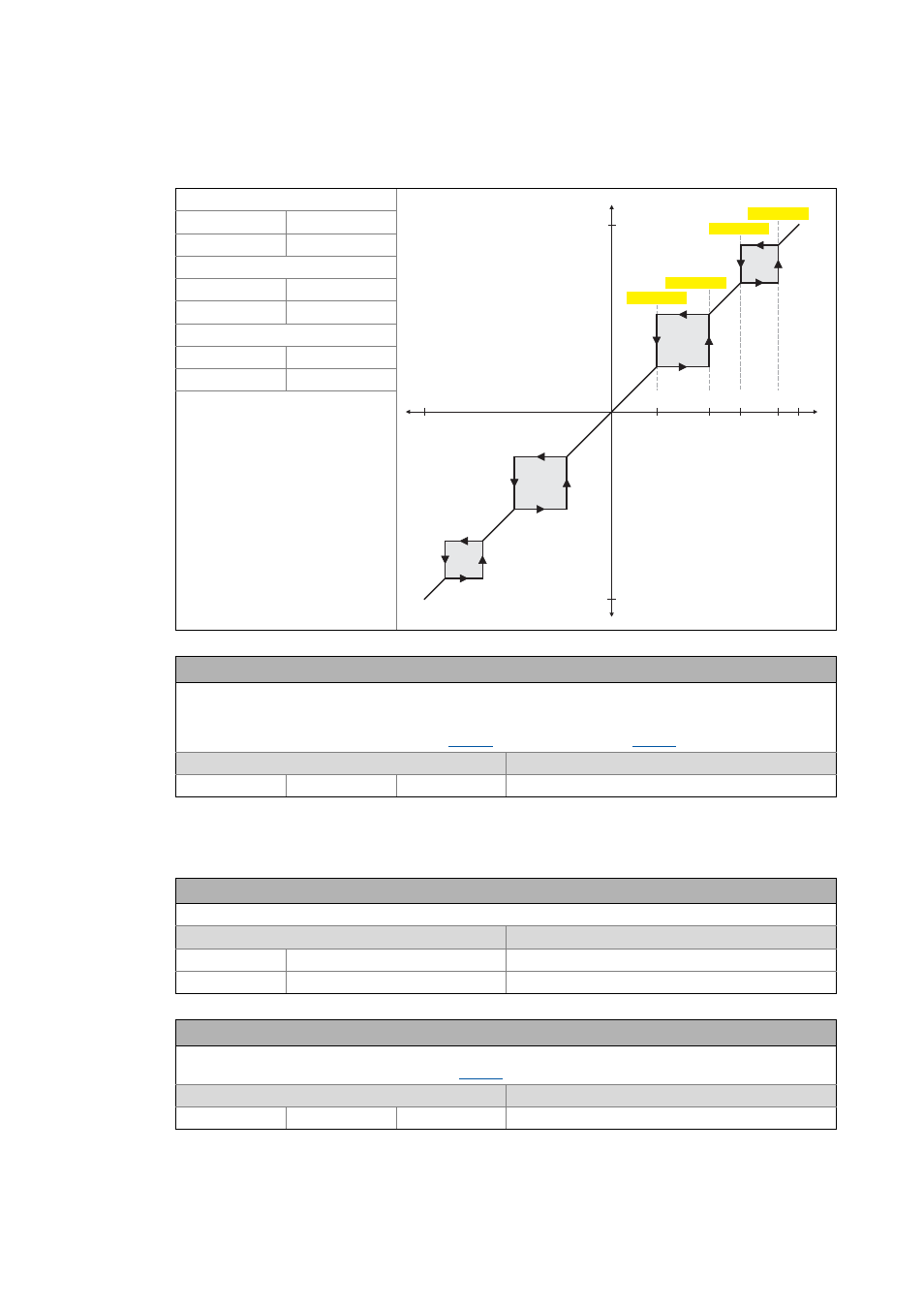

Example: Parameter setting of two blocking zones
C02610/2
8.2.3 Ramp smoothing
C00134
C00182
Blocking zone 1 ():
C00633/1
48.00 %
C00632/1 104.00 %
Blocking zone 2 ():
C00633/2
138.00 %
C00632/2 178.00 %
Blocking zone 3 (deactivated):
C00633/3
0.00 %
C00632/3 0.00 %
• The parameterised blocking zones
have the same effect on negative
input signals.
• A blocking zone is deactivated by
entering identical limit values (in
our example: Blocking zone 3).
• If blocking zones overlap, the
lowest and highest value of the
overlapping zones form a new
zone.
• If two blocking zones abut (e.g.
20 ... 30 % and 30 ... 40 %), the
limit value between the two
zones (in this example 30 %) is
also passed through.
Output [%]
Input [%]
1
0
199.99
-199.99
-199.99 199.99
C00632/1
C00633/1
48 138
0
1
104 178
C00632/2
C00633/2
MCK: Ramp time synchr. setpoint
Time for synchronisation ramps between setpoint jumps occurring through the exceedance of minimum and
maximum speed setpoint limit ranges.
Note:
Adapt this ramp time to the acceleration time ( C00012 ) and deceleration time ( C00013 ) of the main setpoint.
Setting range (min. value | unit | max. value) Lenze setting
0.000 s 999.999 2.000 s
Ramp smoothing main setpoint
Configuration of the ramp smoothing for the main setpoint
Selection list
(Lenze setting printed in bold) Info
0 Off Ramp rounding deactivated
1 PT1 behaviour Ramp rounding with PT1 behaviour
S-ramp time PT1
PT1 S-ramp time for the main setpoint ramp function generator
• Only effective with activated ramp rounding ( C00134 = "1").
Setting range
(min. value | unit | max. value)
Lenze setting
0.01 s 50.00 20.00 s
