8 Adapting the application individually
8.3 Implementing more additional functions in the signal flow
72
Lenze · 8400 StateLine · Operating instructions · from Firmware V06.00 · DMS 1.2 EN · 12/2012 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.3.4 Parameter change-over
For up to 32 freely selectable parameters, the basic function "parameter change-over" provides a
change-over between four sets with different parameter values.
• The value set to be used is selected binary-coded via the selection inputs bSelectWriteValue_1
and bSelectWriteValue_2 of the SB LS_WriteParamList.
• The writing of the parameter list is activated by a FALSE/TRUE edge at the bExecute control
input.
In the following example, the control inputs of the parameter change-over are linked to the free
parameters C00470/1...3 by parameterising the respective configuration parameters (C00621/x):

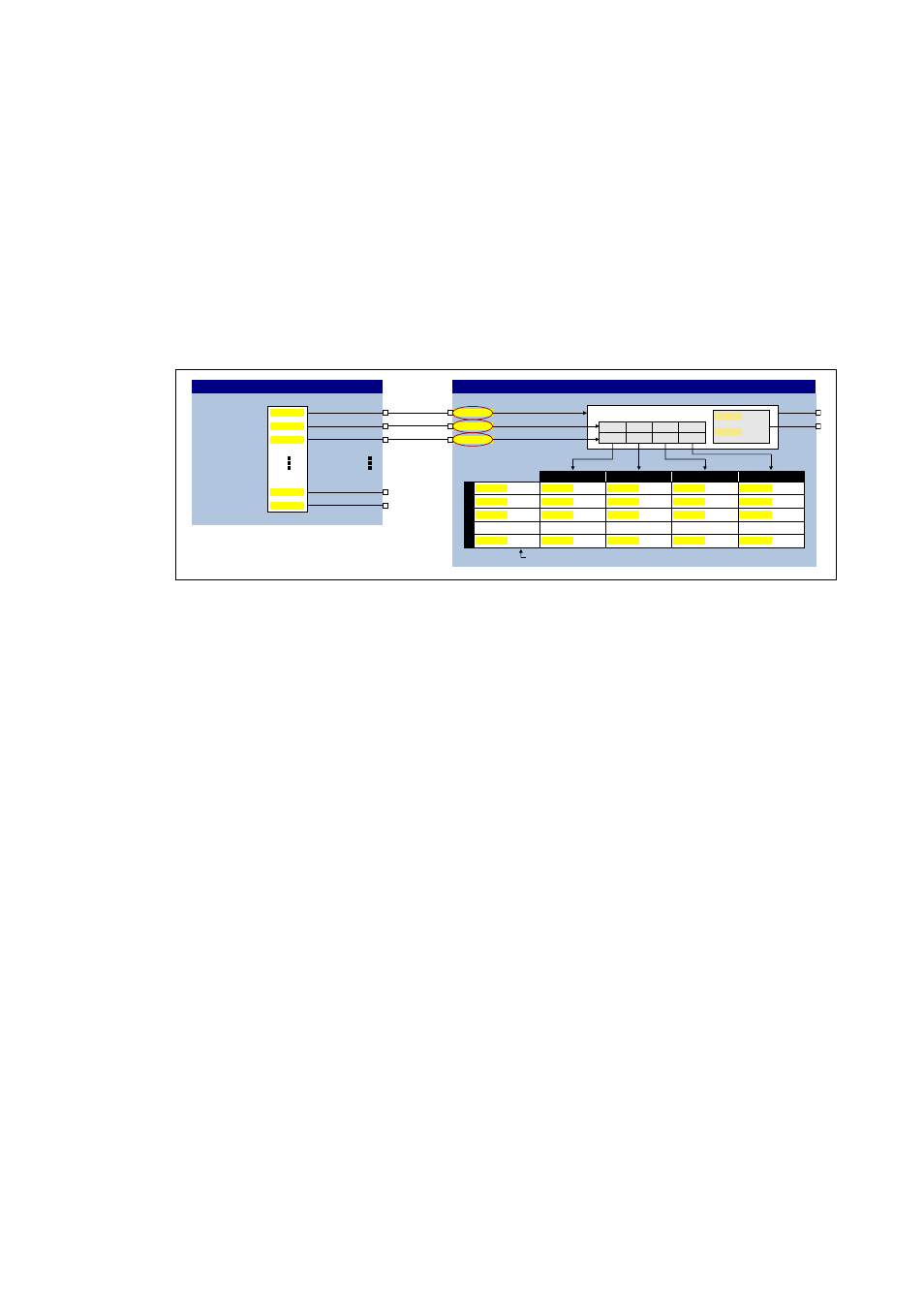

[8-2] Example: Linking the control inputs of the parameter change-over to "free" parameters
