6 Commissioning
6.2 Quick commissioning with the keypad
30
Lenze · 8400 StateLine · Operating instructions · from Firmware V06.00 · DMS 1.2 EN · 12/2012 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6. For keypad control instead of terminal control:
7. Save parameter settings safe against mains failure.
• Unless the settings have been changed explicitly in the integrated memory module, the
executed parameter changes will get lost after mains switching of the controller.
• Using the keypad, you can press function key  to save the parameter settings.
8. Enable controller and select speed setpoint.
For this purpose, observe the following segments!
Enable controller
If the controller's status is "SwitchedOn", (the green LED "DRV-RDY" flashes every second):
• Enable controller: Set terminal X4/RFR to HIGH level.
• Unless another source is active for controller inhibit, the controller switches from
"SwitchedOn" to "OperationEnabled" (the green LED "DRV-RDY" is permanently on).
• Now the drive follows the setpoint selection (see the following segment).
• The actual speed value is displayed in C00051.
• Inhibit controller again: Set terminal X4/RFR to LOW level.

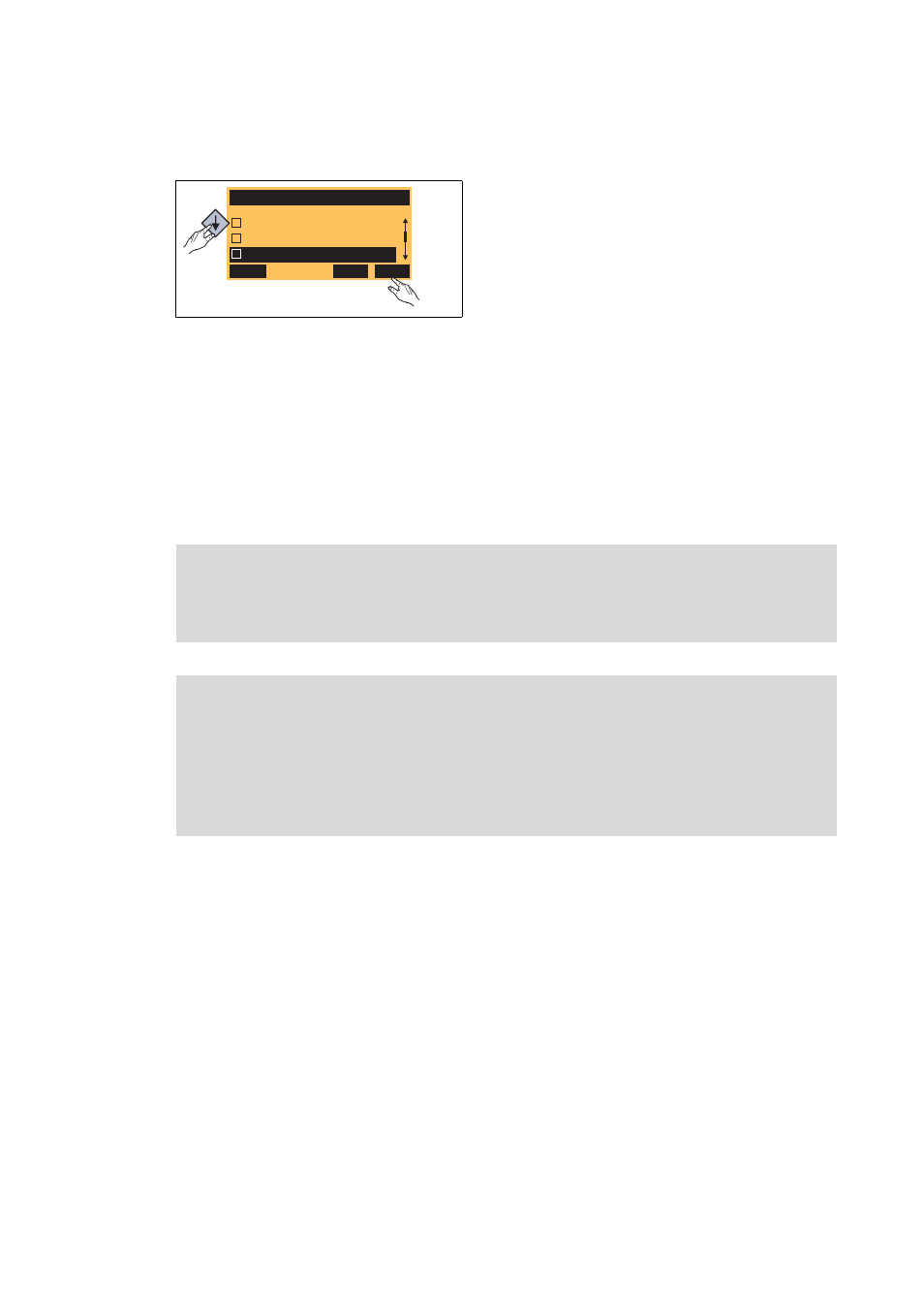

• Navigate to the parameter C00007
(for general procedure with keypad see step 5).
• Set the "20 keypad" selection.

Stop!
Before stipulating a speed setpoint, check whether the brake in the form of a holding
brake on the motor shaft has been released!

Note!
If the controller is enabled at mains power-up. the controller remains in the
"ReadyToSwitchOn" status when being in the Lenze setting (the green LED "DRV-RDY"
flashes twice approx. every 1.25 seconds).
To be able to change to the "SwitchedOn" status, the controller enable must be
deactivated first: set terminal X4/RFR to LOW level.
Control mode
ESC
20 Keypad
16 Terminals 16
14 Terminals 11
CINH OK
C00007
