5 Before commissioning
5.2 General notes on parameters
16
Lenze · 8400 StateLine · Operating instructions · from Firmware V06.00 · DMS 1.2 EN · 12/2012 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
General operation

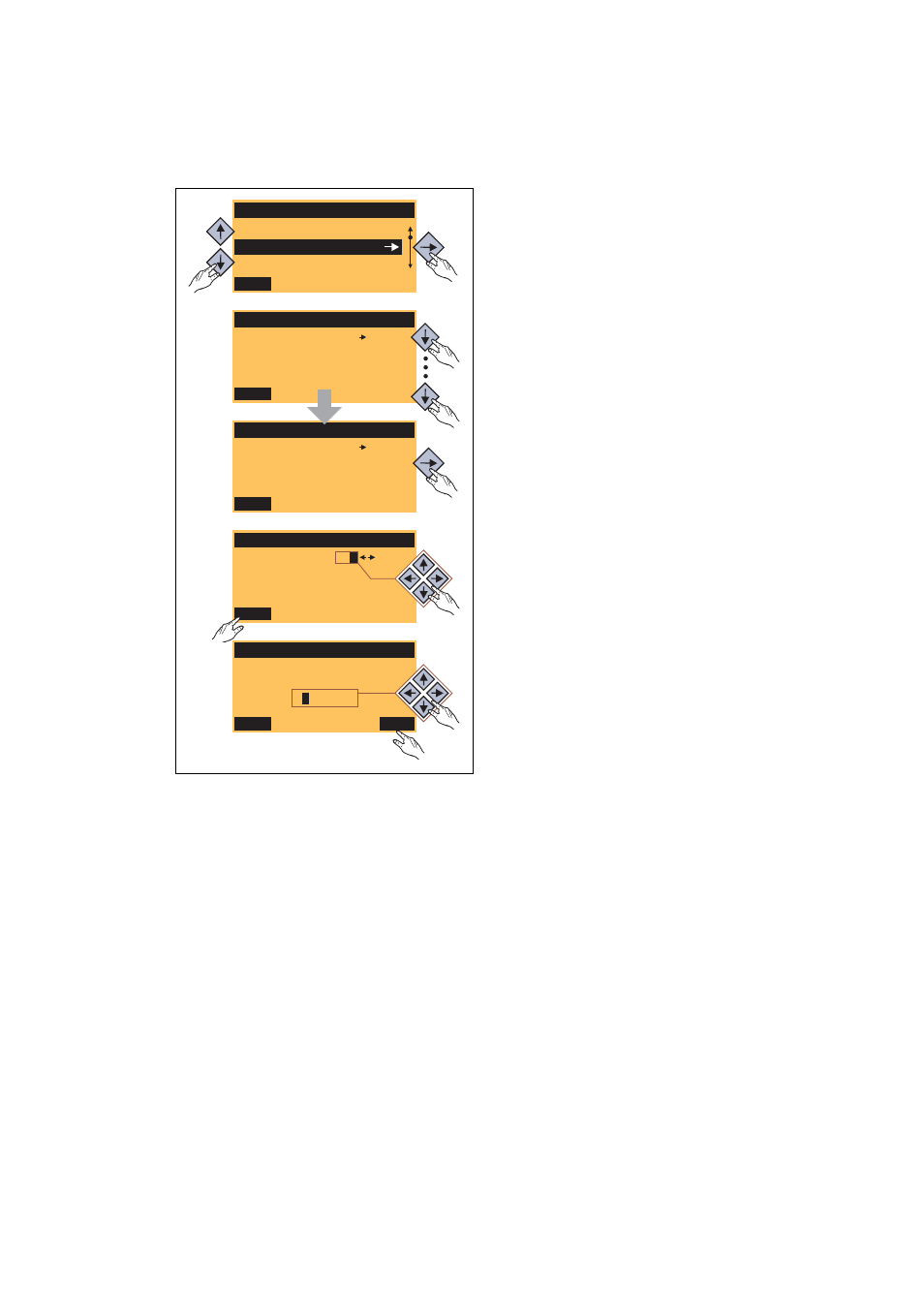

[5-1] Example: Change parameter with the keypad
1. Use the / navigation keys to select the
desired menu.
• Use the / navigation keys to reach a
higher/lower menu level.
• Use the  function key to return to the
main menu.
2. Use the / navigation keys to select the
parameter to be set within a submenu.
3. In order to select another subcode in case of a
parameter with subcodes:
• Press the navigation key  to change tot he
editing mode for the subcode.
• Use the navigation keys to set the desired
subcode.
4. Use the  function key to switch over to the
editing mode.
5. Use the navigation keys to set the desired value.
6. Use the
 function key to accept the change
and to leave the editing mode.
• Use the  function key to leave the editing
mode without accepting the change.
Load Lenze setting
C00002/001
Off / Finished
EDIT
Par1 8400 StateLine C
SAVE
Code list
Go To Param
USER - Menu
Fixed setpoint 1
C00039/001
40.00 %
EDIT
Fixed setpoint 2
60.00 %
EDIT
C00039/00 2
Fixed setpoint 2
C00039/002
ESC
6 0.00 %
OK
1.
2.
3.
5.
4.
6.
