4-8 F-721-0513 Edition
OPERATION AND MAINTENANCE
Leveling (Side to Side)
1. Leveling the 2131 Wing Coulter Chisel side-to-side
involves leveling the wing frame to the center frame.
The unit should be level side-to-side when operating
in the field.
2. To level the unit, verify that all tires are properly
inflated. With the implement unfolded, raise the unit
to fully extend the lift cylinders. Continue to hold the
tractor lever 30-60 seconds to insure that the
cylinders are fully extended and the rephasing lift
system has been purged of air. Lower the unit until
the coulter points are approximately 1” off the
ground. On the center frame, measure the distance
from the walking beam spindle to the bottom side of
the frame (See Figure 4-8.) Set wing frames 5/8”
higher than the center frame. Adjusting the anchor at
the base end of each wing lift cylinder sets wing
frame height (See Figure 4-9.)

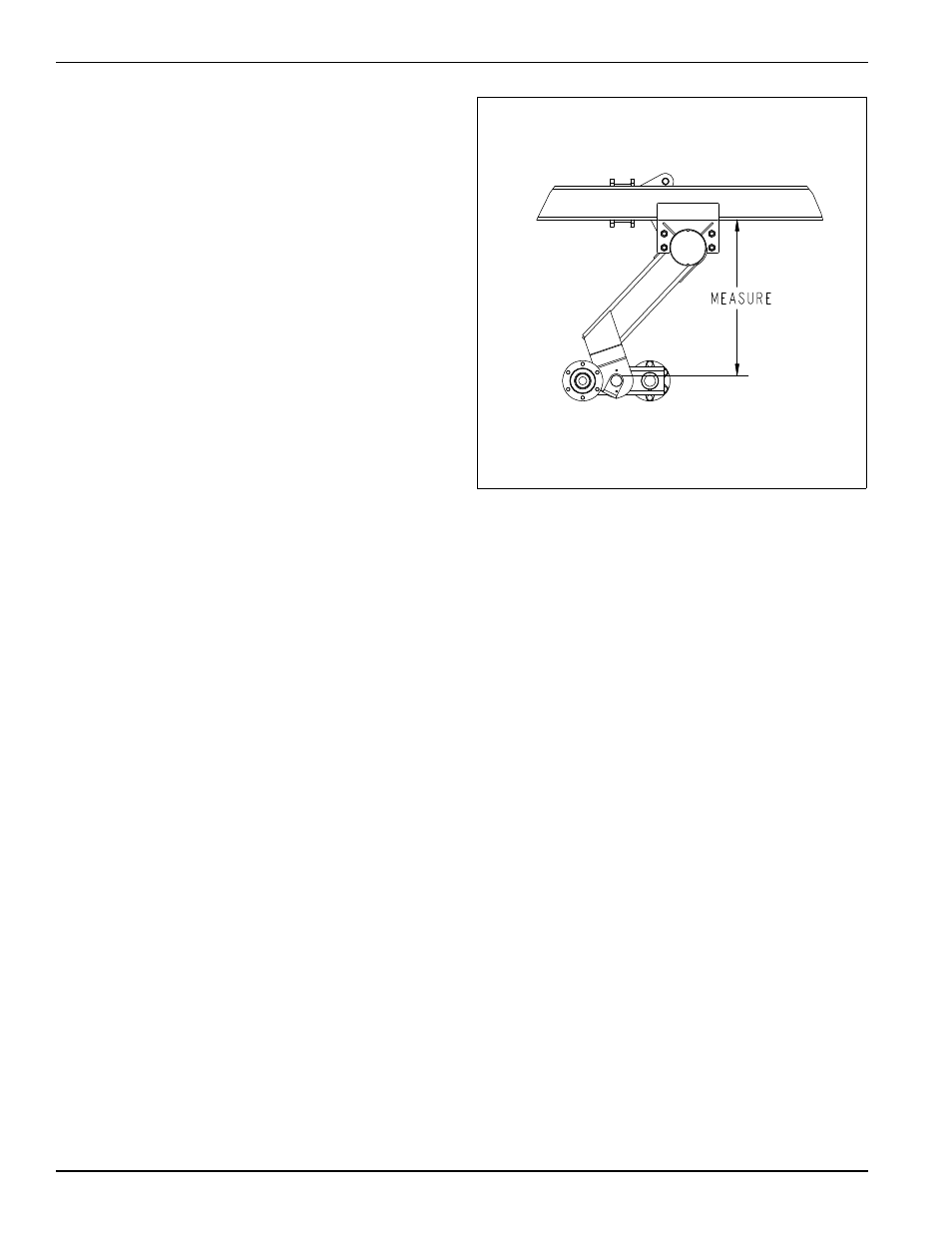

Figure 4-8: Leveling from Side to Side
