ASSEMBLY INSTRUCTIONS
3-33

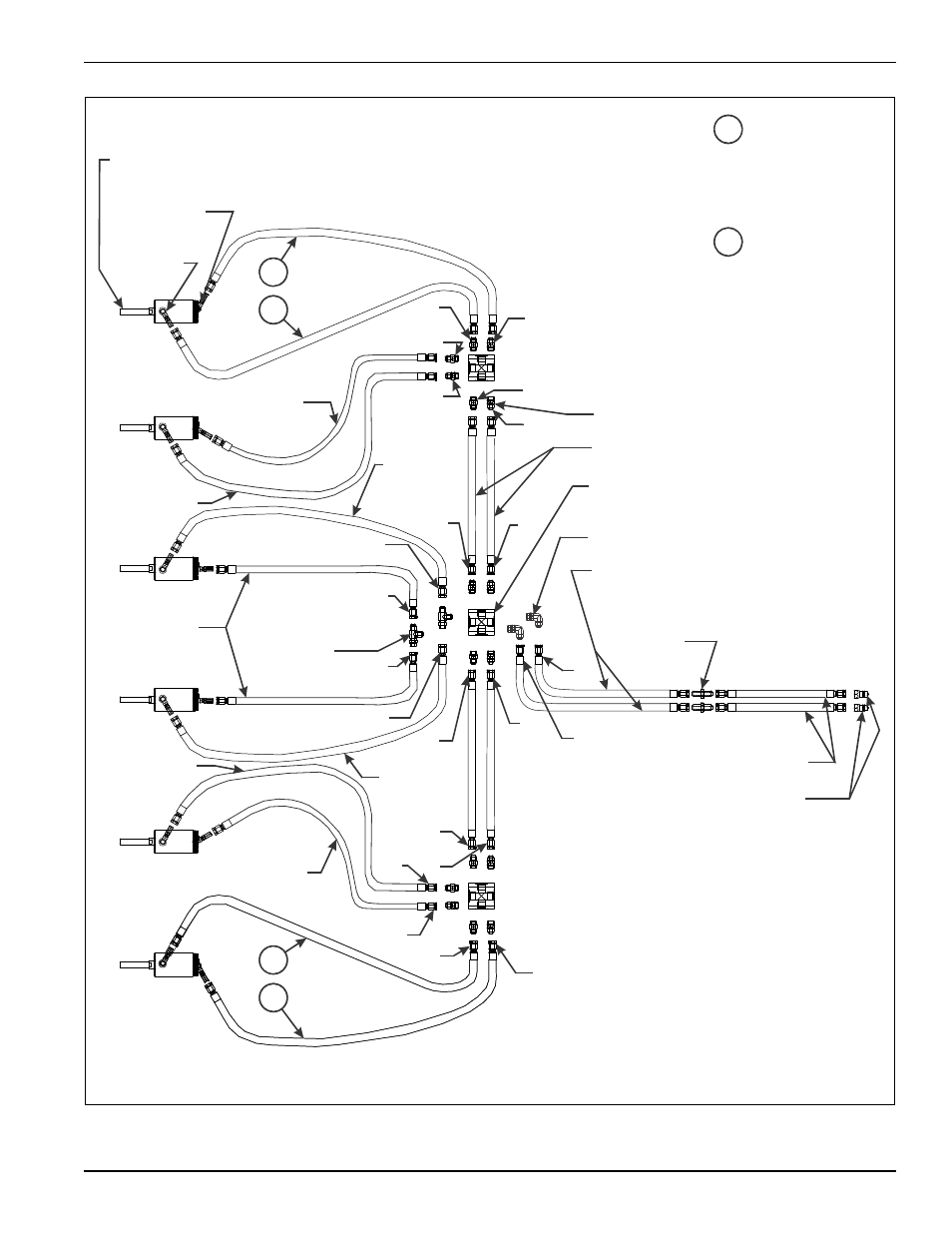

Figure 3-26: Chopper Reel Hydraulic Installation (Option)
m175816
(L)
(M)
(N)
(K)
(P)
(O)
(C) (D)
(A)
(B)
(H)
(G)
(S)
(X)
(T)
(V)
(U)
(W)
(E-1)
(E-2)
(F-2)
(F-1)
LT.
RT.
2-1/2 X 1-1/2
HYDRAULIC CYLINDER
45 ADAPTER
1/4 X 46
HOSE
ASSEMBLY
1/4 X 94 HOSE
ASSEMBLY
1/4 X 46
HOSE
ASSEMBLY
1/4 X 40 HOSE ASSEMBLY
90
ADAPTER
1/4 X 40 HOSE ASSEMBLY
A
B
B
A
1/4 X 102
HOSE
ASSEMBLY
1/4 X 102
HOSE
ASSEMBLY
ADAPTER
TEE
HOSE A
B
2130-17/19
2130-21
2130-23
2130-25 1/4 X 75 HOSE ASSEMBLY
1/4 X 86 HOSE ASSEMBLY
1/4 X 104 HOSE ASSEMBLY
1/4 X 130 HOSE ASSEMBLY
2130-17/19
2130-21
2130-23
2130-25 1/4 X 80 HOSE ASSEMBLY
1/4 X 90 HOSE ASSEMBLY
1/4 X 108 HOSE ASSEMBLY
1/4 X 137 HOSE ASSEMBLY
HOSE
ADAPTER
1/4 X 90 HOSE ASSEMBLY
8 PORT HYDRAULIC
MANIFOLD
90 ELBOW
3/8 X 160 HOSE ASSEMBLY
HYDRAULIC
UNION STRAIGHT
ADAPTER
3/8 X 252 HOSE ASSEMBLY
1/4 X 90 HOSE ASSEMBLY
NOTE: WINGS WITH 3 ARMS, THE
CENTER ARM REMAINS A
STANDARD SPRING SET-UP.
