Landoll 2131 Wing Coulter Chisel - Manual (Page 59)

ASSEMBLY INSTRUCTIONS
3-23

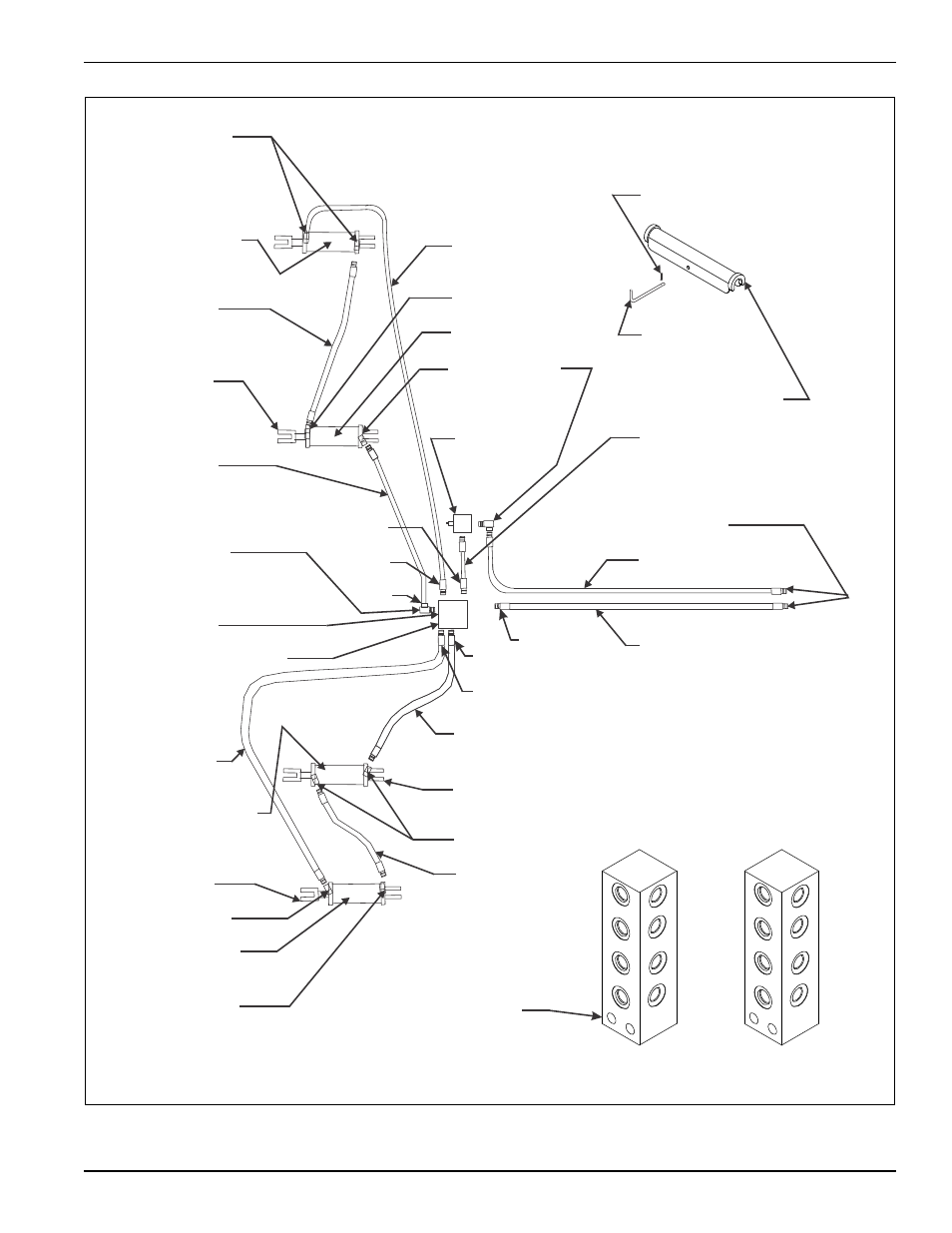

Figure 3-15: Wheel Lift Hydraulic Installation (2131-17 & 2131-19)
2131 17-19 lift op
SLAVE
MASTER
MASTER
SLAVE
(A)
(B)
(C)
(D)
(I)
(J)
(K)
(L)
(M)
(N)
(O)
(P)
(E)
(F)
(G)
(H) FRONT
OF MACHINE
PLUG PORTS B,G,H,K,L,&M
(A)
(J)
(I)
(F)
(E)
(N)
90 ADAPTER
4 X 16 REPHASE
HYDRAULIC
CYLINDER
SLAVE DECAL
3/8 X 120 HOSE
ASSEMBLY
4-1/2 X 16 REPHASE
HYDRAULIC
CYLINDER
3/8 X 96 HOSE
ASSEMBLY
90 ADAPTER
1/2-13 X 3-1/2 HEX HEAD
CAP SCREW AND HEX
LOCK NUT
16 PORT MANIFOLD
3/8 X 128
HOSE
ASSEMBLY
MASTER DECAL
4 X 16 REPHASE
HYDRAULIC
CYLINDER
90 ADAPTER
90
SLAVE DECAL
ADAPTER
1/8 HAIRPIN
L-PIN,
CYLINDER
STOP
2 X 16 LOCKOUT
1/2 X 31 HOSE
ASSEMBLY
1/2 240 HOSE
ASSEMBLY
1/2 210
3/4-16 MALE
COUPLER
X
X HOSE
ASSEMBLY
3/8 X 168 HOSE
ASSEMBLY
90 ADAPTER
MASTER DECAL
90 ADAPTER
LIMIT VALVE
3/8 X 64 HOSE
ASSEMBLY
4-1/2 X 16 REPHASE
HYDRAULIC CYLINDER
90 ADAPTER
3/8 X 120 HOSE
ASSEMBLY
