Landoll 2131 Wing Coulter Chisel - Manual (Page 38)

3-2 F-721-0513 Edition
ASSEMBLY INSTRUCTIONS

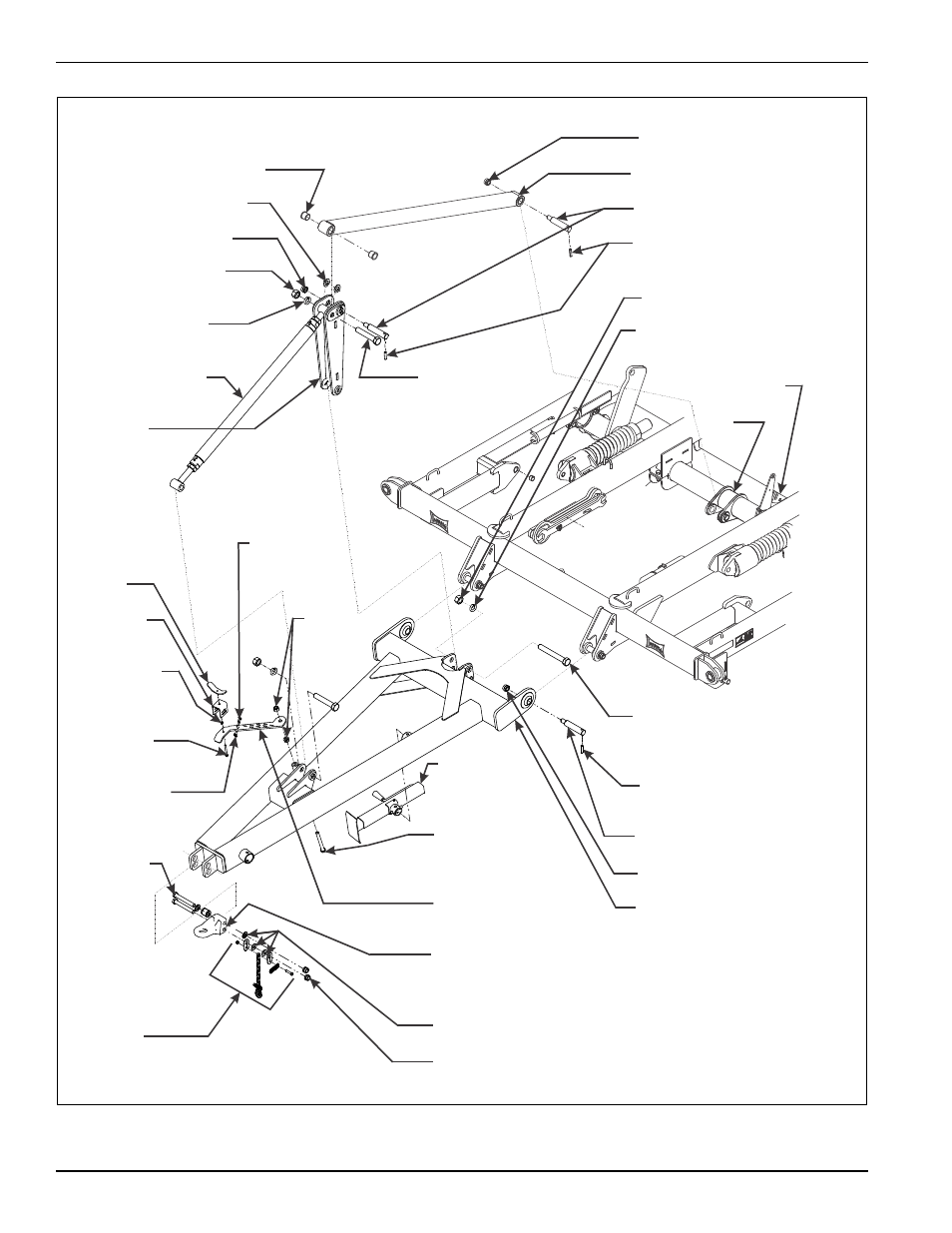

Figure 3-1: Hitch Installation (w/o Weights)
2131 hitch assy op
1-1/4 SLOTTED
LOCK WASHER
1-1/4-7 X 9-1/2
HEX HEAD CAP
SCREW
1-8 HEX LOCK NUT
LEVELER TUBE
HITCH PIN
1/2 X 2-1/4 GROOVED
ALLOY PIN
1-1/4 - 7 HEX NUT
1/2 X 2-1/4 GROOVED
ALLOY PIN
HITCH PIN
1-8 HEX LOCK NUT
HITCH WELDMENT
1-1/4 - 7 X
HEX HEAD
CAP SCREW 8
JACK
3/4-10 X 7
HEX HEAD CAP
SCREW
1-8 HEX LOCK NUT
HOSE HOLDER
BRACKET
HITCH RING
1N FLAT WASHER
FRAME
ASSEMBLY
LIFT
3/4-10
FLANGE
NUT
1-1/2 FLANGE BEARING
1-1/4N FLAT WASHER
1-8 HEX LOCK NUT
1-1/4 - 7 HEX NUT
1-1/4 SLOTTED
LOCK WASHER
HITCH RADIUS
ROD
LEVELER
TOWER
WING
NUT
CLAMP
ASSEMBLY
3/8-16
HEX NUT
3/8-16 X 3-1/2
ALL THREAD
SCREW
1/4-20 HEX
LOCK NUT
1-8 X 7-1/2 HEX
HEAD CAP
SCREW
SAFETY
CHAIN
1/4-20 X 1
HEX HEAD
CAP SCREW
