Landoll 2131 Wing Coulter Chisel - Manual (Page 72)

3-36 F-721-0513 Edition
ASSEMBLY INSTRUCTIONS
Hydraulic Tubular Mount
Chopper Reel Installation
1. Install hydraulic chopper reels in the same manner
described for standard tubular mount chopper reels
(See “Standard Tubular Mount Chopper Reel
Installation (Option)” on page 3-32.)
2. Install hose mount plates onto rear tube of frame and
wing frame using 6-11/16 x 5-1/2 x 5/8-11 u-bolts and
flange head serrated nuts (See Figure 3-28.)
3. Install hose mount tubes to top of hose mount plates
using 2-3/4 x 4 x 5/8-11 u-bolts and flange head
serrated nuts.
4. Install 8 port manifold assembly to hose mount and
wing hose mount tubes using 1/2-13 x 4 hex head
cap screws and hex lock nuts. Orient manifold as
shown in Figures 3-26 and 3-27.
5. Install fittings and route hoses as shown in Figures
3-26, 3-28, 3-29, and 3-30.
NOTE
On wings with three arms, the center arm will be a
standard spring setup.

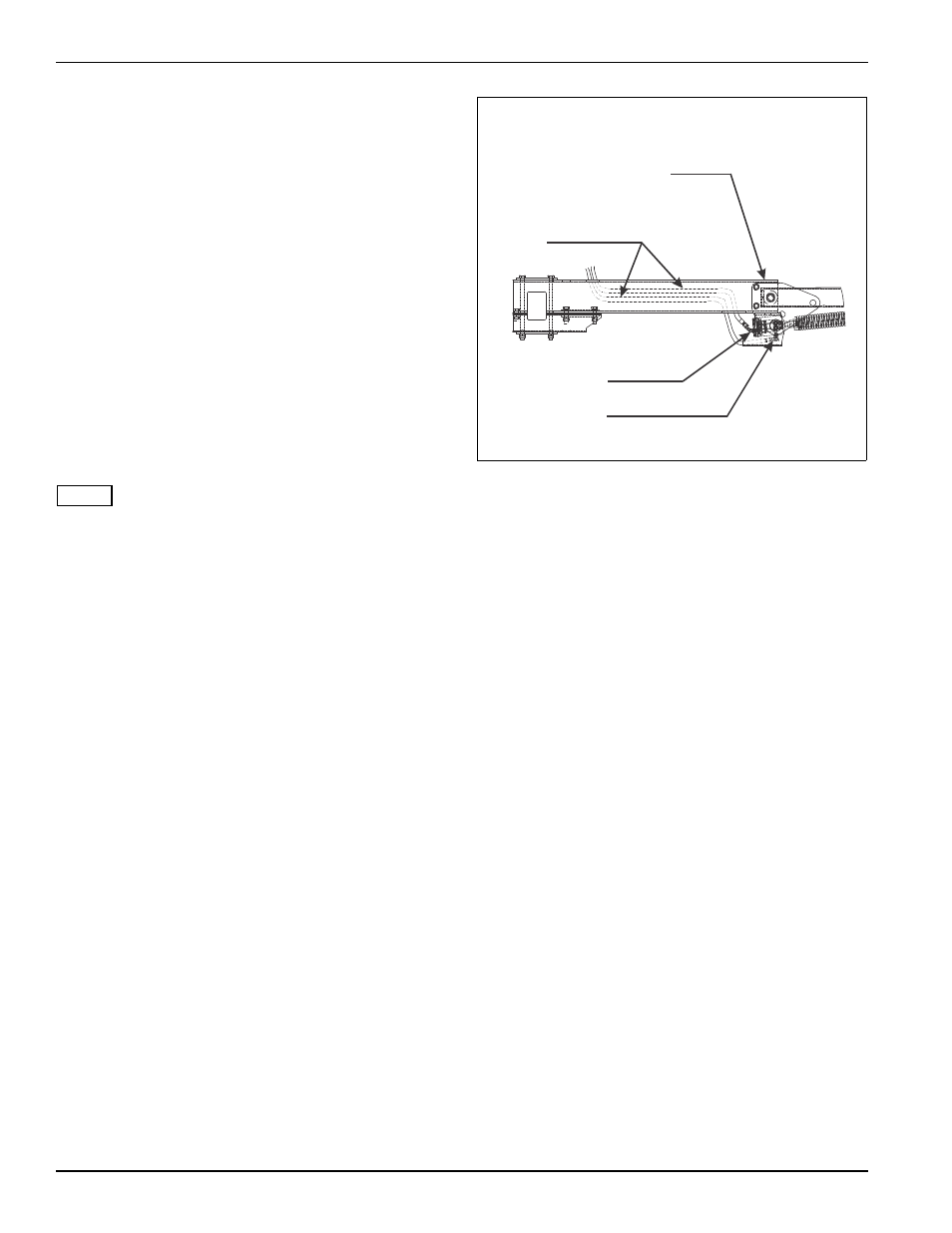

Figure 3-30: Hose Routing Inside Chopper Reel Arm
HYDRAULIC TUBULAR
MOUNT CHOPPER
REEL ARM ASSEMBLY
HOSES TO GO INSIDE
OF HARROW ARM
TUBE
45° ADAPTER
90° ADAPTER
chopper reel hose routing
