ASSEMBLY INSTRUCTIONS
3-3

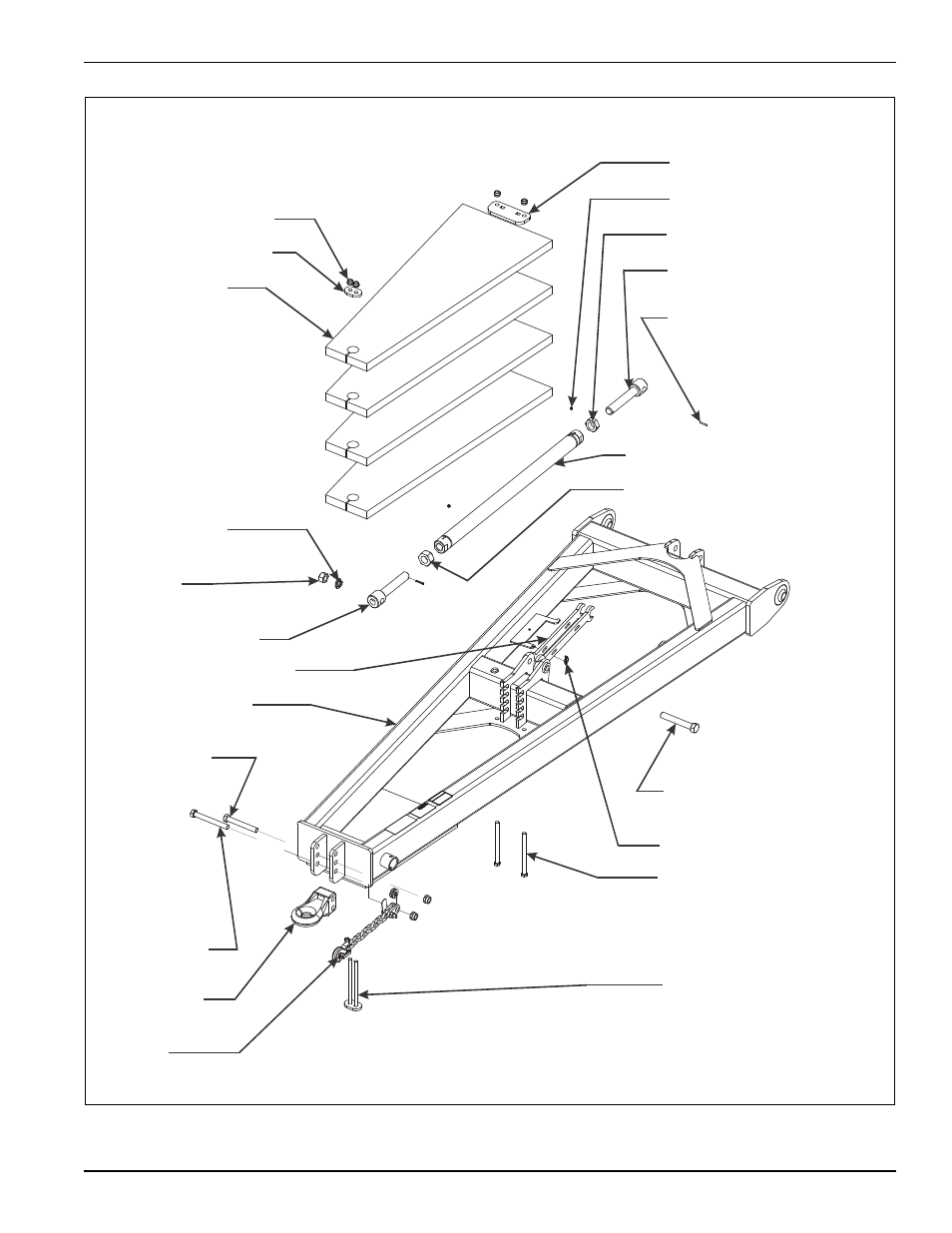

Figure 3-2: Hitch Installation (w/ Weights)
hitch assy w weights
3/4-10 HEX LOCK NUT
WEIGHT LOCK PLATE
HITCH WEIGHT
1-1/4 SLOTTED
LOCK WASHER
1-1/4-7
HEX NUT
1-8 X 7-1/2 HITCH
CLEVIS BOLT
1-8 X 8-1/2
HEX HEAD
CAP SCREW
CAT IV
HITCH RING
41,000# SAFETY
CHAIN
RH RADIUS ROD
SCREW ASSEMBLY
ADJUSTMENT WRENCH
HITCH WELDMENT
QUICK HITCH PIN
1-1/4-7 X 8 HEX HEAD
CAP SCREW
3/4-10 X 4-1/2 (1 WEIGHT)
3/4-10 X 6-1/2 (2 WEIGHTS)
3/4-10 X 8-1/2 (3 WEIGHTS)
3/4-10 X 10-1/2 (4 WEIGHTS)
HEX HEAD CAP SCREW
3/4-10 X 6 (1 WEIGHT)
3/4-10 X 8 (2 WEIGHTS)
3/4-10 X 10 (3 WEIGHTS)
3/4-10 X 12 (4 WEIGHTS)
HEX HEAD CAP SCREW
HITCH CLAMP
1/4 ZERK FITTING
1-3/4-5 LH HEX JAM NUT
LH RADIUS ROD SCREW
ASSEMBLY
1/4 X 1-3/4 ROLL PIN
HITCH RADIUS ROD
1-3/4-5 HEX JAM NUT
