ASSEMBLY INSTRUCTIONS

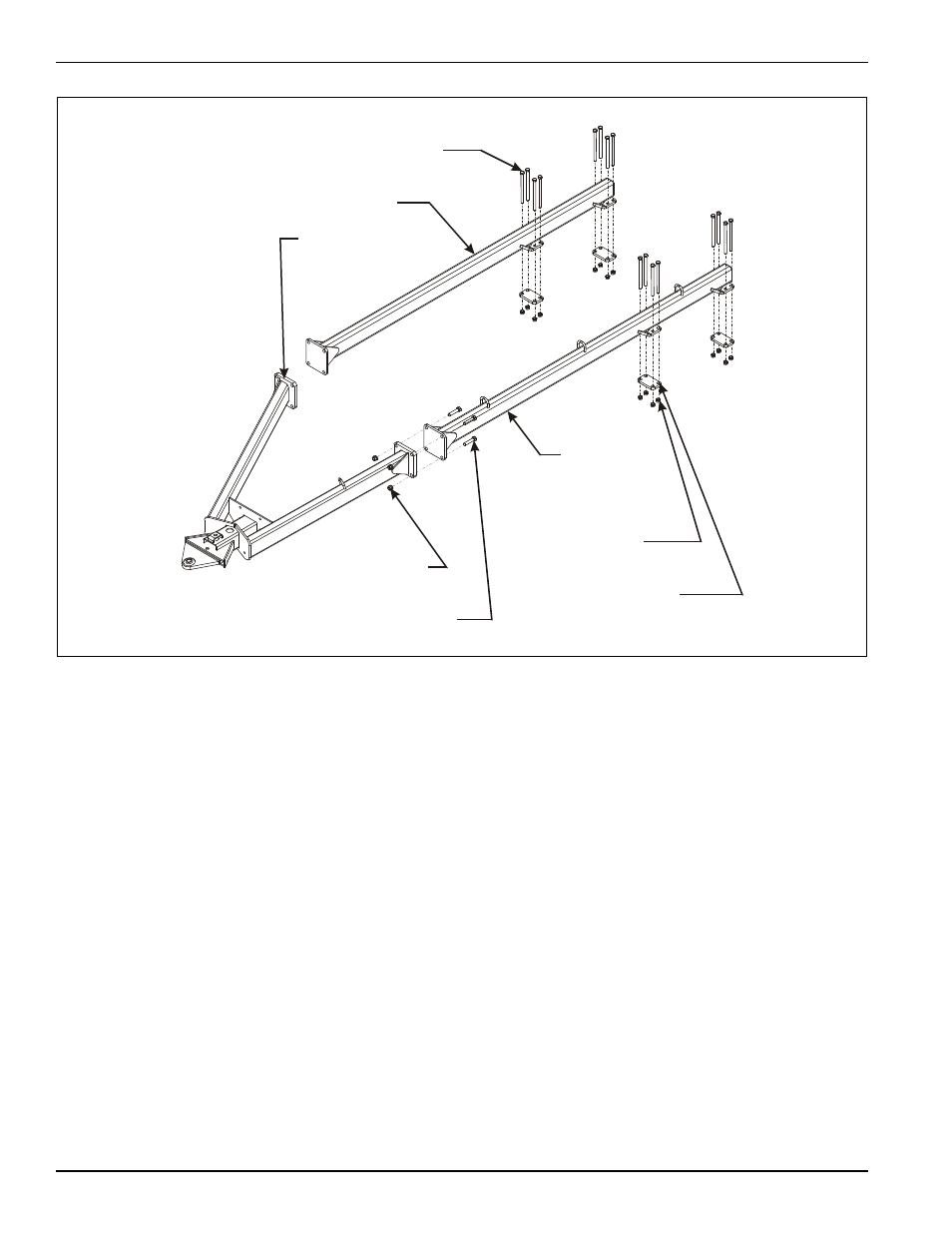

Figure 3-22: Rear Tow Hitch Installation (Option)
Rear Tow Hitch Installation
(Option)
1. Attach rear tow hitch to the rear tow hitch arms using
3/4-10 x 2-1/2 hex head cap screws and hex lock
nuts.
2. Attach the rear tow hitch assembly to the rear bars of
the center frame using rear tow hitch clamp plates,
5/8-11 x 9-1/2 hex head cap screws, and hex lock
nuts (See Figure 3-22.) The rear tow hitch assembly
should be centered on the back bars of the center
frame (See Figure 3-21.)
m148332 op
5/8-11 X 9-1/2 HEX HEAD
CAP SCREW GR5
REAR
HITCH ARM
REAR TOW
HITCH
3/4-10 HEX
LOCK NUT GRB
3/4-10 X 2-1/2 HEX
HEAD CAP SCREW
TOW
ASSEMBLY
REAR
HITCH ARM W/
HOSE LOOPS
REAR HITCH
CLAMP PLATE
TOW
5/8-11 HEX LOCK
NUT GRB
