ITEM
PART NO.
QTY.
(Per Cylinder)
DESCRIPTION
1
GD11950
1
Clevis
2
GD12501
1
Rod
3
GD11999
1
Gland
4
A6524
1
Barrel
(Non-Stock Item)
5
G10939
G10108
1
1
Hex Head Cap Screw, ⅜"-16 x 2¼"
Lock Nut, ⅜"-16
6
GD12502
1
Piston
7
GD27235
1
Nylon Lock Nut, 1"-14, Grade 8
A
GA8911
-
Cylinder Complete, 3" x 16" (Part Number Stamped On Barrel)
B
GR1526
-
Seal Kit, Includes: (1) Wear Ring, (1) T-Seal, (2) O-Rings, (1) BU Ring, (1) U-Cup, (1)
Wiper
CYL032(CYL14c)
ITEM
PART NO.
QTY.
DESCRIPTION
1
G10770
1
Internal Retaining Ring, 111∕16"
2
GD13170
1
Gland
3
GD13425
1
Rod
4
GD13172
1
Piston
5
GD27232
1
Nylon Lock Nut, ½"-20, Grade 8
6
D13426
1
Barrel
(Non-Stock Item)
7
GD13400
1
Tension Bushing, 1" x 2" Long
8
GD13173
1
End Cap
A
GA9559
-
Cylinder Complete, 1½" x 2½" (Part Number Stamped On Barrel)
B
GR1598
-
Seal Kit, Includes: (3) O-Rings, (2) BU Rings, (1) Rod Wiper, (1) T-Seal, (1) Bronze
Bushing, (1) Seal, (1) U-Cup

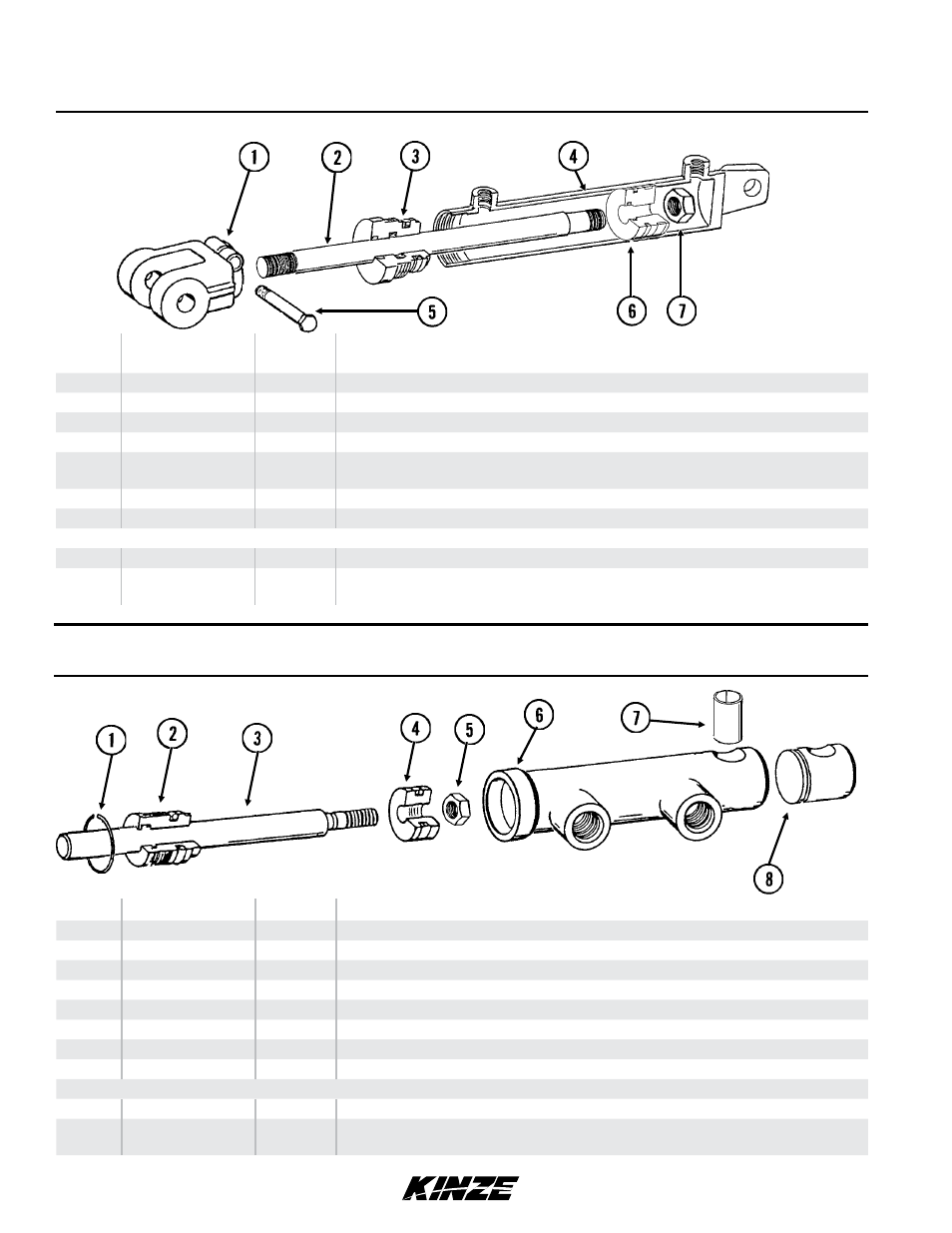

Rotation Cylinder
Transport Latch Cylinder, All Sizes
CYL035/CYL050(CYL9c)
