Kinze 3500 Lift and Rotate Planter Rev. 5/14 - Manual (Page 100)

VVB025(PT9a/TWL56)
ITEM PART NO. QTY. DESCRIPTION
1 *G6400-06
GR1045 4
-
Connector W/O-Ring, 9∕16"-18 Male JIC To O-Ring
O-Ring
2 GR1034
GR1035 2
-
Hex Socket Plug W/O-Ring
O-Ring
3 GR1032
GR1045 2
-
Port Adapter W/O-Ring
O-Ring
4 GR1033 1 Detent Spring
5 GR1036 2 Spring
6 GR1044 3 7∕16 " Check Ball
7 GR1043 2 ¼ " Steel Ball
8 --- 1 Valve Body (Non-Stock Item)
9 GR1047
GR1037 2
-
Hex Socket Plug W/O-Ring
O-Ring
10 --- - Spool (Non-Stock Item)
11 GR1042 2 Adjustment Screw
12 GR1048 2 Hex Jam Nut, ½"-20
13 GR1038 2 Needle
14 GR1039 2 Spring Pin
15 GR1046 2 Compression Spring
16 GR1040 2 O-Ring
17 GR1041 2 Teflon BU Ring
18 --- - See “Planter Hydraulic System” on page P99
A GA5552 - Valve Assembly Complete (Items 1-17)
B GA5572 - Flow Control Portion Only (Items 11-17)
*Not used.

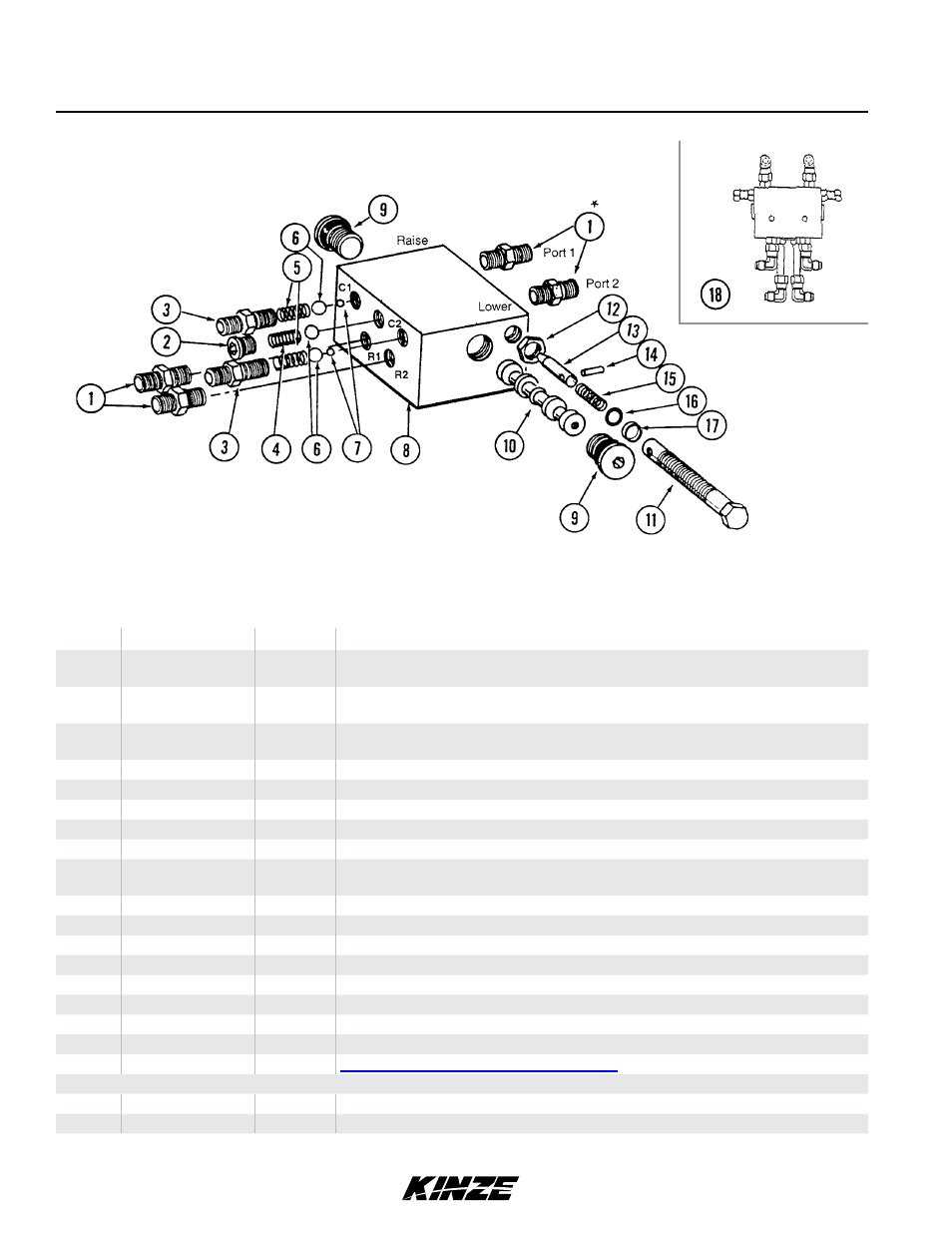

Row Marker Sequencing/Flow Control Valve
TM
M0240-02 Model 3500
P97 6/11
