Kinze 3500 Lift and Rotate Planter Rev. 5/14 - Manual (Page 146)

(TWL63ff)

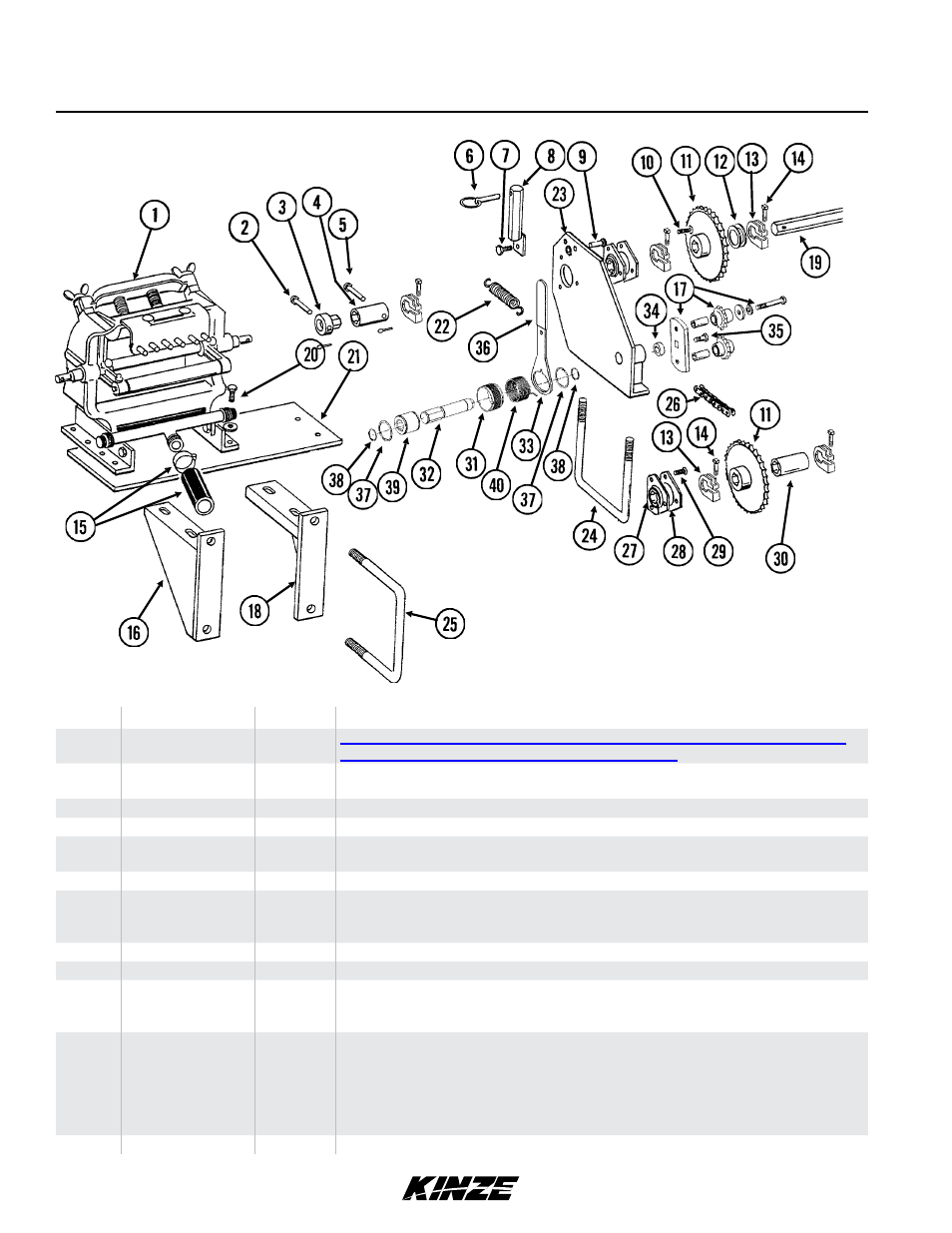

Liquid Fertilizer Piston Squeeze Pump Mounting Brackets and
Driveline
ITEM PART NO. QTY. DESCRIPTION
1 --- - See “Liquid Fertilizer Piston Squeeze Pump, 6 Row” on page P145 or See “Liquid
Fertilizer Piston Squeeze Pump, 8 Row” on page P147
2 G10821
G10455 1 Clevis Pin, 3⁄16'' x 2''
Cotter Pin, 1⁄16'' x ½''
3 GD7127 1 Shear Coupler
4 GD9048 1 Coupler, 2½"
5 G10558
G10456 1
1 Clevis Pin, 5∕16" x 1¾"
Cotter Pin, ⅛" x ¾"
6 GD2558 1 Lynch Pin, ¼"
7 G10037
G10228
G10102 1
1
1 Hex Head Cap Screw, ½"-13 x 1¼"
Lock Washer, ½"
Hex Nut, ½"-13
8 GA5229 1 Sprocket Storage Rod
9 G10478 1 Clevis Pin, 5∕16" x 1"
10 G10312
G10232
G10106 3
3
3 Carriage Bolt, 5∕16"-18 x ¾"
Lock Washer, 5∕16"
Hex Nut, 5∕16"-18
11 GA5105
GA5107
GA6513
GA5202
GA6514
GA6515 1
1
1
1
1
-
Sprocket, 15 Tooth
Sprocket, 19 Tooth
Sprocket, 32 Tooth
Sprocket, 34 Tooth
Sprocket, 46 Tooth
Sprocket, 62 Tooth (Optional)
12 G10233 2 Machine Bushing, 1½" x 1∕32", 10 Gauge
