Driveline – Kinze 3500 Lift and Rotate Planter Rev. 5/14 User Manual
Page 82
PTD033/PLA026/PTD016/PTD066(TWL54e)

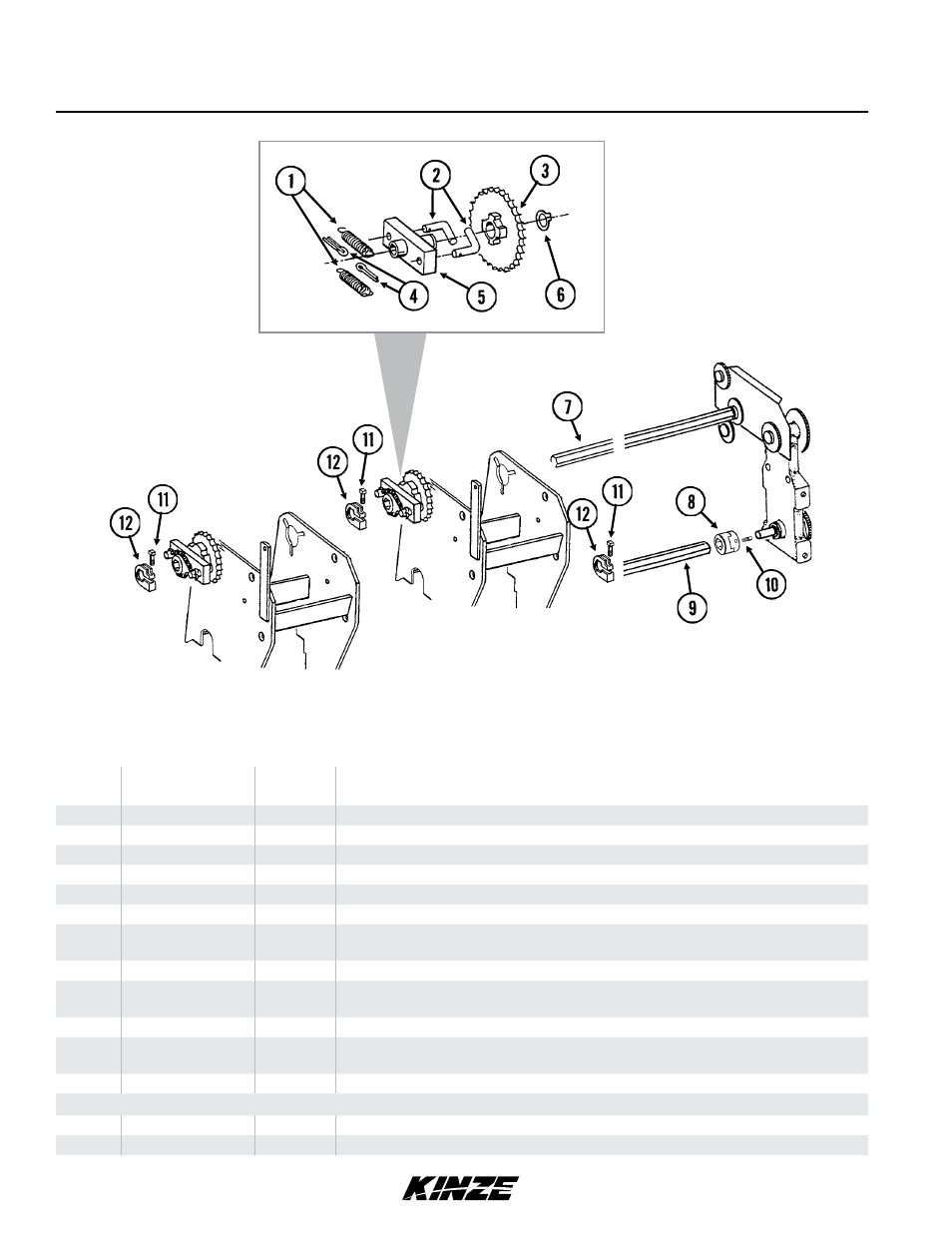

Driveline
ITEM
PART NO.
QTY.
(Per Planter)
DESCRIPTION
1
GD1256
4
Spring
2
GD1255
4
L-Pin
3
GA5165
2
Sprocket, 30 Tooth
4
G10453
4
Cotter Pin, 3∕16" x 1"
5
GA0378
2
Block And Hub Assembly
6
G10430
2
External Retaining Ring, 1¼"
7
GD9078
GD9077
-
-
Hex Shaft, ⅞" x 58" (4 Holes), 6 Row 30"
Hex Shaft, ⅞" x 98" (4 Holes), 8 Row 30"
8
GB0287
2
Coupler
9
GD0914-165
GD0914-225
-
-
Hex Shaft, ⅞" x 165" (No Holes), 6 Row 30"
Hex Shaft, ⅞" x 225" (No Holes), 8 Row 30"
10
G10131
4
Square Head Set Screw, 5∕16"-18 x ¾"
11
G10130
G10923
-
-
Square Head Machine Bolt, 5∕16"-18 x 1¾"
Flange Nut, 5∕16"-18, No Serration
12
GD11045
-
Lock Clamp
A
GA5164
-
Ratchet/Sprocket Assembly (Items 1-6)
B
G1K269
-
Lock Clamp Kit (Items 11 And 12)
TM
M0240-02
Model 3500
P79
6/11
