Contact wheel and arm assembly – Kinze 3500 Lift and Rotate Planter Rev. 5/14 User Manual
Page 80
PLA026(TWL53oo)

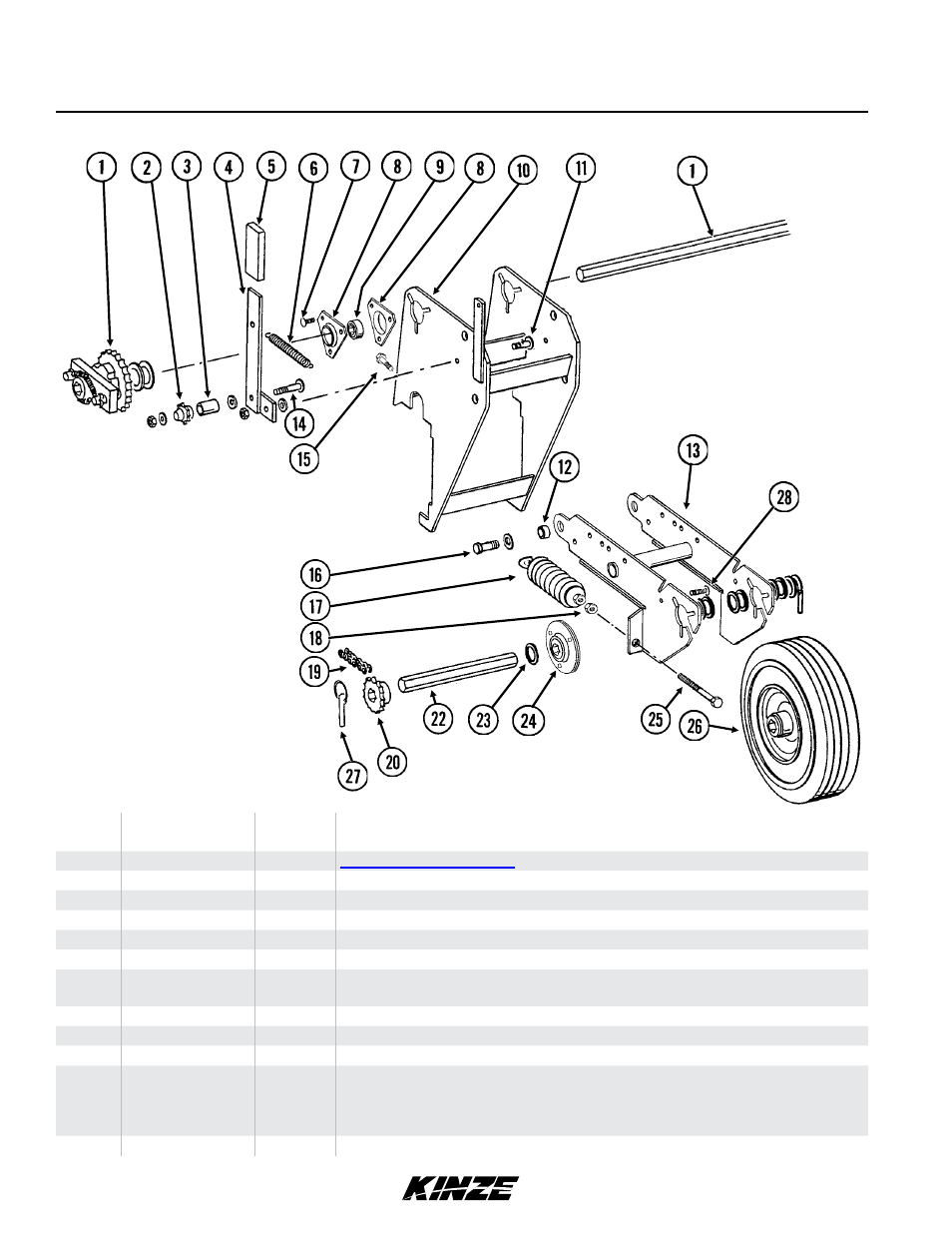

Contact Wheel and Arm Assembly
ITEM
PART NO.
QTY.
(Per Wheel)
DESCRIPTION
1
---
-
2
GD7426
1
Sprocket, 12 Tooth
3
GD1026
1
Sleeve, 13∕16" Long
4
GA5157
1
Idler Arm, L.H.
5
GD5827
1
Cover
6
GD5857
1
Spring
7
G10303
G10620
3
3
Carriage Bolt, 5∕16"-18 x 1"
Serrated Flange Nut, 5∕16"-18
8
G3400-01
4
Flangette
9
G2100-03
2
Bearing, ⅞" Hex Bore, Spherical
10
GA8925
1
Mount
11
G10004
G10229
G10370
GD5756
1
1
1
1
Hex Head Cap Screw, ⅜"-16 x 1¼"
Lock Washer, ⅜"
Machine Bushing, ⅜", 22 Gauge
Special Nut, ⅜"-16
12
GB0218
2
Bushing, 21∕32" I.D. x ⅞" O.D. x 19∕32" Long
