INFICON SKY CDGxxxD (Profibus) - Manual (Page 7)

tira54e1-a (2009-01) CDGxxxD.cp
7
1 Technical Data
Further technical data → [1], [2], [3].
Fieldbus name Profibus
Standard applied → [5]
Communication protocol data format → [2], [5]
Interface, physical RS485
Data rate ≤12 MBaud (→ [2])
Node address
Local
(Adjustable via hexadecimal
"ADDRESS", "MSD", "LSD"
switches)
Default setting
Via Profibus
(hexadecimal "ADDRESS" switches
set to >7d
hex
(>125
dec
))
00 … 7D
hex
(0 … 125
dec
)
01
hex
00 … 7D
hex
(0 … 125
dec
)
Profibus connection D-Sub, 9 pins, female
Cable shielded, special Profibus cable
(
→ 8 and [4])
Cable length, system wiring according to Profibus specifications
(
→ [5], [4])
ZERO SP
DIAG
SP 1
SP
2
S T A T U
S
4 2 6
0 8
E A C
LSD MSD
NET
ADDRESS
4 2 6
0 8
E A C
17,
9
82

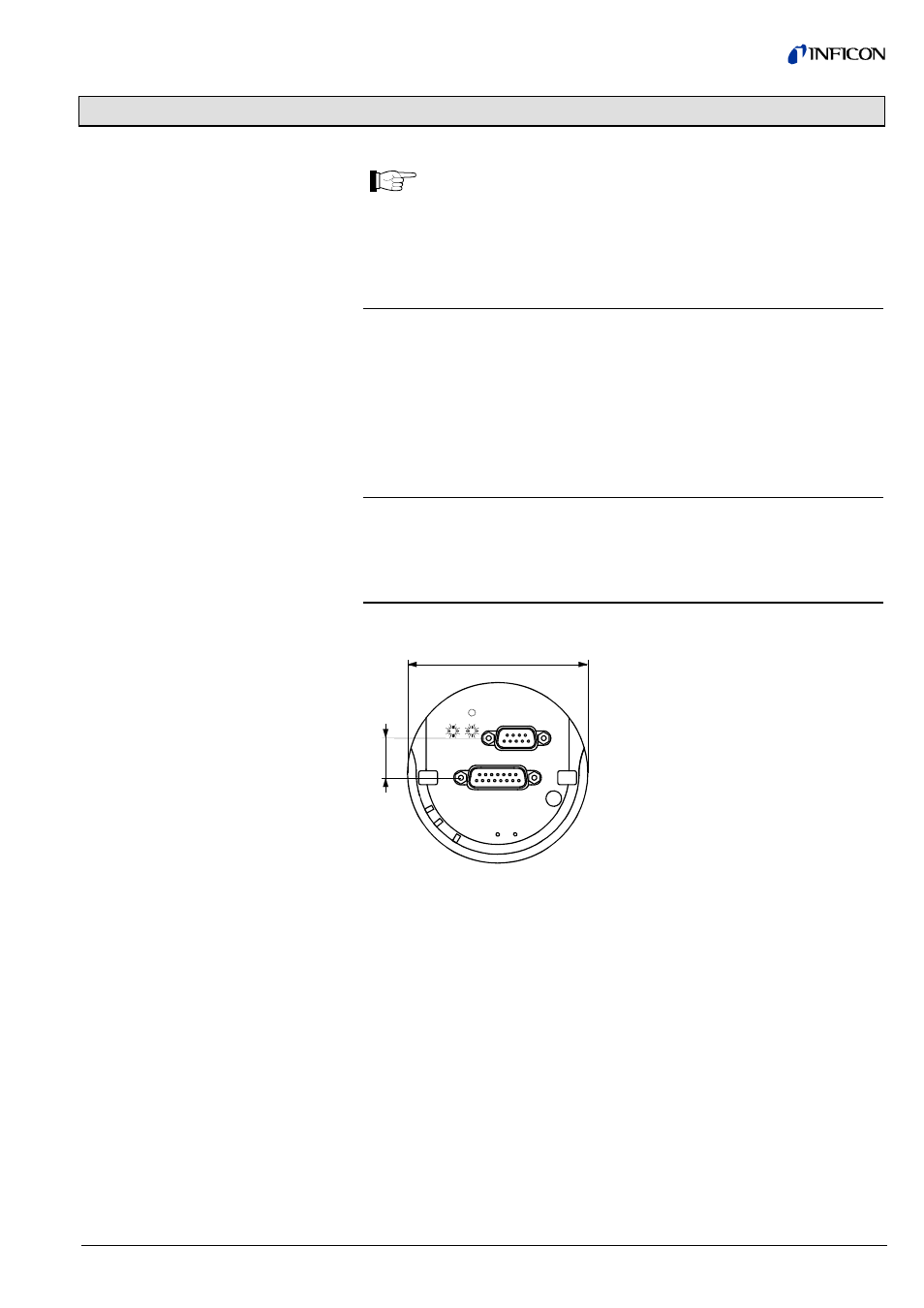

Profibus interface
Dimensions [mm]
