This proprietary parameter allows access of the corresponding part (Status
Extension and Detail) of the Device Exception Detail Warning parameter (ID 28).
See section 7.1.13.
This proprietary parameter allows access of the corresponding part (Detail) of the
Manufacturer Exception Detail Warning parameter (ID 28). See section 7.1.13.
This parameter is for testing purposes only. It holds the value (0...255) of the switch
position according to the labeling of the switch.

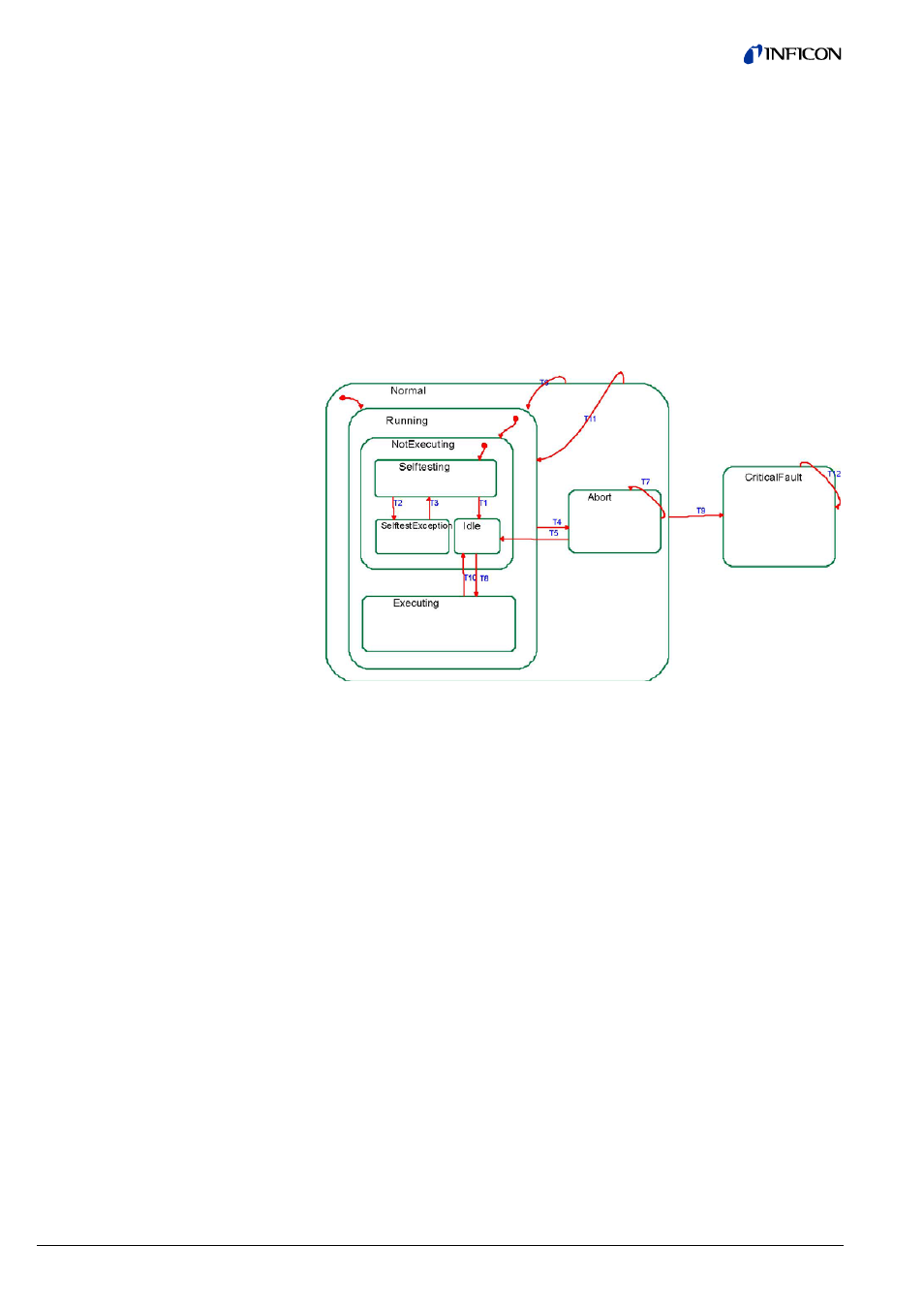

The CDGxxxD behaves as described in the status diagram below.
After the start, the gauge independently runs through the INIT and SELFTESTING
status and eventually changes to the IDLE status (if there is no error) or to the
SELFTEST_EXCEPTION status (if there is a gauge error).
When data traffic is taken up, a difference has to be made between cyclic and
acyclic data traffic.
As soon as cyclic data interchange is taken up, the gauge automatically changes to
the EXECUTING status.
In acyclic data traffic, a START service has to be transmitted to bring the gauge to
the EXECUTING status.
7.1.21 Device Exception Detail
Warning (ID 208)
7.1.22 Manufacturer Exception
Detail Warning (ID 209)
7.1.23 Address Switch (ID 210)
7.2 Device Block Status
diagram
Cyclic data traffic
Acyclic data traffic
