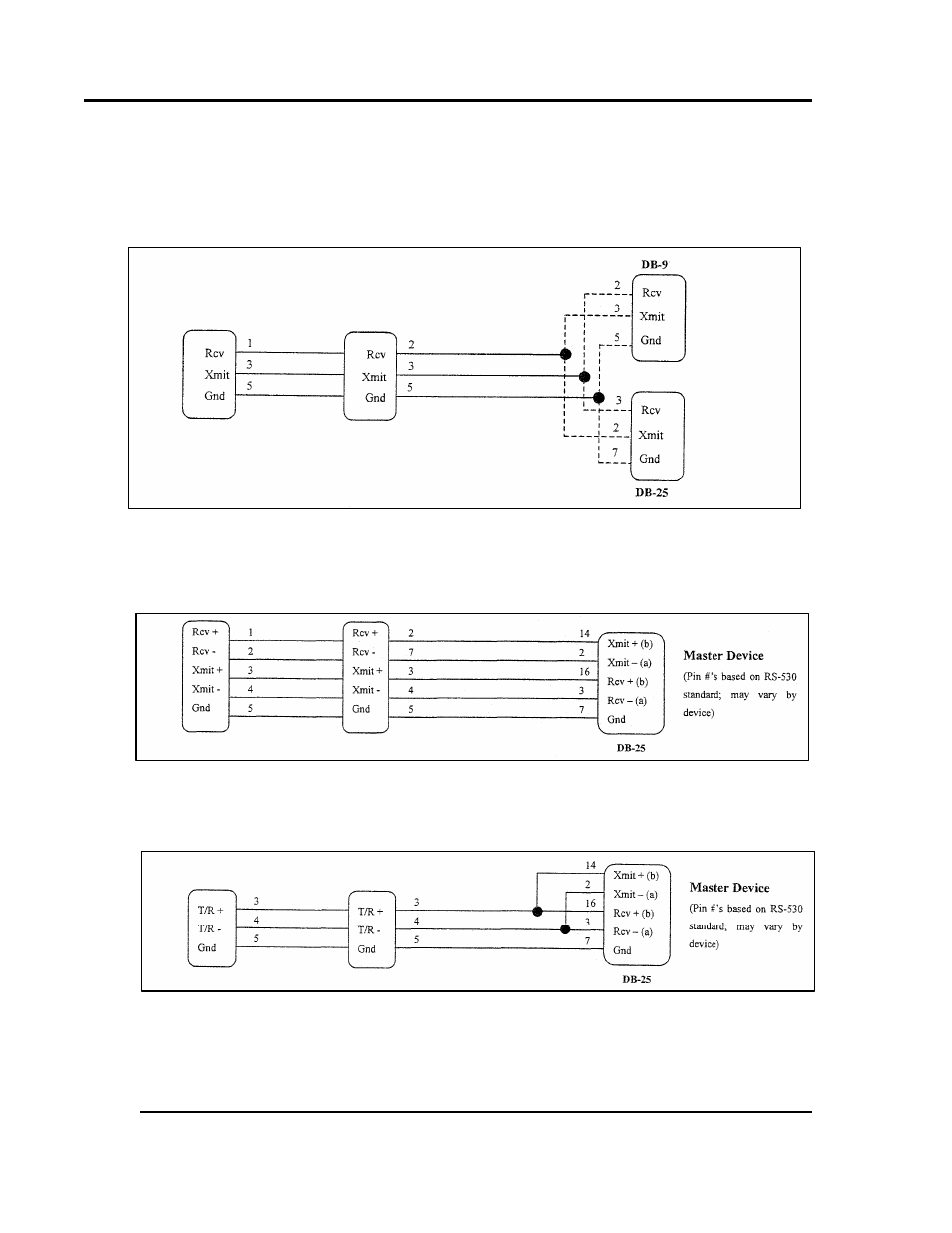

RS422A Wiring Diagram (Figure 46)
RS 485 Wiring Diagram (Figure 45)
Figure 47. RS232 Wiring.
Figure 46. RS422A Wiring (4 wire).
Figure 45. RS485 Wiring (2 wire).
