I NSTALLATION & S ETUP Protocol Manager Instruction Manual
28 Version 1
Copyright © 2013 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
SAVE Saves a recipe to
the host PC
READ Reads (uploads) a
recipe from the
desired controller.
WRITE Writes (downloads)
a recipe to the
desired controller
3.7.1.2. Save Initial Recipe: Protocol 3
After keying in the desired recipe using Recipe Editor , press SAVE and identify the
desired Recipe Folder ( Figure 22 ). Note that recipes are saved only to the Recipe Folder
location, not to the Protocol 3 controller itself.
3.7.1.3. Write a Recipe to the Protocol 3 Controller
After keying in the desired recipe using Recipe Editor ,
press WRITE to load the recipe to the desired controller
(identified in pull down menu, Figure 23).
3.7.1.4. Open An Existing Recipe: Protocol 3
After a recipe has been saved to the Recipe Folder of the PC, it is available to open. Open
a recipe by pressing OPEN , highlighting the desired recipe and pressing OPEN in the
Recipe Folder ( Figure 22 ).
3.7.1.5. Read a Recipe from the Protocol 3
Protocol Manager can read recipes residing on the Protocol 3 controller. Press READ
from the Recipe Editor to load all the existing recipes from the desired Protocol 3
controller (identified in pull down menu, Figure 23).
3.7.2. Set Up Initial Recipe: Protocol Plus
Recipes establish time and temperature instructions for each controller. Setting up
Protocol Manager involves configuring recipes and then selecting the proper recipe for
each use. Creating recipes with the Protocol 3 controller follows a different process then
creating recipes with the Protocol Plus controller.

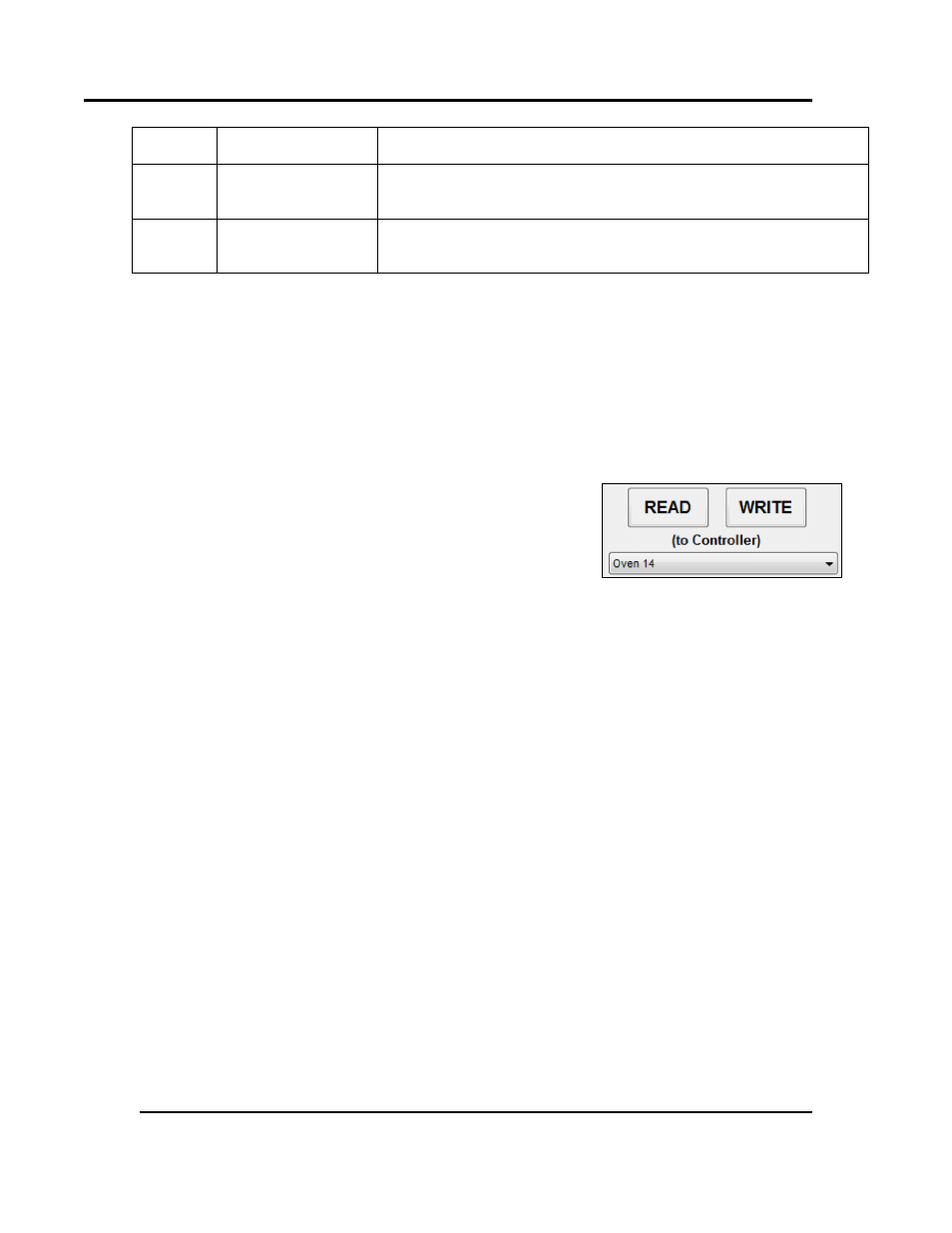

Figure 23. Identify Protocol 3
Controller using pull-down menu.
