Starting the Controller

Protocol Manager Instruction Manual

40

Version 1


Copyright © 2013 by Despatch Industries.

All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.

4.2.1. Start Controller in the Run Time

Window

The Run Time Window presents three options for starting a
profile (Figure 30):

Manual Mode

Time Mode

Profile Mode








4.2.1.1. Starting with Manual Mode

In Manual Mode the process run is held at a single setpoint temperature until the operator presses

STOP

(Figure 31). Enter the process setpoint, Hi-limit setpoint and event status as desired (Figure

31).




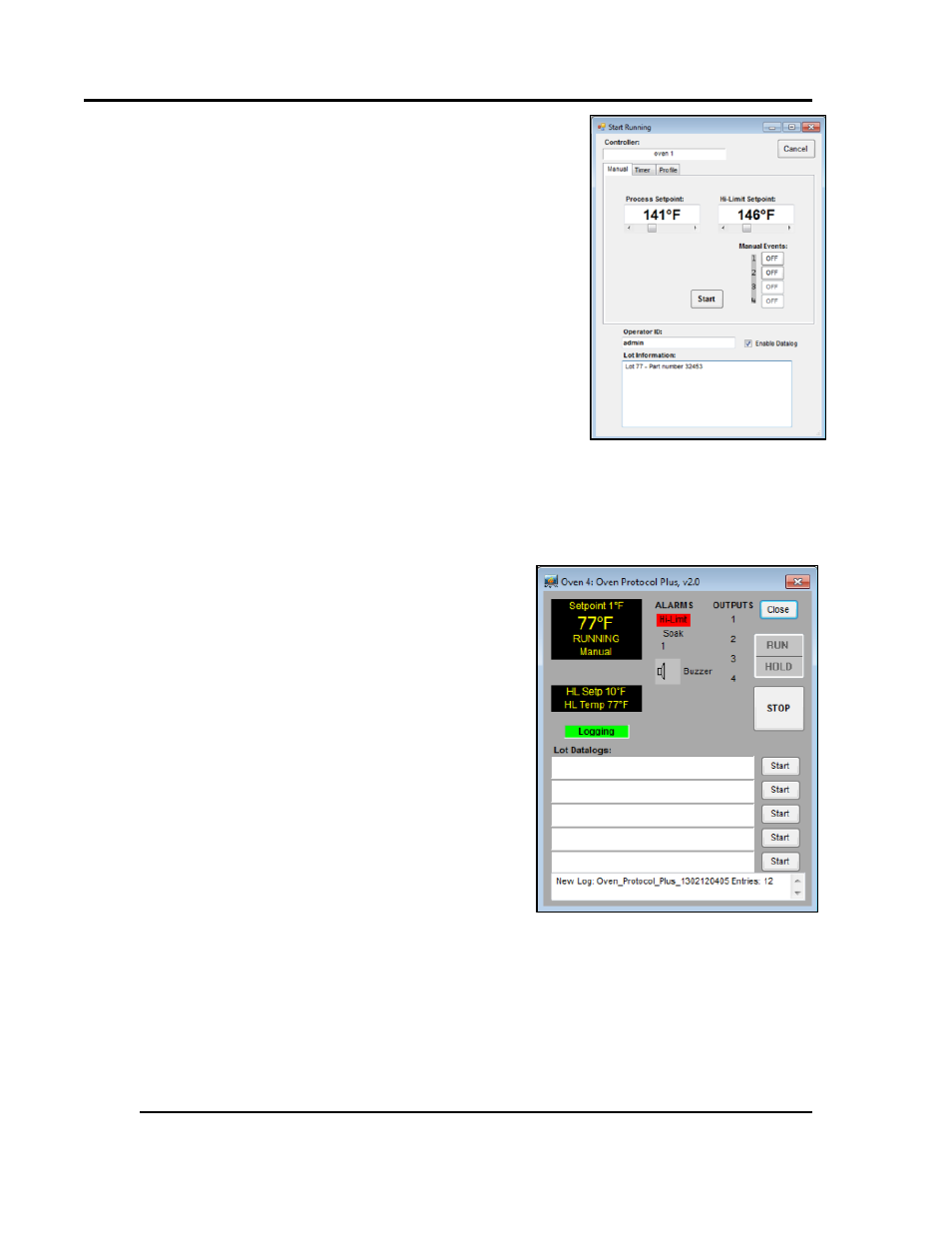

Figure 30. Run Time Window
showing manual tab.

Figure 31. Run in Manual Mode.
