3.7. Set Up Initial Recipe

Recipes establish time and temperature instructions for each controller. Setting up
Protocol Manager involves configuring recipes and then selecting the proper recipe for
each use. Creating recipes with the Protocol 3 controller follows a different process then
creating recipes with the Protocol Plus controller.

3.7.1. Set Up Initial Recipe: Protocol 3

3.7.1.1. Configure Initial Recipe: Protocol 3

Create a recipe by clicking on

Window

and selecting

Recipe/Datalog for Pr3

(Figure 21). The Recipe Editor

Screen will appear (Figure 22).

Double click any field on the

Recipe Editor

screen to

access an editing window. Move the slider or click in the
white space or on the arrows to set the appropriate value. Click

to save the value (

Cancel

delete). See

Table 4

for the complete list of fields, descriptions and parameters. See the Protocol

3 Programmer’s manual for
a sample profile.

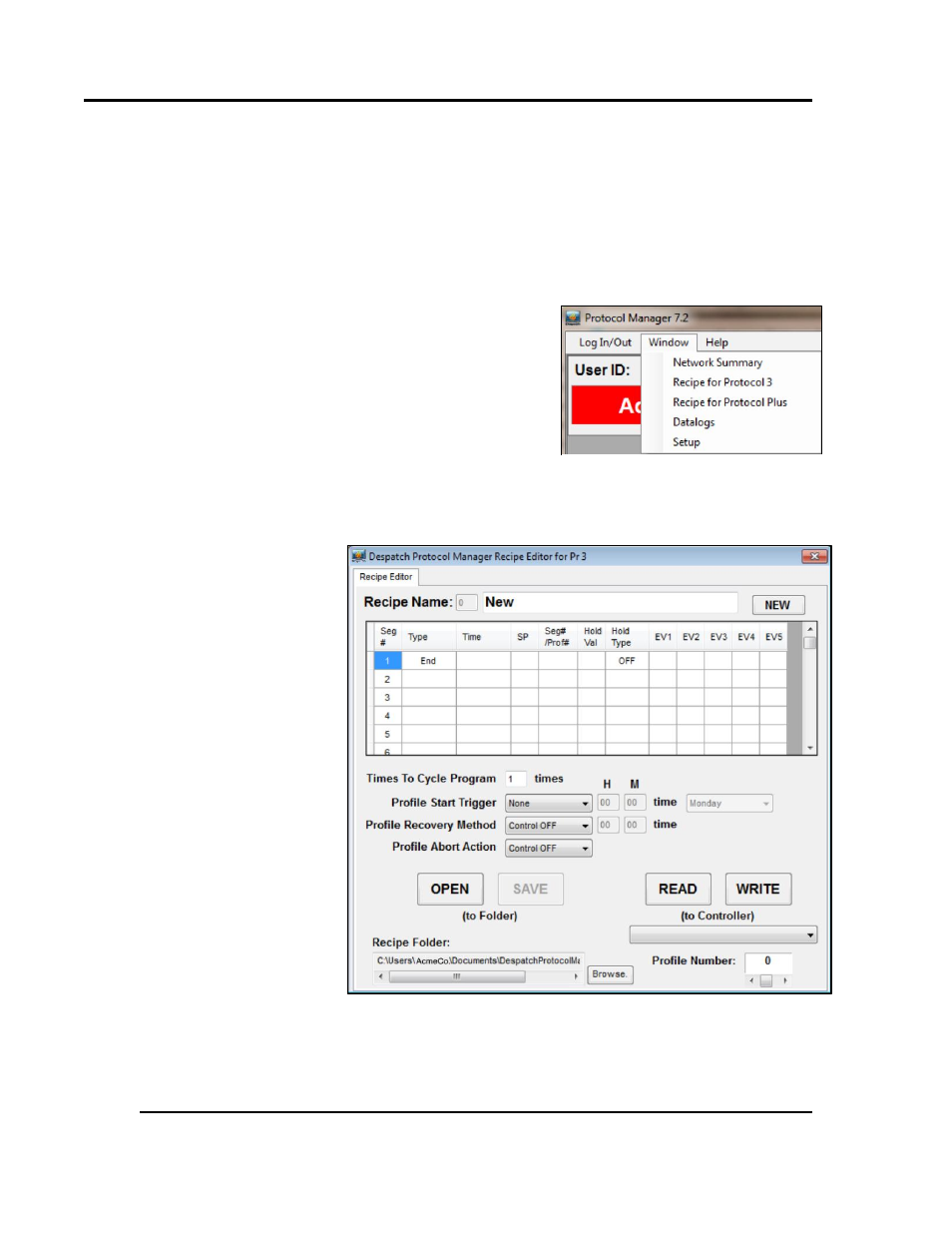

Figure 21. Configure a recipe.

Figure 22. Protocol 3 Recipe Editor.
