Table 5. Protocol Plus Controller Recipe Editor Fields and Descriptions.
Field

Description

Parameters

Recipe
Name

Name of new recipe being created

Defaults to “NEW.” Replace with
desired name.

Seg #

Number of profile segment being created

From 1 to 8 segments are
available.

Ramp Time Time required to ramp setpoint to temperature



Enter values between 0 and
99:59



Units are set locally at each
controller as either hours
and minutes (HH:MM) or
minutes and seconds
(MM:SS).

EV1

Events 1-4

programmed into the Ramp Time

portion turn on for the duration of the segment.

EV2
EV3
EV4
Soak
Temp

Temperature for segment



Enter values between -18 to

Note that these relays will actuate only when the controller has the relay cards installed and programmed

for an event.



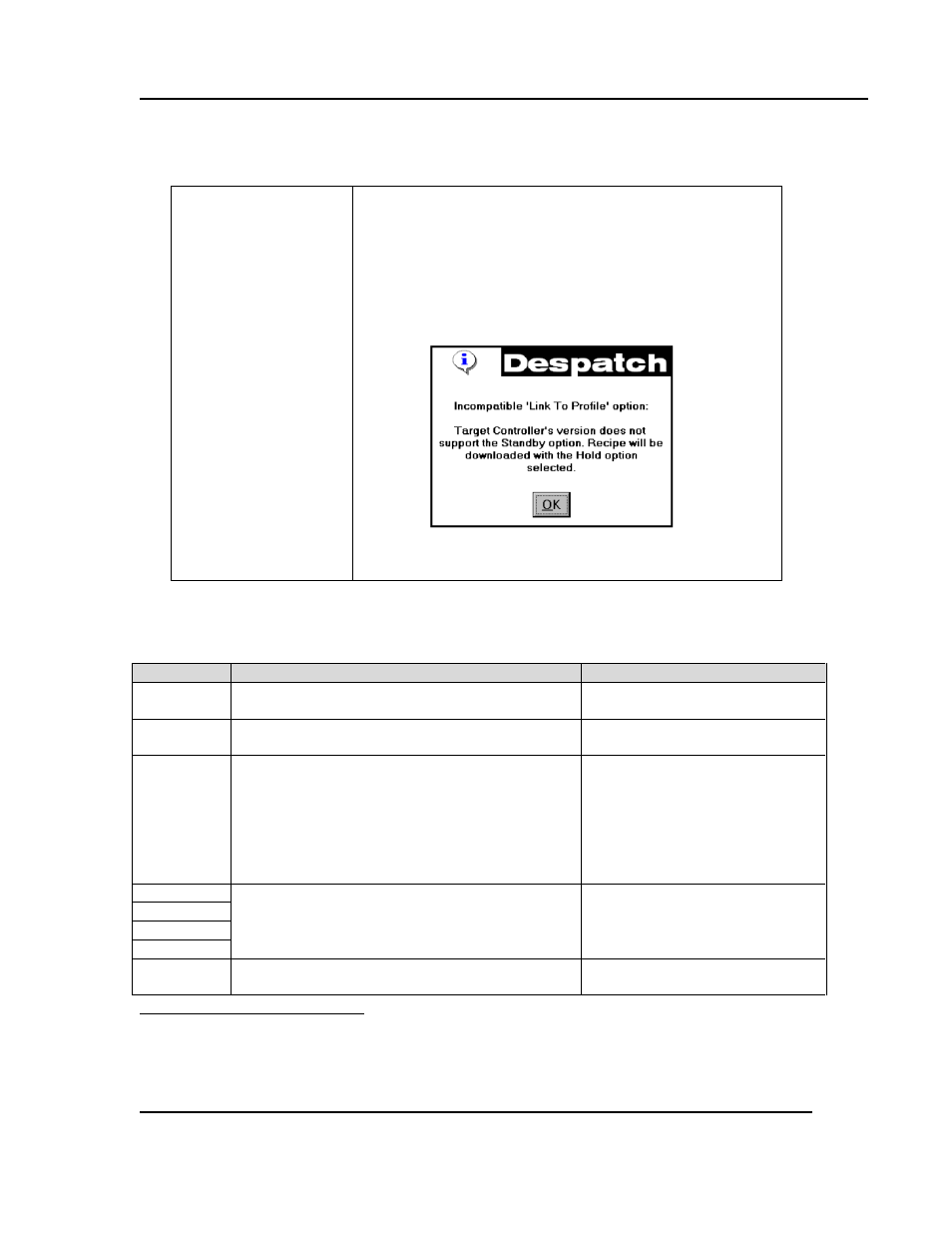

Incompatible Link to Profile Option Message

The Link to Profile value STBY (Standby mode) can
only be used with Protocol Plus controller version 4 or
higher. If a recipe with Standby mode selected is
chosen for download to an earlier-version controller,
Protocol Manager displays this message:

The downloaded profile Link to Profile is set to HOLD
for that controller.
