I NSTALLATION & S ETUP Protocol Manager Instruction Manual
18 Version 1
Copyright © 2013 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
2. Click Comm Setup and use the cursor to make the following selections—corresponding to
the selections made on each Protocol 3/Protocol Plus controller ( Figure 14 ).
a. Select appropriate port from Port
Selection drop down menu (Figure
14). Select the communication port
that matches your host computer
hardware.
b. Select Baud Rate . Select the Baud
Rate that corresponds to the rate
programmed into the Protocol
3/Protocol Plus controller (s). 19.2K
is the default configuration. 38.4 K
provides the fastest communication.
c. Select Parity Option . Select the Parity
Option that corresponds to the rate
programmed into the Protocol
3/Protocol Plus controller (s).
None is
the default configuration.
d. Use Long Timeout Delay checkbox.
The software uses a time to check
protocol controller response time,
which is critical when using multiple

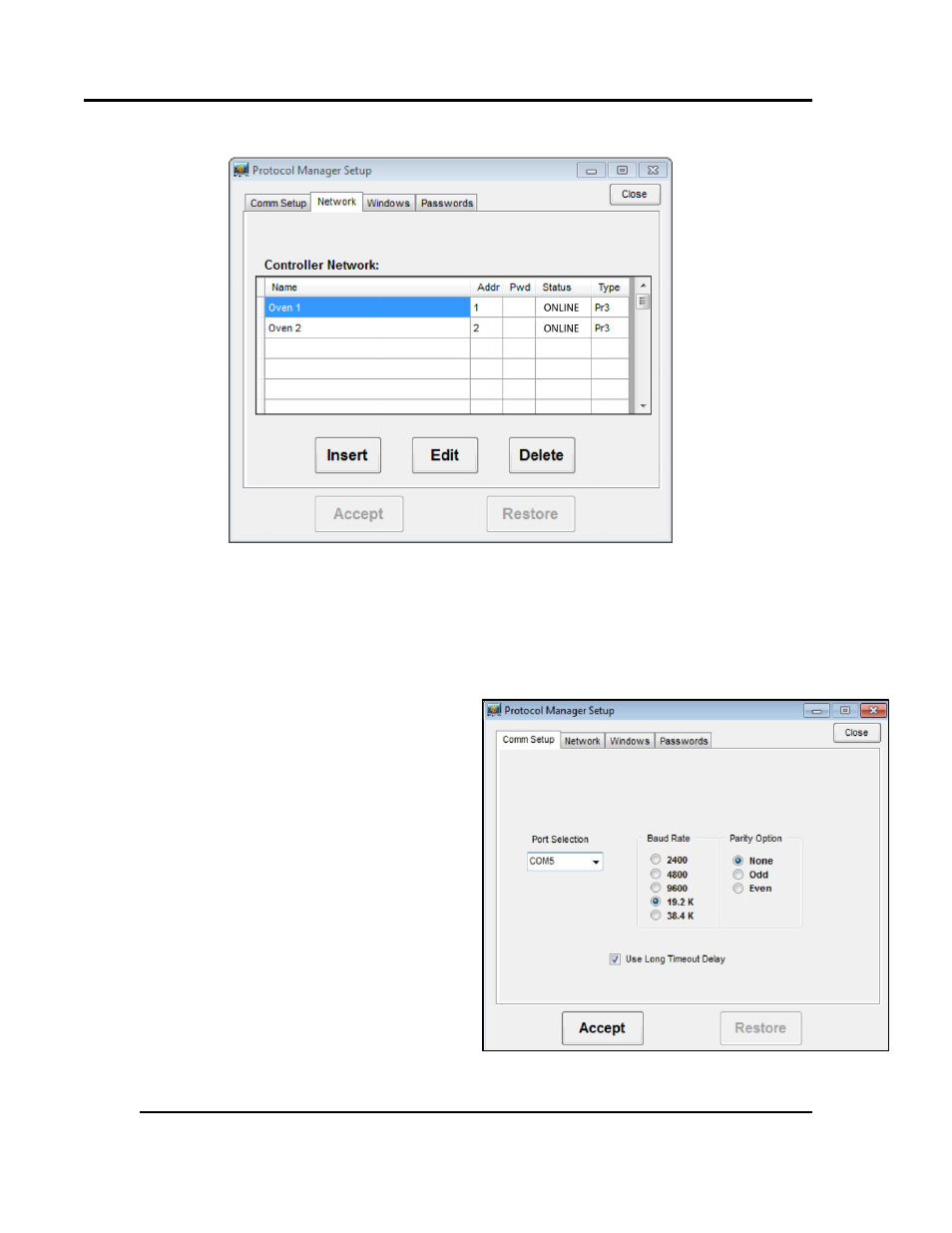

Figure 13. Software Setup Window.
Figure 14. Comm Setup Tab.
