Protocol Manager Instruction Manual

Starting the Controller

Version 1

41

Copyright © 2013 by Despatch Industries.

All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.


4.2.1.2. Starting with Timer Mode

Timer mode allows the operator to start and stop the
process for a preset length of time (Figure 32). Timer
mode is similar to Manual mode except that the time at
temperature is added. If the soak band temperature
deviates from this setting, the timer is placed in a hold
condition.



















4.2.1.3. Starting with Profile Mode

Profile mode allows the user to start with one of eight separate profiles (Figure 33). Create
profiles or add profiles to the system at the

Recipe Editor

Screen (refer to Section 3.7).

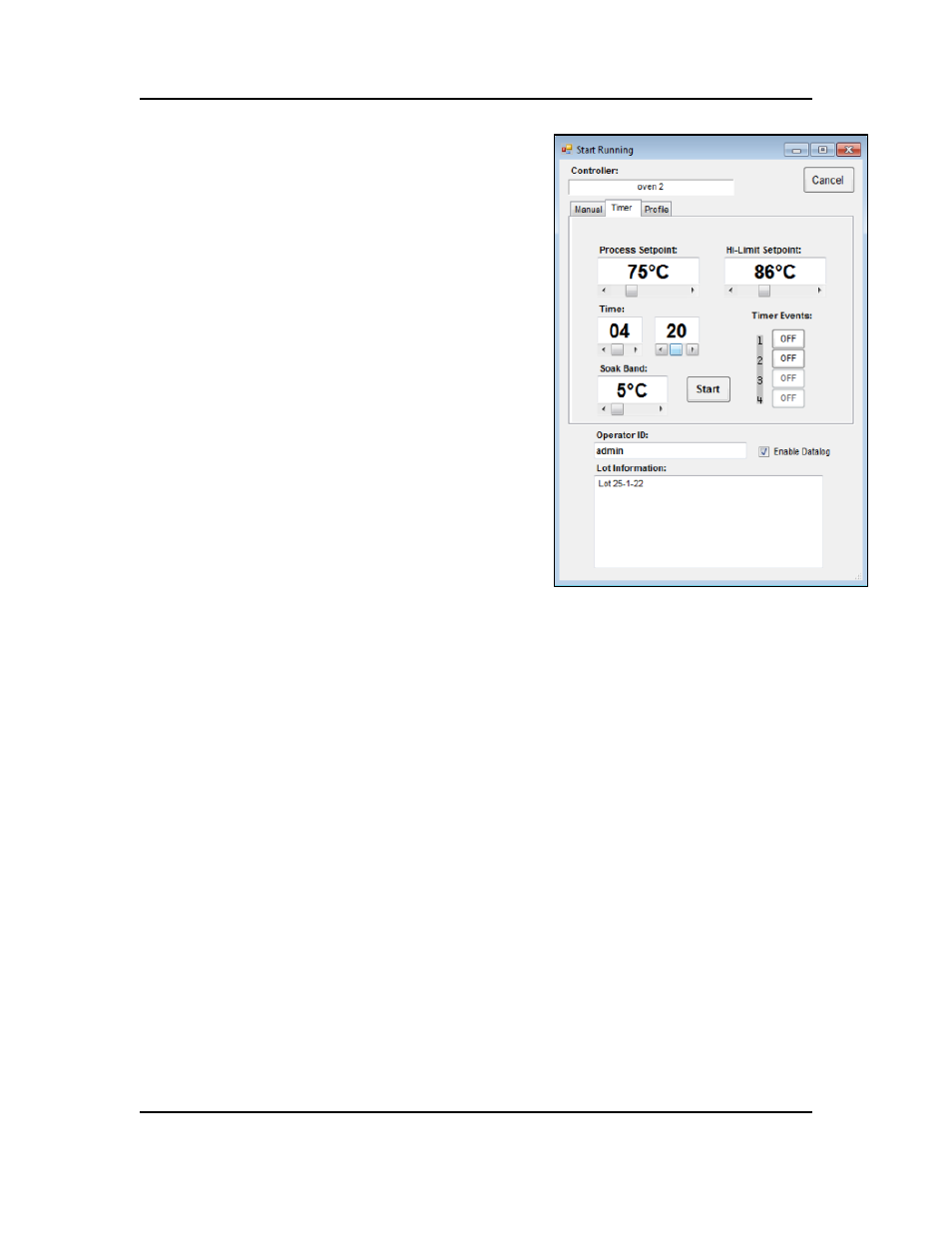

Figure 32. Run in Timer Mode.
