UMX-2 Underwater Material & Coating Thickness Gauge
62
1) Remove the bottom end cap of the UMX-2, in order to access the LEMO
data jack. Remove the rubber plug from the data jack.
2) Plug the LEMO connector into the data jack. Note: align the red pin on the
connector with the data jack.
3) Plug either the RS232 into a serial port, or USB connector into a USB port
on the PC.
4) Start the DakView3 utility software.

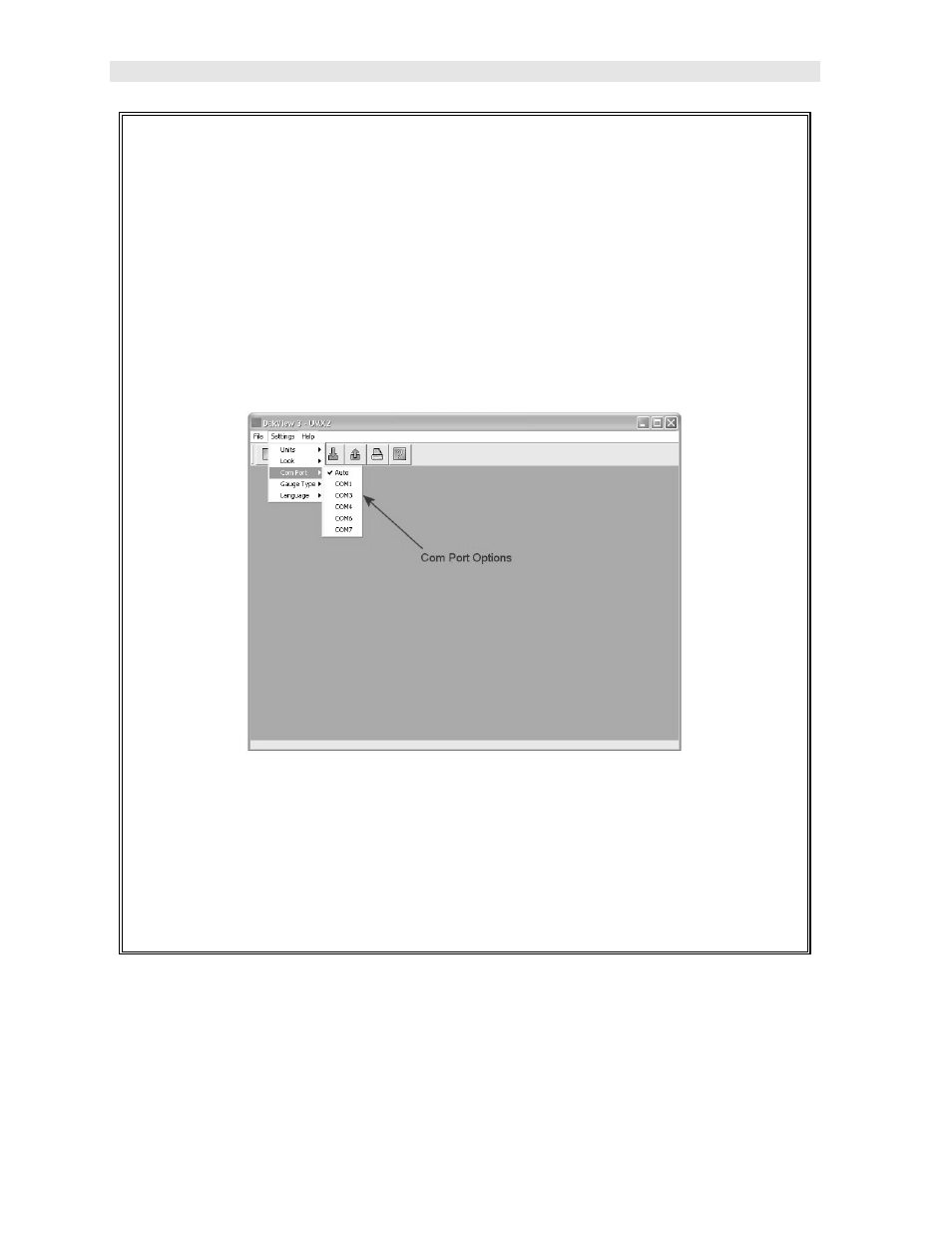

5) Click on SETTINGS, followed by clicking on COM PORT, to view the list of
available ports. The default setting for DakView3 is always AUTO. The
AUTO mode searches through all the possible com port options, and looks
for the port ‘automatically’. However, this can take some time. Therefore, if
the port is already known, manually select the port from the list.
