Dakota Ultrasonics UMX-2 User Manual

Page 63

Dakota Ultrasonics

Note: This section assumes that DakView3 has already been installed on your

PC, has been executed, and ready to go.

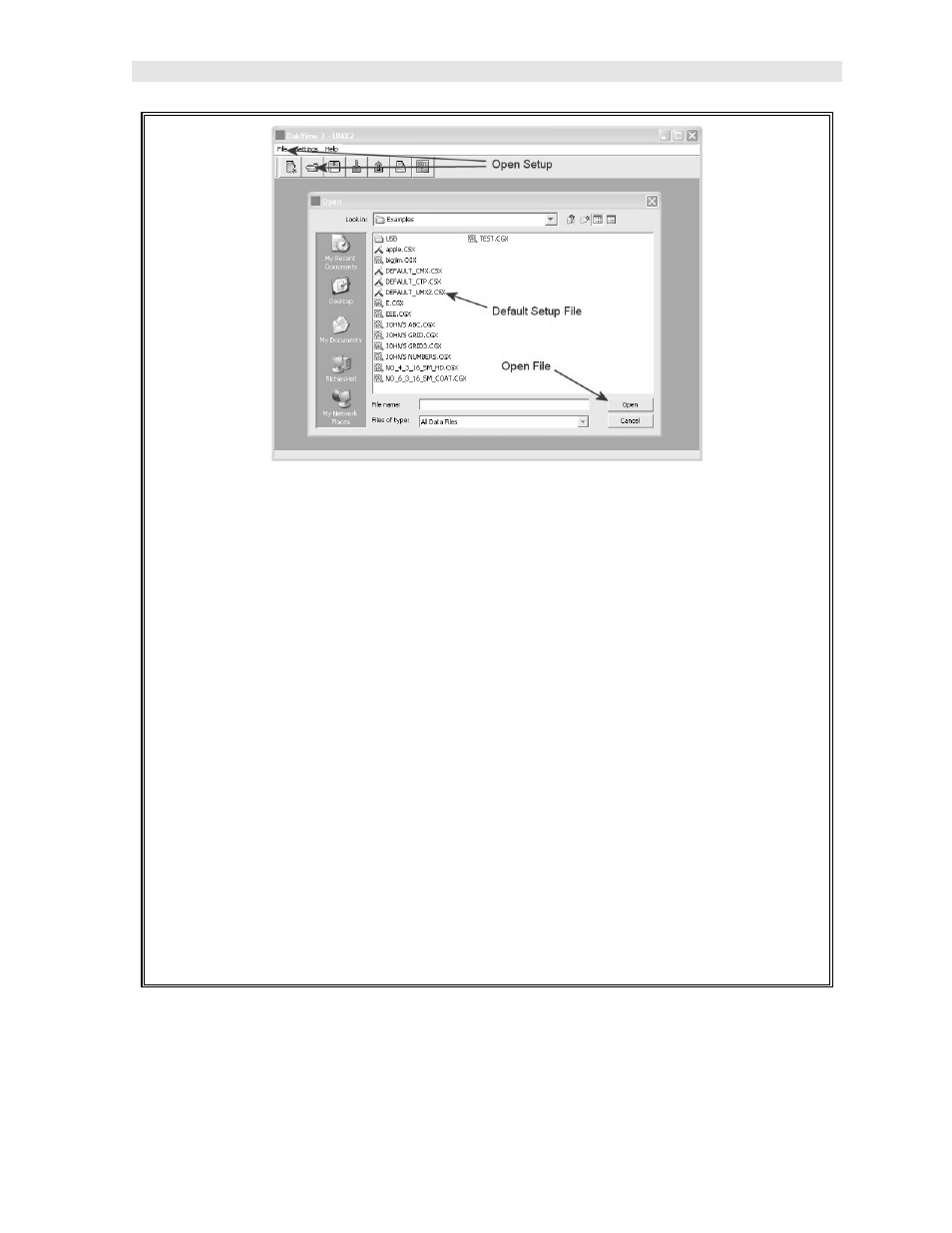

1) The default setup file can be opened two different ways; Click the icon

button to initiate the ‘open’ dialog box, or click FILE, followed by clicking

OPEN.

2) Locate the file “DEFAULT_UMX2.CSX”. The file can be opened 2 ways.

Single click on the file name to highlight the file, followed by clicking the

open button. Alternatively, double click on the file name itself to open the

setup dialog box.

Note: This assumes that a setup file was not previously created and saved. If

it was, locate the file that was previously created and follow the same procedure

above.
