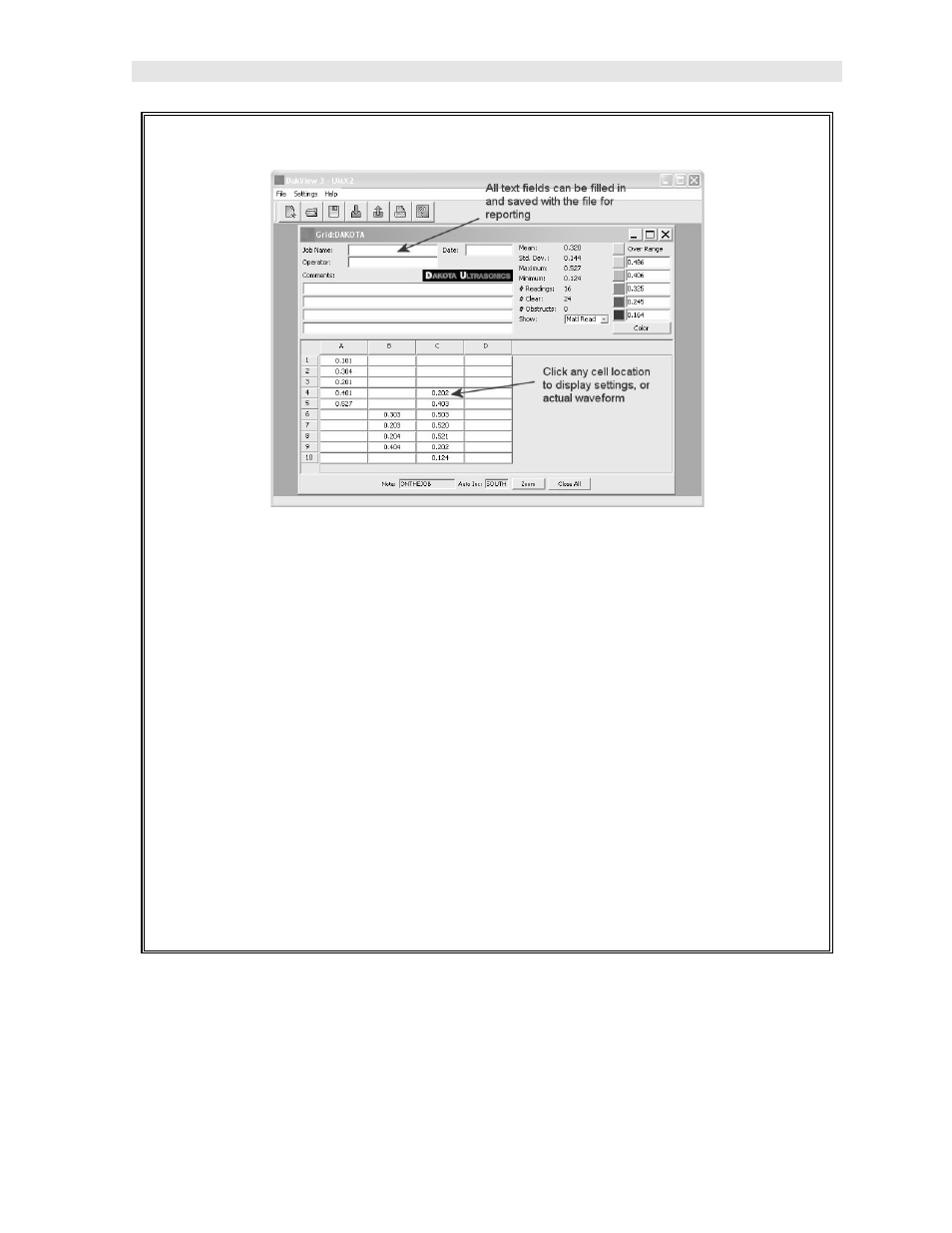

1) Click on any of the measurement cells to review the gauge settings and
waveform for that specific measurement.
2) Click in the any of the ‘white space’ text fields’ to enter required information
for reporting purposes. If the file is then saved, the information entered will
also be saved with the file.
Note: Although the UMX-2 is not equipped with a screen to view an actual live
A-Scan waveform, a ‘snapshot’ of the waveform is captured for each and every
measurement saved. These waves can be opened and reviewed in DakView3
at any time. They can provide valuable information, in reference to the quality
of the measurements.
