Dakota Ultrasonics
61
5) Specify the path to the folder to store the setup file in. Give the setup file a
unique name, or overwrite the default file.
6) Finally, click the SAVE button to store the file on your PC.
12.3 Connecting to a PC
Now that the new setup file has been created and saved on the PC, the next step is
connecting to a PC to transfer the setup file into the UMX-2. There are 2 cables
included with the UMX-2 kit; LEMO to 9 pin serial and 9 PIN serial to USB.
Serial:
The LEMO to 9 pin RS232 cable can be connect directly to any serial port. However,
the serial port number must be known. The actual port reference can be obtained in
the device manager of a Windows® based operating system.
USB:
Both the LEMO to 9 pin serial and 9 pin serial to USB can be connected together to
use the serial to USB converter configuration. This option requires that a driver is
installed for the USB cable. The driver will automatically be loaded when DakView3
PC software is installed. However, the driver files will also be included in the
‘examples’ folder on your desktop. This folder is created by DakView3 when
installed.
The following procedure outlines the steps for connecting and transferring the setup
file to the UMX-2 as follows:

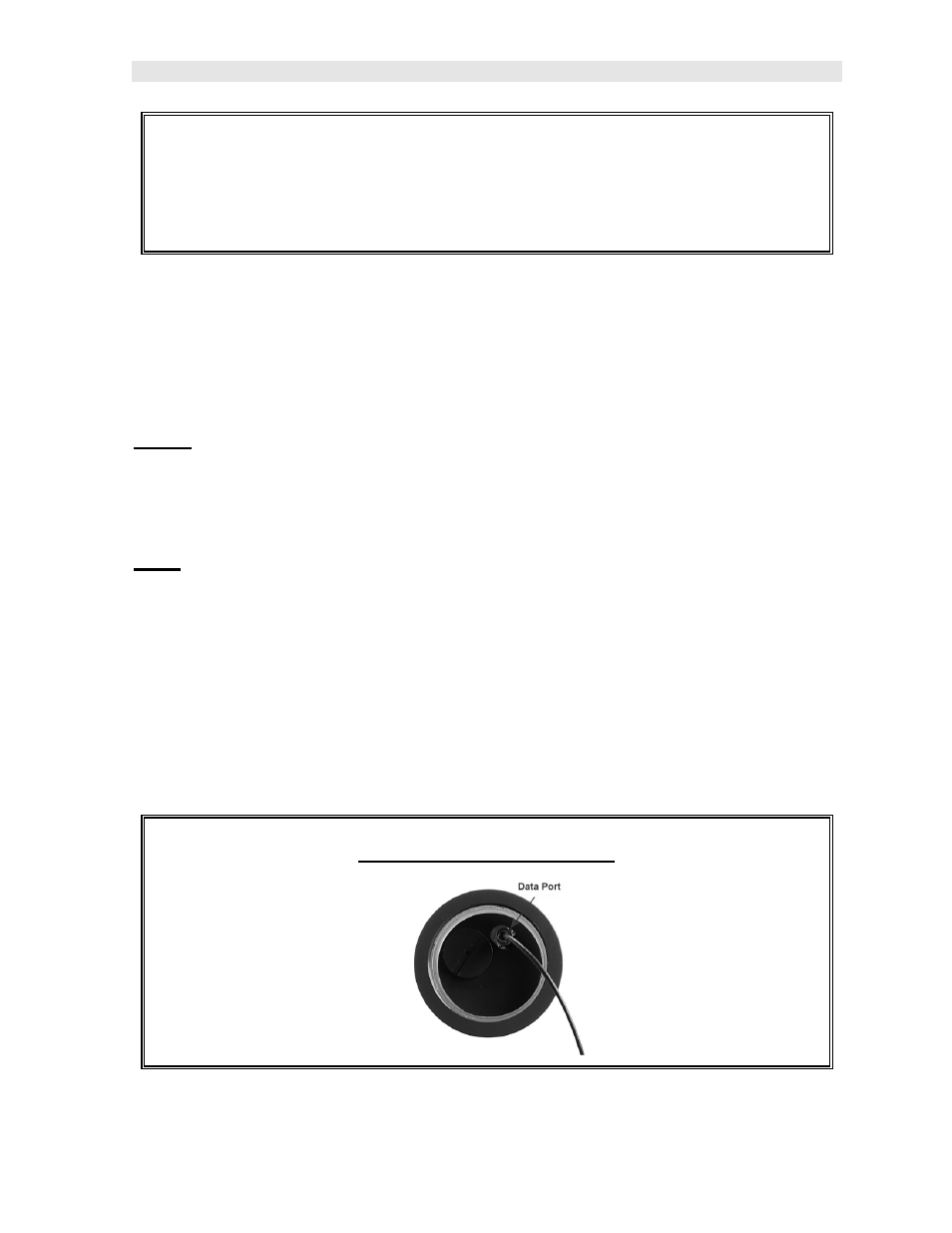

Uploading the Setup File
