RS-232 Connector

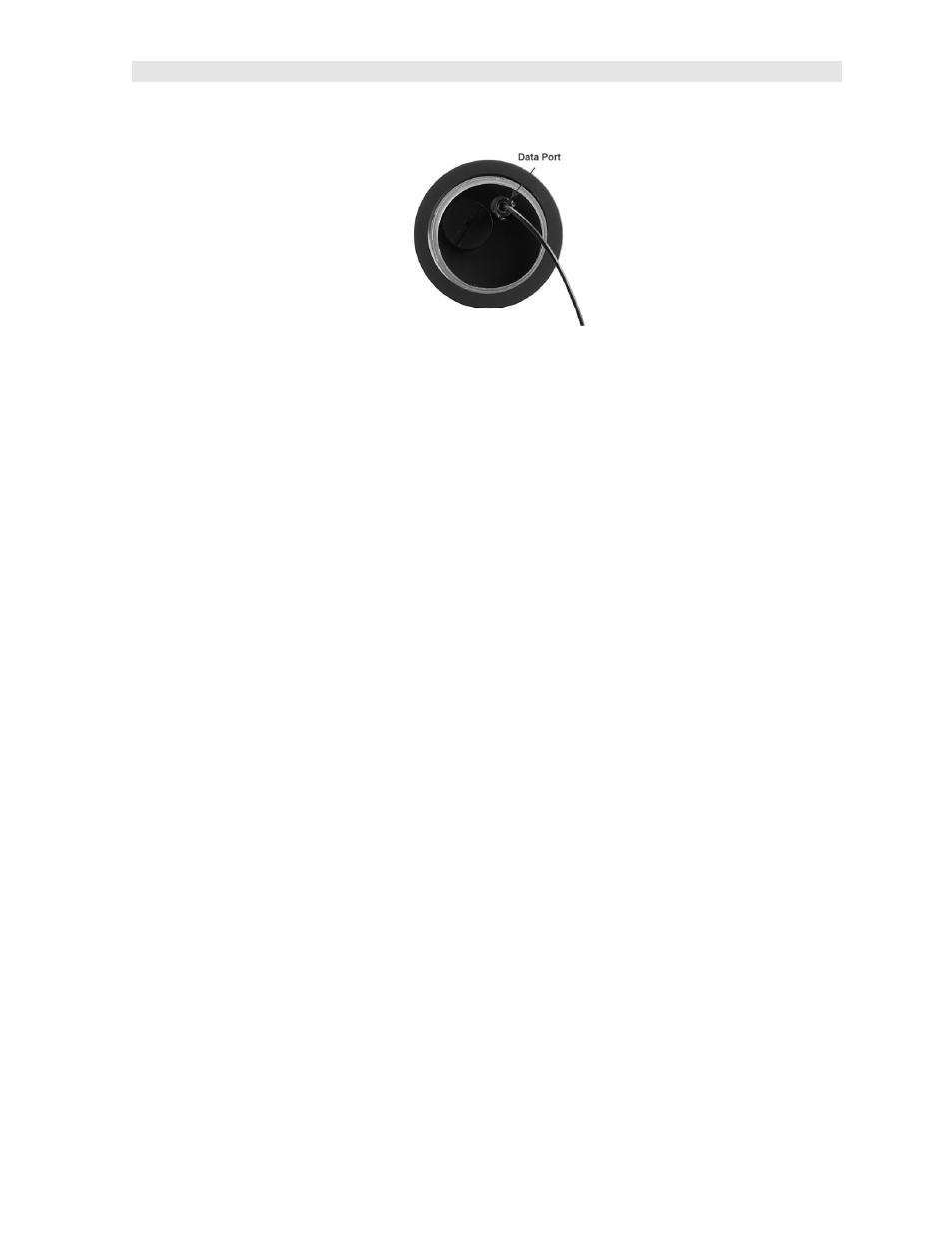

Refer to Diagram: The RS-232 connector is a 2 pin female LEMO connector. It is
designed to connect directly from the UMX-2 to a standard AT serial port on a PC or
into the supplied Serial to USB converter cable . The re are two cables supplied with
the UMX-2;
•
2 pin LEMO to 9 pin serial cable
•
9 pin serial to USB converter cable.
Note: This connector is also used to upgrade the UMX-2 to the latest version of
firmware.
Serial to USB Converter Cable
A converter cable can be attached to the 9 pin serial cable, for computers that don
not have a serial port (part no. N-402-0510). This cable option is included in our kit
as standard.
