23 Printer-Applicator-System PAM 3000
Mounting
Normally all supplied label applicators have passed a previous run at the factory. Therefore all
units including the pad holder and the pad which are necessary for the operation of the device
are mounted.
But it is possible to dismantle the pad holder and the pad without effort when the label format
is changed. Following it is very easy to mount the new pad holder or pad.

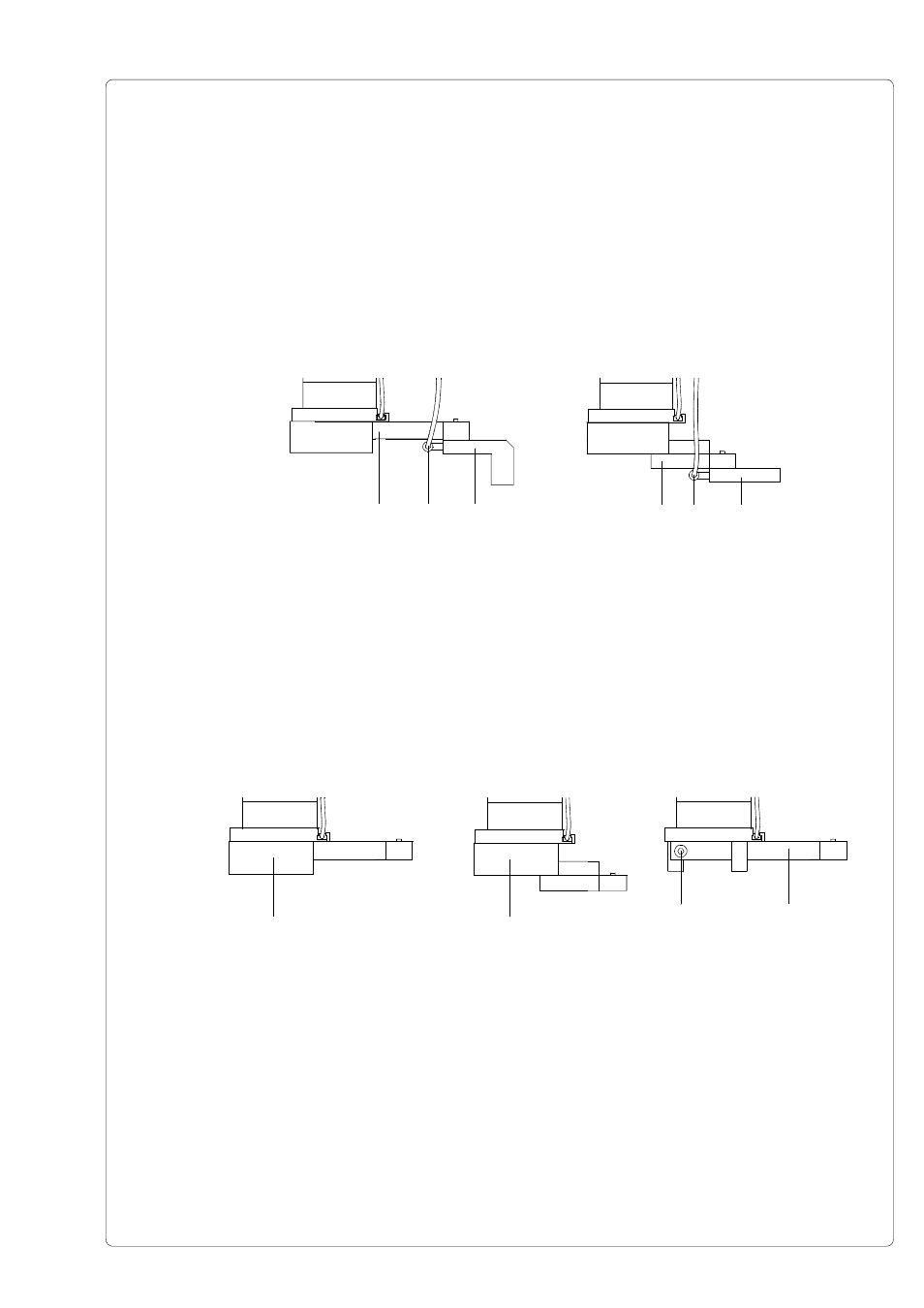

Fig. 5f Changing the pad
Small format Large format
2 3 3 2
Changing the pad :
1. Remove the vacuum tube (2) from the pad (3).
2. Loosen the screw on the lower side of the pad (3).
3. Remove the pad (3).
4. Attach the new pad to the pad holder (1).
5. Fasten the new pad on the pad holder (1) using the screw.
6. Attach the vacuum tube (2) to the new pad.
Small format Large format
Fig. 5g Changing the pad holder
1
4
1 5
Changing the pad holder :
1. Dismount the pad (3).
2. Loosen the screw on the lower side of the cover (4).
3. Remove the cover (4).
4. Loosen the screw (5) at the pad holder (1).
5. Remove the pad holder (1).
6. Attach the new pad holder to the bolt.
7. Fasten the new pad holder by screwing the screw.
8. Mount the cover.
9. Mount the pad.
1
4
