13 Printer-Applicator-System PAM 3000
Index Characteristics MIN. (mm) MAX. (mm)
A Label width 5 115
B Width of silicon liner 25 120
C Label length 3.5 80
D Gap between label 2 546
E Label thickness 0.1 0.25
F Thickness of silicon liner 0.05 0.10
G Distance of the first printing point
from the edge of silicon liner 2
H Distance of the label sensor
from the edge of silicon liner variable
I Width of the perforation mark 5 -
K Height of the perforation mark 2 5
Label Media Specifications
Label media to be used for the PAM 3000 can be found in the table below. Note this
information before ordering your labels.

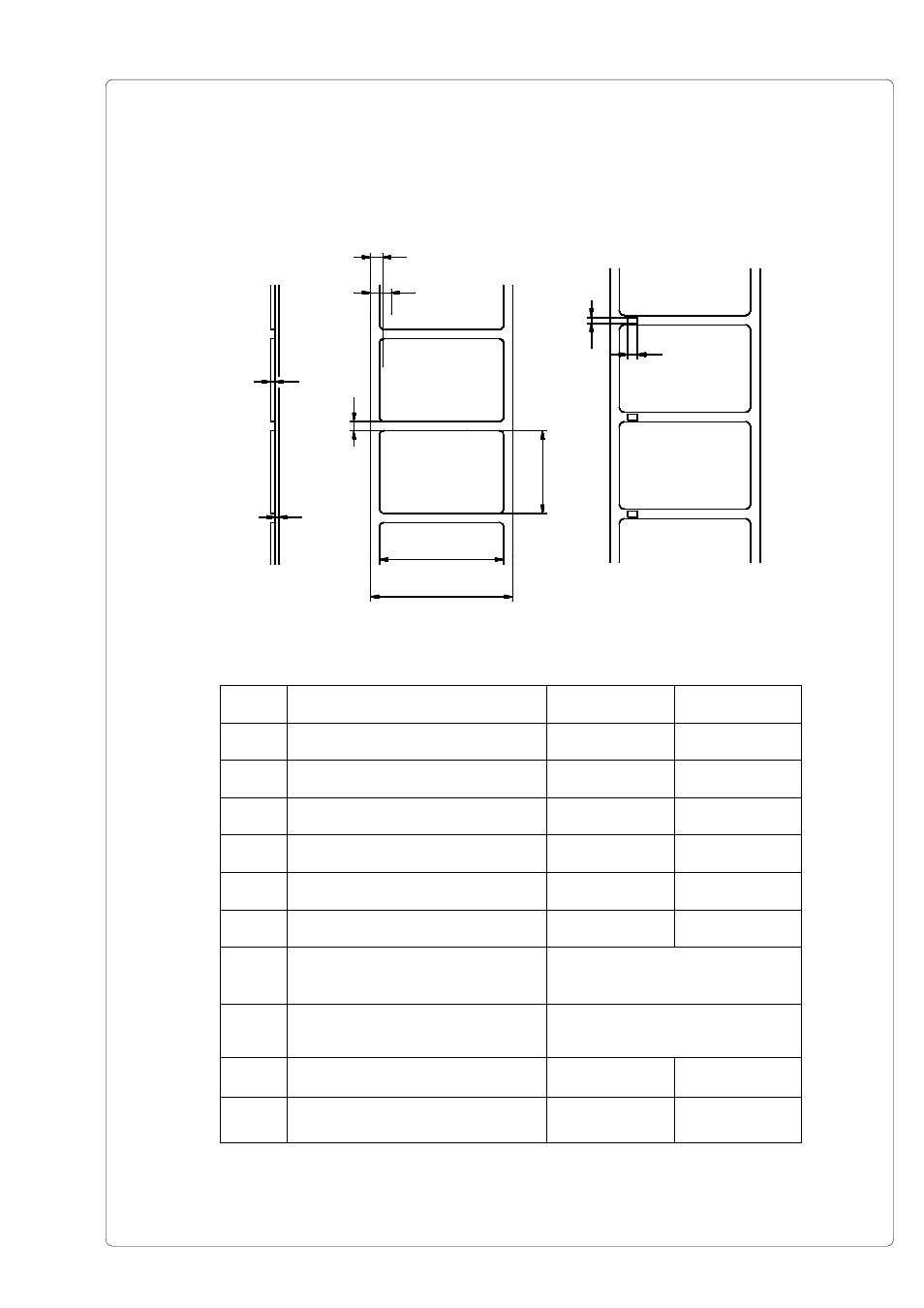

Fig. 1 Label formats
Table 1a Label formats in mm
E
F
D
A
B
C
G
H
K
I
