2N Lift8 v1.0 - Manual (Page 93)

93
2N TELEKOMUNIKACE a.s., www.2n.cz
®

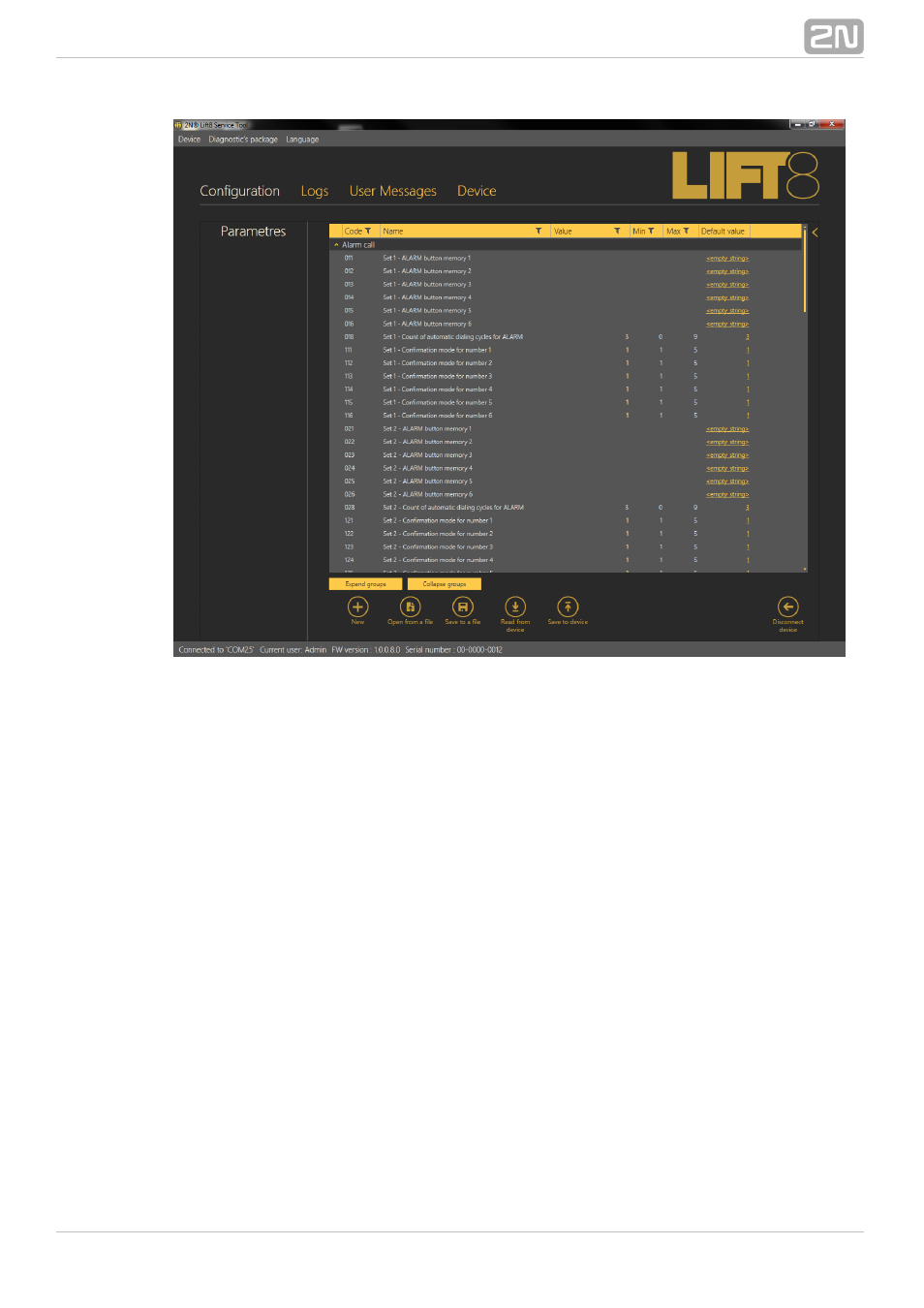

Parameters - Basic Menu Figure:
The menu also includes the Unpack/Pack groups for quick opening of sections and
displaying of parameters. Click the New set button to overwrite the current setting with
the default values. Click Save to file to back up data on a PC disk. Press OK to read
such backup and Download from device to read out the current set of parameters from
the Central Unit. When you have set all the required parameters, click Upload
configuration to device to store the changes into the CU memory. You can use filtration
to find the necessary data. Set the filter for each column separately and combine filters
to find the required data more efficiently. Click on the funnel symbol in each column to
enable the filter; an active filter is signalled by the funnel colour change. See the figure
below.
