SECTION 3 - CHASSIS & TURNTABLE
3-46 – JLG Lift – 3121262
3.12 DRIVE HUB - REGGIANA RIDUTTORI
NOTE: After S/N 0300134389 machines may be built with
either Bonfiglioli or Reggiana Riduttori wheel drive
hubs. See Section 3.11, Drive Hub - Bonfiglioli. Do
not use different hubs on the same machine.
Symbol Nomenclature
= ADHESIVE
= LUBRICANT
= GREASE
= TORQUE WRENCH
= DISPOSAL
Tools
Tools required for assembling and disassembling the
wheel gear RRTD1701TB
1. Hammer;
2. Clamps for inner retention rings;
3. Clamps for outer retention rings;
4. Electric or pneumatic screwdriver;
5. Special spacer mounting;
6. Torque wrench;
7. Hydraulic press;
8. Wrench for M6, M8, M10 socket head screws and
1/4" G plug.
9. Socket wrench for M6 hexagonal screw.
Ш30
Ш130
Ш240
Ш224
Ш233
Ш240
N° 6 Hole to 120° Ø30
5
10
5x45°
15
°
6
0
°
60°
6
0
°
A A
35
M- 1326
R
5

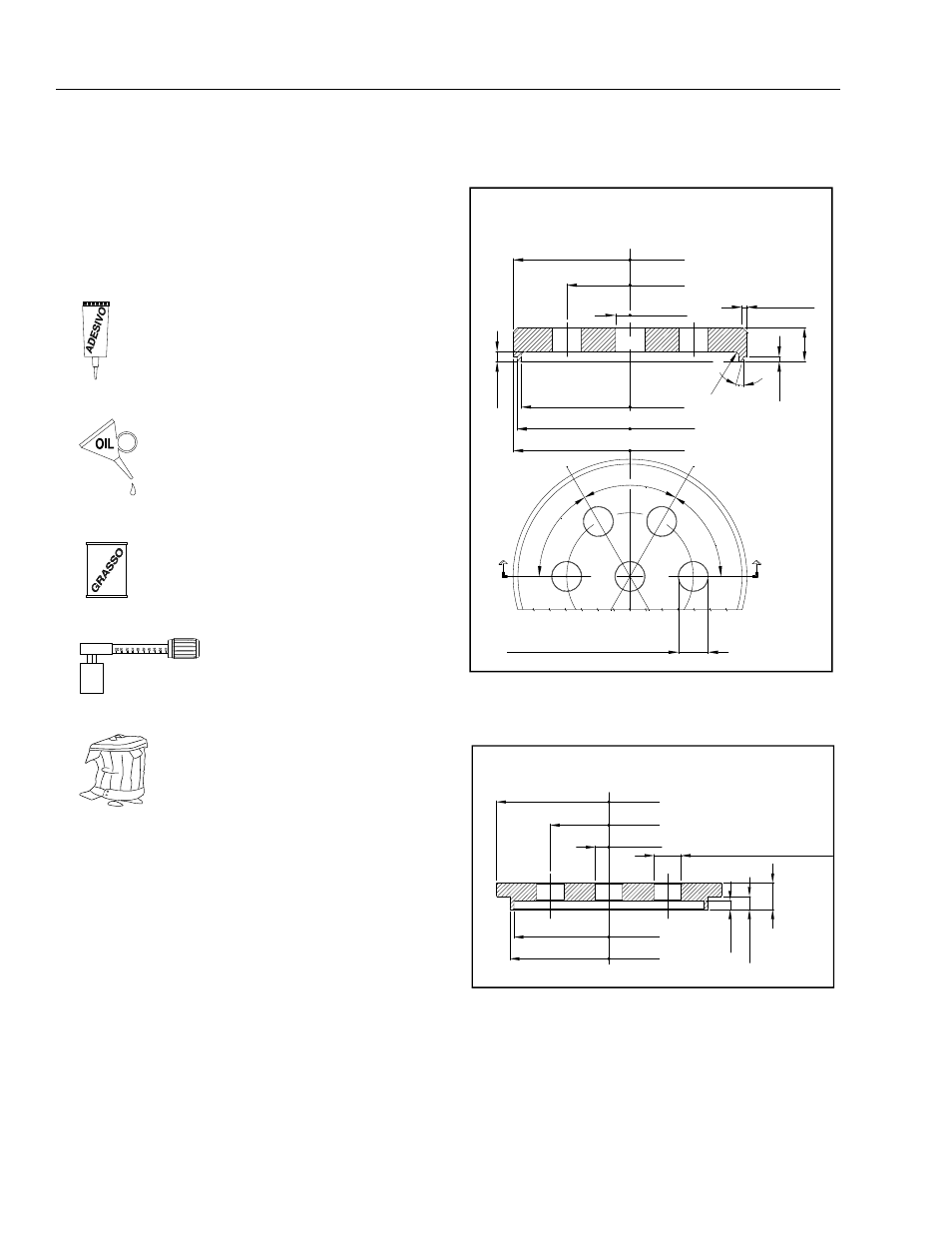

Figure 3-22. Bearing Track Spacer Mounting C016117
Ш30
Ш130
Ш249
Ш210
Ш219
N° 4 Hole to 90° Ø30
10
14
.5
29
.5
M- 1537
Figure 3-23. Oil Seal Spacer Mounting C125049
