SECTION 5 - HYDRAULICS
5-22 – JLG Lift – 3121262
10
104
106
104
101
108
7
108
101
3
2**
15
109
110
103
6
14***
105
107
102
4
18****
4
6,9*
18****
4
13
200
201
202
203
6,16
17
1,8
1. Threadlocker
2. Bolt
3. Tapered Bushing
4. Plug
5. Not Used
6. Lubricant
7. Piston 8. Bolt
9. Setscrew
10. Spacer
11. Not Used
12. Not Used
13. Barrel
14. Head 15. Rod
16. Cylinder Length Sensor
17. Retainer Cap
18. Counterbalance Valve
101.Lock Ring
102. Backup Ring
103.Wear Ring 104.Backup Ring
105.O-ring
106.O-ring
107.O-ring
108.Seal
109.Rod Wiper
110.Seal 200.Sensor Magnet Assembly
201.Spacer Sleeve
202.Sensor Magnet
203.Internal Retaining Ring

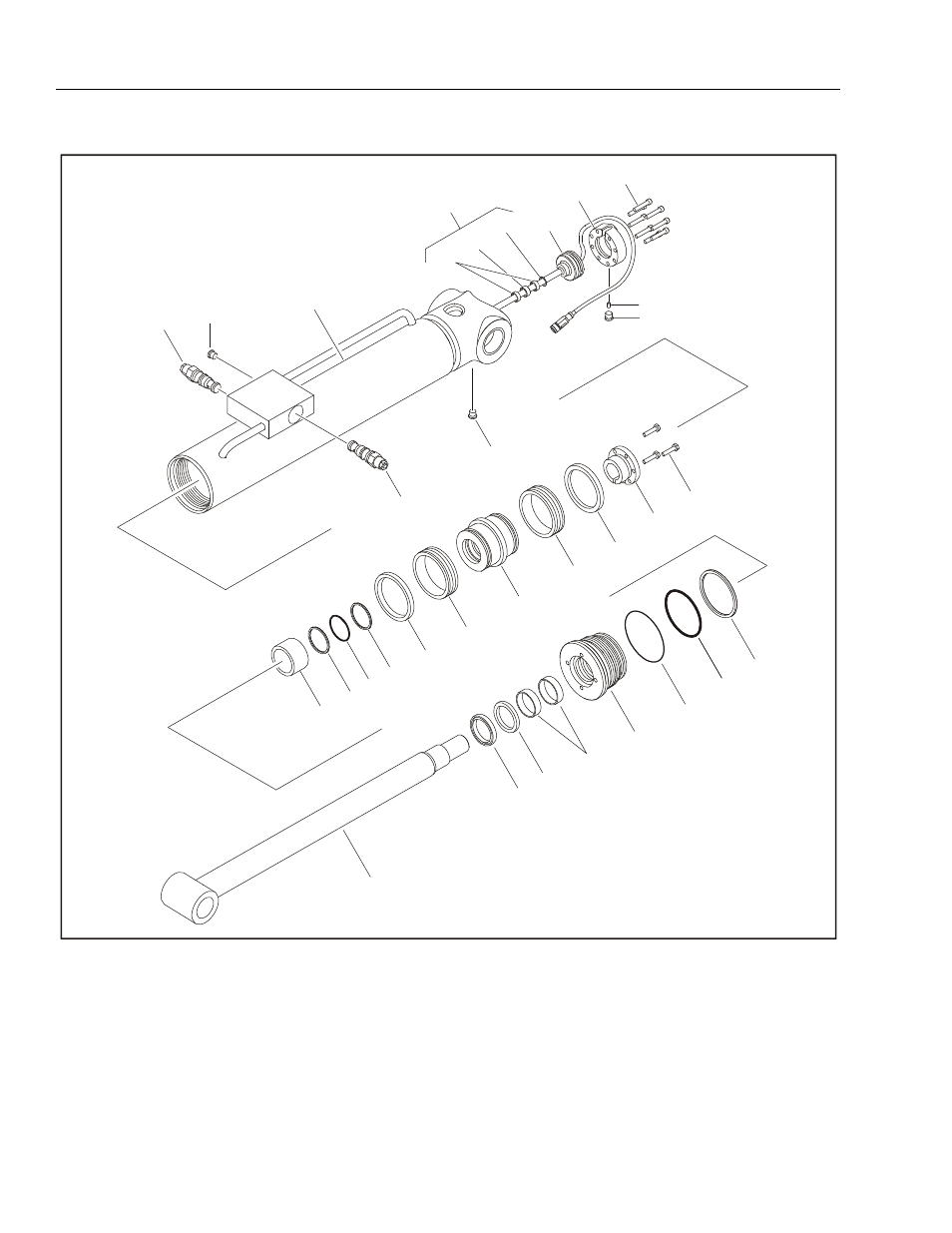

Figure 5-47. Platform Level Cylinder
* Torque to 4 in.lbs. (0.5 Nm)
** Torque to 9 ft.lbs. (12 Nm)
*** Torque to 200 ft.lbs. (271 Nm)
**** 30 to 35 ft.lbs. (41-47.5 Nm)
1001117968-D
