SECTION 7 - BASIC ELECTRICAL INFORMATION & SCHEMATICS
7-16 – JLG Lift – 3121262
IN HEAD STYLE
GLOW PLUG
GLOW PLUG
RELAY
BROKEN CABLE
PROXIMITY
SWITCH
HEAD AND TAIL
LIGHT RELAY
INTAKE STYLE
HEATER
J4
J2
J1
J5
J3
FUEL LEVEL
SENSOR
HEADLIGHT
HEADLIGHT
STROBE
GROUND
CONTROL
BOX
B.L.A.M.
MODULE
HORN
AUX POWER
RELAY
MAIN CONTROL
VALVE
HYDRAULIC PUMPS
ENGINE
SPEED SENSOR
GENERATOR CONTROL BOX
ALTERNATOR OIL TEMP
SWITCH
OIL PRESS
SWITCH
STARTER
START RELAY
110V / 220V GENERATOR
TRANSPORT
LIMIT
SWITCH
LIFT CYLINDER
LOAD SENSING
PIVOT PIN
BOOM LENGTH
SENSOR
BOOM ANGLE
SENSOR #1
(RIGHT)
BOOM ANGLE
SENSOR #2
(LEFT)
SWIVEL
TRANSPORT LIMIT
SWITCH WIRE
BROKEN CABLE
PROXIMITY
SWITCH WIRE
TURNTABLE
POWERTRACK
TURNTABLE HARNESS
DEUTZ EMR2
MODULE
V278-DRIVE RIGHT SIDE
REVERSE (SAUER/REXROTH)
V280-DRIVE LEFT SIDE
REVERSE (REXROTH)
V277-DRIVE RIGHT SIDE
FORWARD (SAUER/REXROTH
V279-DRIVE LEFT SIDE
FORWARD (REXROTH)
V246-DUMP
V255-SWING RIGHT
V252-LIFT UP
V249-TELESCOPE OUT
V254-SWING LEFT
V253-LIFT DOWN
V248-TELESCOPE IN
V256-LIFT FLOW CONTROL
V247-TELESCOPE
FLOW CONTROL
V251-LIFT
DOWN AUX.
V250-LIFT
PILOT
V280-DRIVE LEFT SIDE
REVERSE (SAUER)
V279-DRIVE LEFT SIDE
FORWARD (SAUER)
JIB ENABLE VALVE
CONNECTOR; (SEE
SHEET 5) REF BOOM
CABLES INST'L;
SN08 - MAIN
BOOM CYLINDER
ANGLE SENSOR
12/3 PLATF
DUMP HARNESS
CONNECTION
NEAR JIB
ENABLE VALVE
1001119385-C

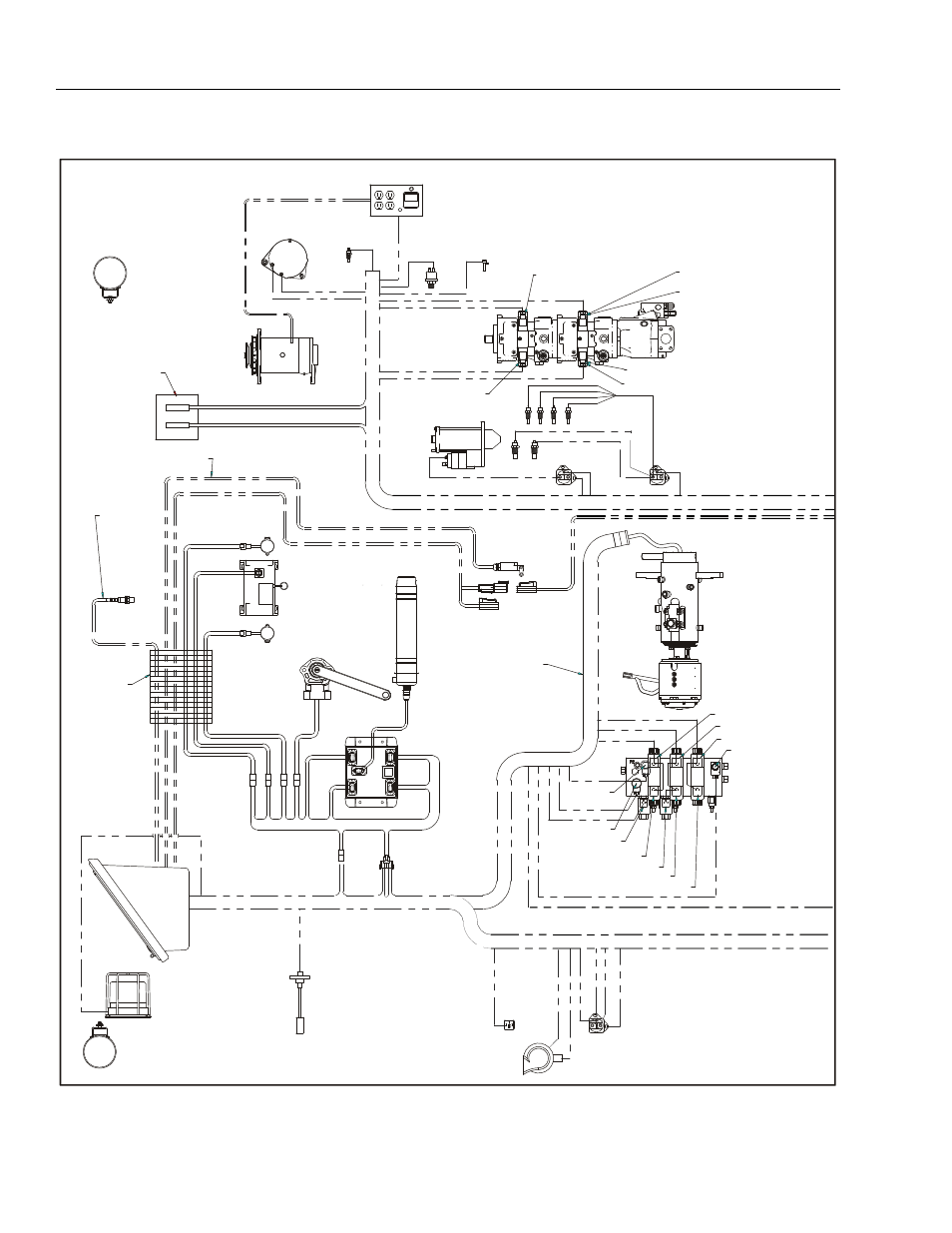

Figure 7-23. Turntable Electrical Components - Sheet 1 of 2
