SECTION 3 - CHASSIS & TURNTABLE
3121262 – JLG Lift – 3-115

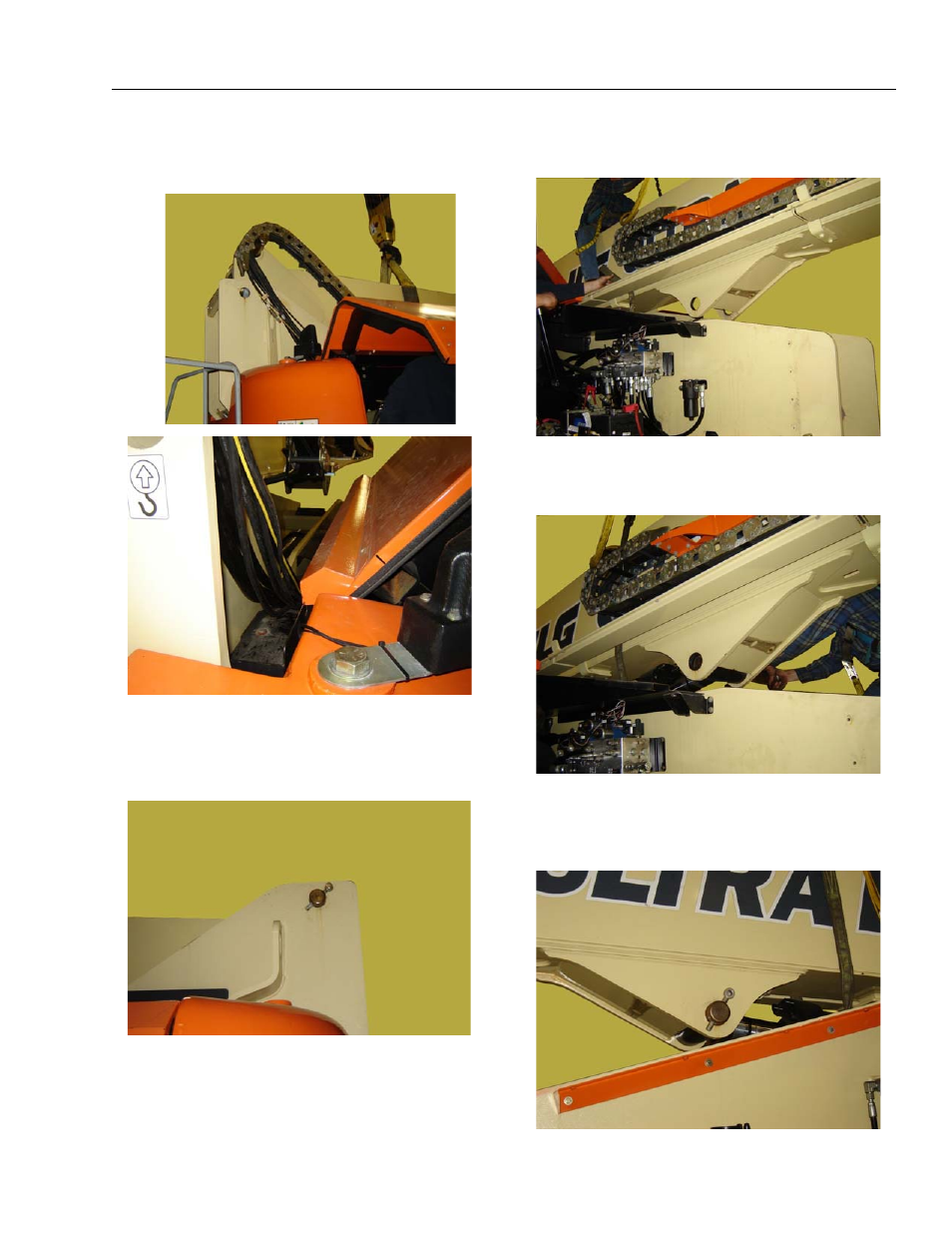

20. While lifting the boom into position, begin to route
the hoses into position so they can be inserted into
the powertrack.
21. Line up the boom pivot fittings and install the boom
pivot pin. Apply JLG Threadlocker P/N 0100019 to
the bolt threads and secure the pin in place with the
keeper pin and bolt. Torque the bolt to 285 ft.lbs.
(388 Nm).
22. Raise the boom enough to gain access to the lift cyl-
inder rod pivot fitting.
23. Attach a lifting device to the lift cylinder barrel. Lift
the lift cylinder up to align the lift cylinder rod pivot
fittings.
24. Install the lift cylinder rod pivot pin. Apply JLG
Threadlocker P/N 0100019 to the bolt and secure
the pivot pin in place with the keeper pin and bolt.
Torque the bolt to 285 ft.lbs. (388 Nm).
