Replacing a fan
7
Insert the new fan into the opening left by the old fan, then engage the fan retention
tabs and fan release tab with the chassis until it snaps into place.
8
Plug the fan cable into the fan connector on the system board.
9
Replace the processor air duct by following the instructions in
10
Follow the instructions in
“Closing the server case” on page 37
.
To replace a back fan:
1
Follow the instructions in
“Preventing static electricity discharge” on page 29
.
2
Follow the instructions in
“Opening the server case” on page 30
.
3
Unplug the fan cable from the fan connector on the system board.

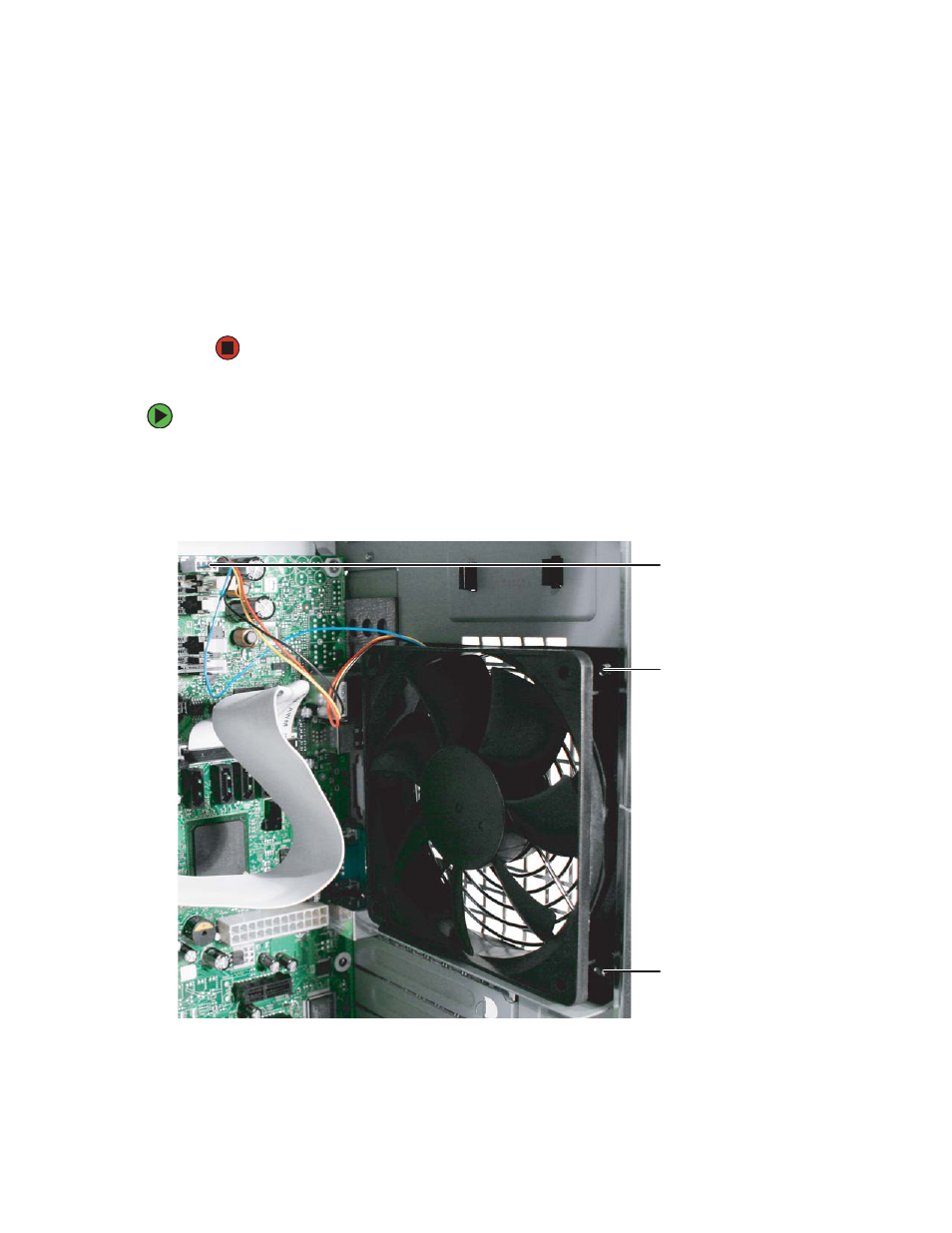

Fan cable
Fan retention
screw
Fan retention
screw
