Replacing the processor
11
Place the heat sink on the processor, making sure the Thermal Interface Material (TIM)
is aligned between the heat sink and the processor.
12

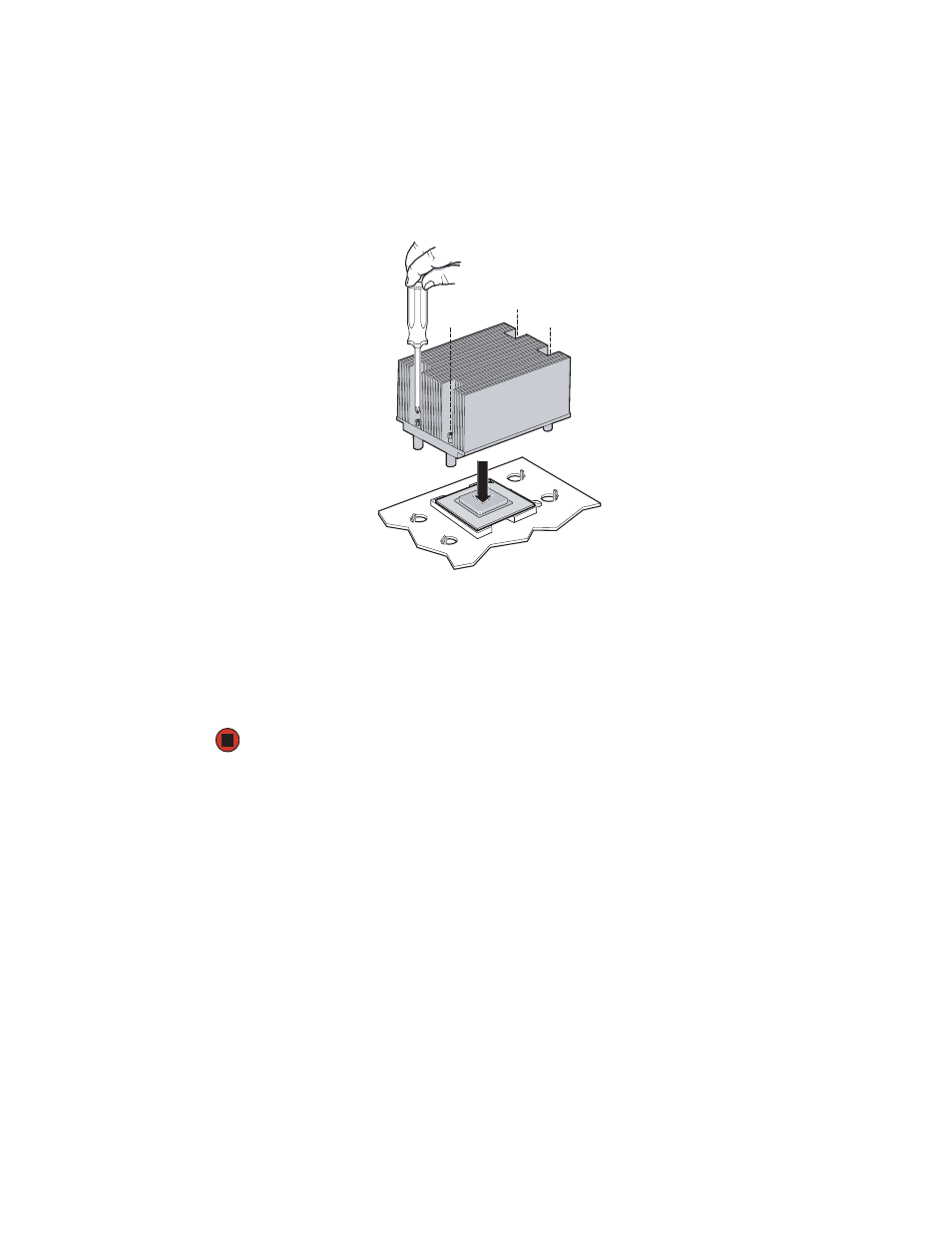

Line up the four captive screws with the four posts surrounding the processor, then
gradually and evenly tighten the four captive screws to secure the heat sink to the
system board.
13
Follow the instructions in “Installing the processor air duct” on page 34 .
14
Follow the instructions in “Closing the server case” on page 37 .
