Installing PCI expansion cards
Installing PCI expansion cards
Use the following chart to determine the PCI slot into which you should install your
expansion card.
To replace, add, or reseat a PCI expansion card:
1
Follow the instructions in “Preventing static electricity discharge” on page 29 .
2
Follow the instructions in “Opening the server case” on page 30 .
3
If you are replacing a card, disconnect any cables that are attached to the old card.
Caution
This server does not have PCI hot-plug capability. Do not attempt to
install or remove a PCI card without turning off your server and
disconnecting it from the AC power source.
PCI slot Description
1 PCI Express - x1
2 PCI Express - x8
3 PCI - Runs at 32-bits
4 PCI Express - x4
5 PCI - Runs at 32-bits

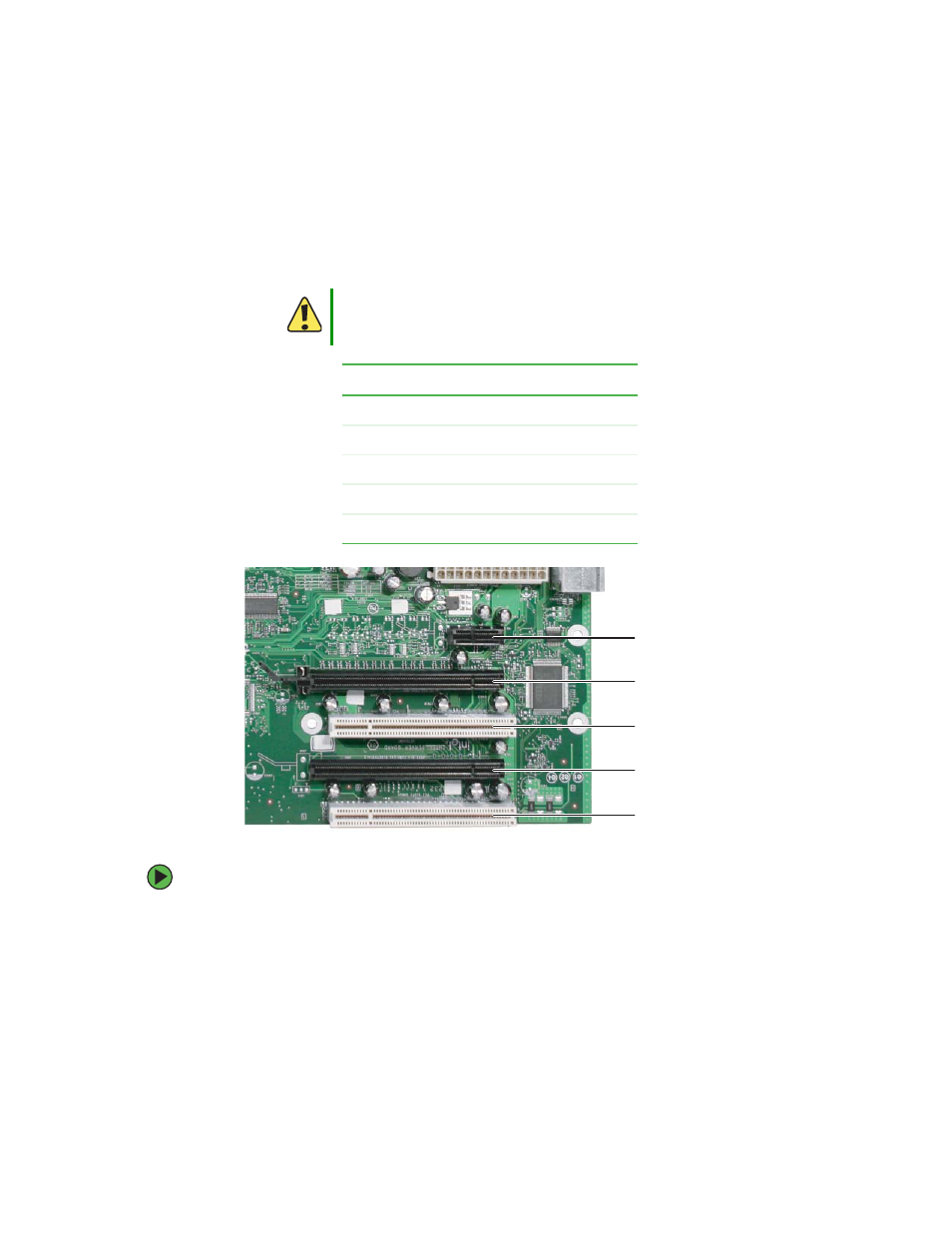

PCI slot 5
PCI slot 4
PCI slot 3
PCI slot 1
PCI slot 2
