bizhub C360/C280/C220 2-9
2.2 Main Body 2
2.2.3 Internal main unit

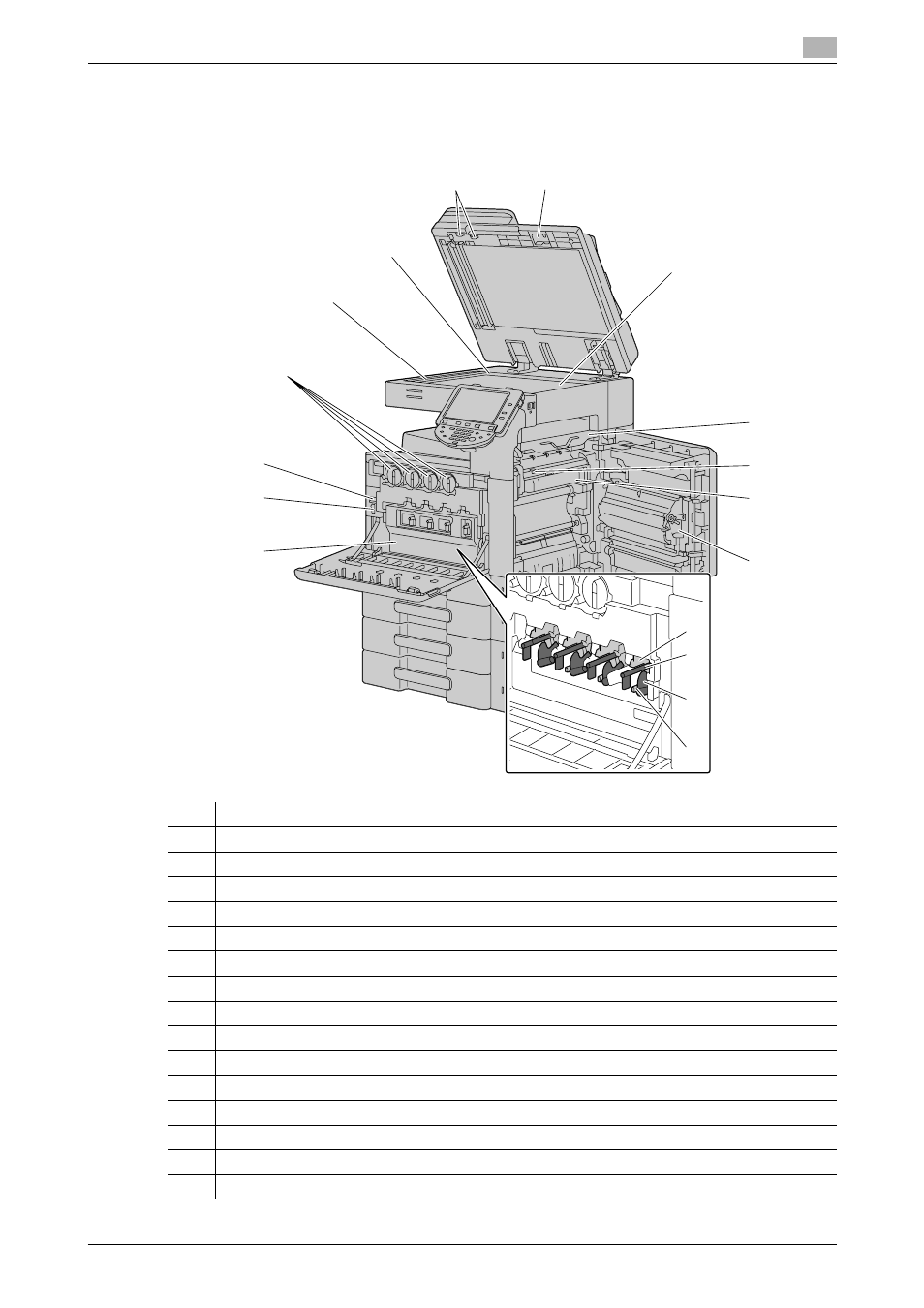

The illustration above shows the main unit with an optional Reverse Automatic Document Feeder DF-617
and Paper Feed Cabinet PC-207.
No. Name
1 Original Glass
2 Fusing Unit Top Cover
3 Fusing Unit Cover Lever
4 Fusing Unit
5 Auto Duplex Unit
6 Drum Unit
7 Charger Cleaner
8 Lock Release Tab
9 Printhead Cleaner
10 Waste Toner Box
11 Main Power Switch
12 Total Counter
13 Toner Cartridge
14 Slit Scan Glass
15 Original Scale
1
2
3
4
5
6
7
8
9
11
12
13
14
15
17 16
10
