Drain at Partial Width Curb
Layout 3
Shower Pan Liner must turn up the walls a minimum
of 3" above finished shower curb and 6" above floor in
showers without curbs.
Prior to installing Shower Pan Liner, install pre-formed
outside corners (available separately) following
manufacturer’s instructions. 2 per side.
Measure width of shower floor across drain base.
Measure up and over curb. Lay Shower Pan Liner flat.
Measure and mark Shower Pan Liner.
Cut, fold and crease to proper size and fit. Note: Do not
secure Shower Pan Liner at this time.
Note: Preformed curbs may also be used.
See manufacturer’s instructions.
Drain at Curb-less Entry
Layout 4
Shower Pan Liner must turn up the walls a minimum
of 3" above finished shower curb and 6" above floor in
showers without curbs.
Prior to installing Shower Pan Liner, install pre-formed
outside corners as needed, (available separately)
following manufacturer’s instructions.
Measure width of shower floor across drain base.
Lay Shower Pan Liner flat. Measure and mark Shower
Pan Liner.
Cut, fold and crease to proper size and fit.
Note: Do not secure Shower Pan Liner at this time.

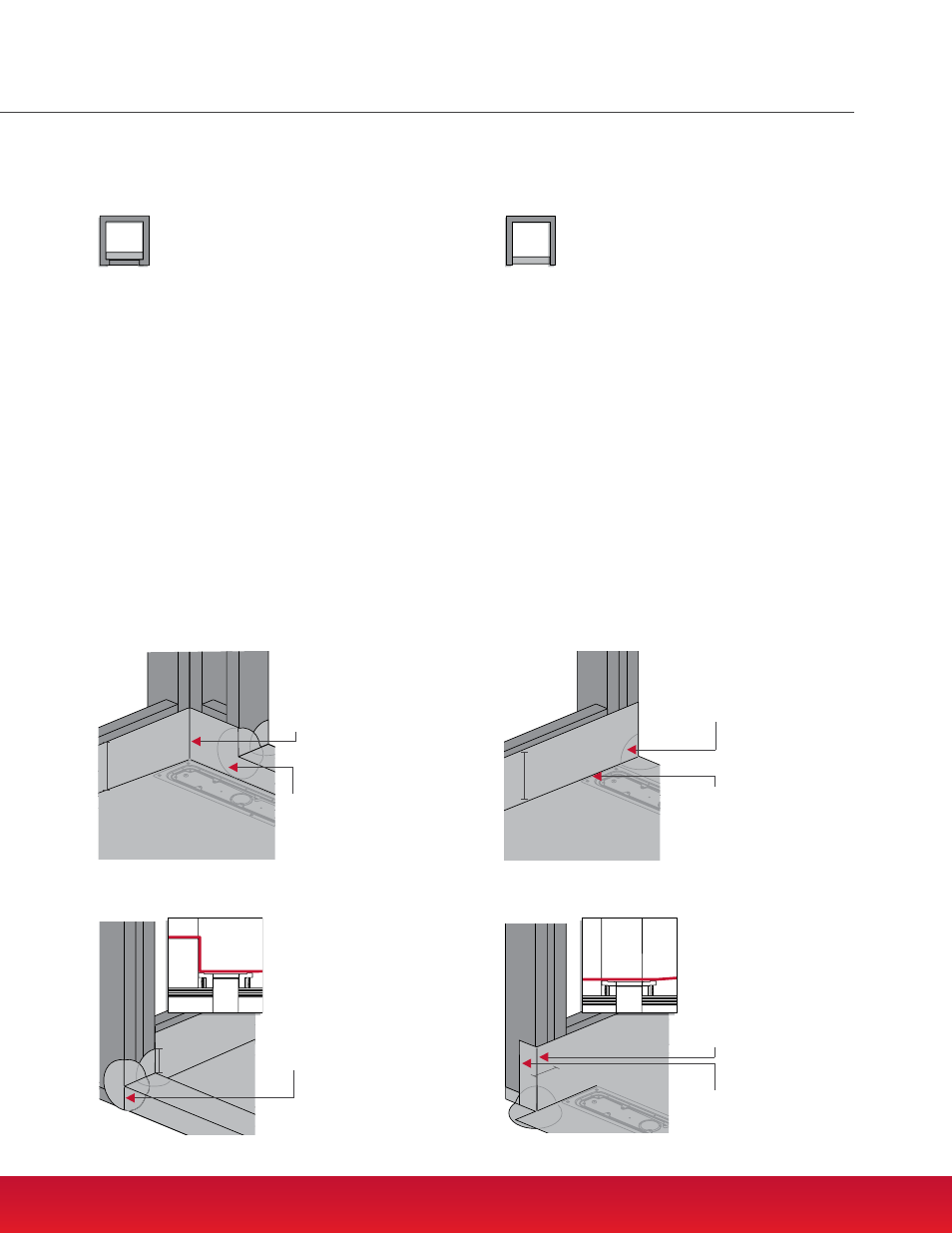

Inside Shower Inside Shower
7. Prepare Shower Pan Liner
(cont.)
Tuck or Fold
6" min.
Outside Corners
Under Membrane
Fold
6" min.
Outside Corners
Under Membrane
Outside Shower Outside Shower
3" min.
Outside Corners
Under Membrane
Fold
2" min.
Outside Corners
Under Membrane
