Fasten drain base to sub-floor – Sioux Chief Linear Shower Drain - StreamLine - Full Mortar Bed User Manual
Page 6

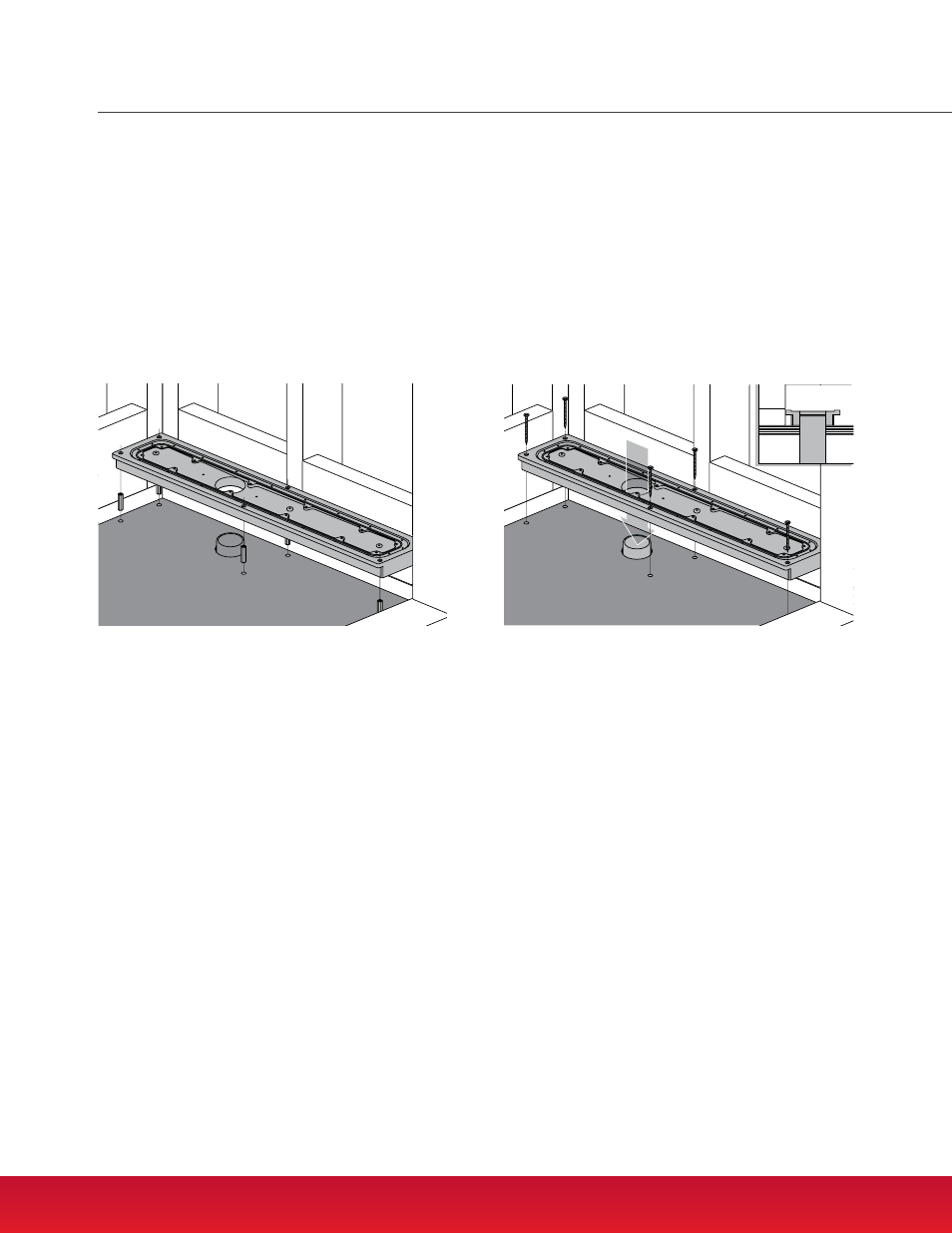

5. Fasten Drain Base to Sub-Floor
For Concrete Sub-Floor A & B
For Wood Sub-Floor B only
A. Mark for Anchors
Dry fit drain base over waste pipe. Mark all holes in
outside flange of drain base on concrete floor. Remove
drain base. Drill 1/4" holes, 1-1/2" deep where marked.
Drive plastic anchors flush in all holes.
B. Install Drain Base to Waste Pipe and Sub-Floor
Caution:
Confirm proper plastic pipe cement and primer for drain base
type (PVC or ABS). Check drain base label to confirm. Apply appropriate
plastic pipe cement and primer to drain and waste pipe following local
plumbing codes and manufacturers instructions. Fit and fully seat
drain base onto waste pipe. Fasten drain base to sub-floor by screwing
2-1/2" deck screws through all holes in outside flange of drain base
into plastic anchors or directly into wood sub-floor.
Do not over-tighten.
5 www.siouxchief.com
