98
User Manual
♦
Display
: TFT transmissive LCD
(active area 15")
♦
Display Resolution
: 1024 x 768 pixels
♦
Cartography
: C-MAP C-CARD
♦
Operating temperature range : 32° to 131° F (0° to 55° C)
♦
Memory
: Internal non volatile for user data
backup
♦
Keyboard
: Silicon rubber, backlight
♦
Weight
: 4,5 Kg
When the package containing the chart plotter is opened for the first time after
purchase, please make sure that the following contents are present (if any item is
missing, please contact your local dealer):
♦
External bracket and I/O cable 1,5 mt/5.9"
♦
AUX IN I/O cable 1,5 mt/5.9"
♦
Chart plotter's protective cover
♦
Fuse 2 Amp. + fuseholder
♦
User Manual
♦
Flush mounting kit
♦
Smart DGPS WAAS Receiver with cable 15 mt/45 feet

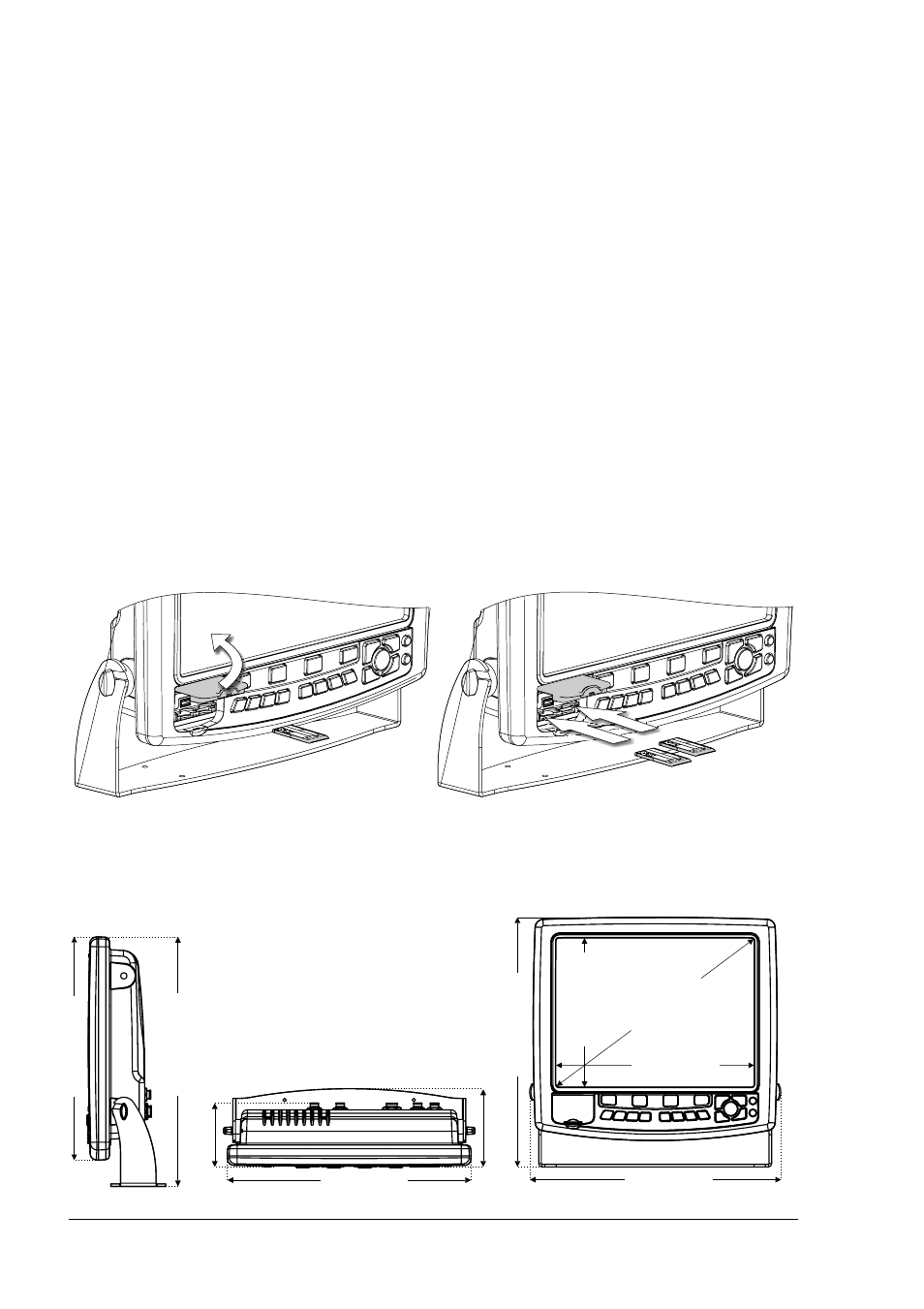

INSERTING/REMOVING PROCEDURE
Inserting the C-CARD
Hold the C-CARD by the short inclined side so that you can see the C-MAP label.
Open the door, gently push the C-CARD into one of the two slots; push the C-CARD
in as far as it will go, then close the door to hold fixed into the slot.
Removing the C-CARD
Open the door and remove the C-CARD out of the slot.
CHART PLOTTER DIMENSIONS
389 [15.30”]
386.
2
[15.
20
”]
345.4
[13.60
”]
386.2
[15.20
”]
230.7
[9.10
”]
381
[15
.00
”]
307 [12.10”]
99
[3.90
”]
378 [14.86”]
121
[4.76
”]
