Page 73

75
User Manual

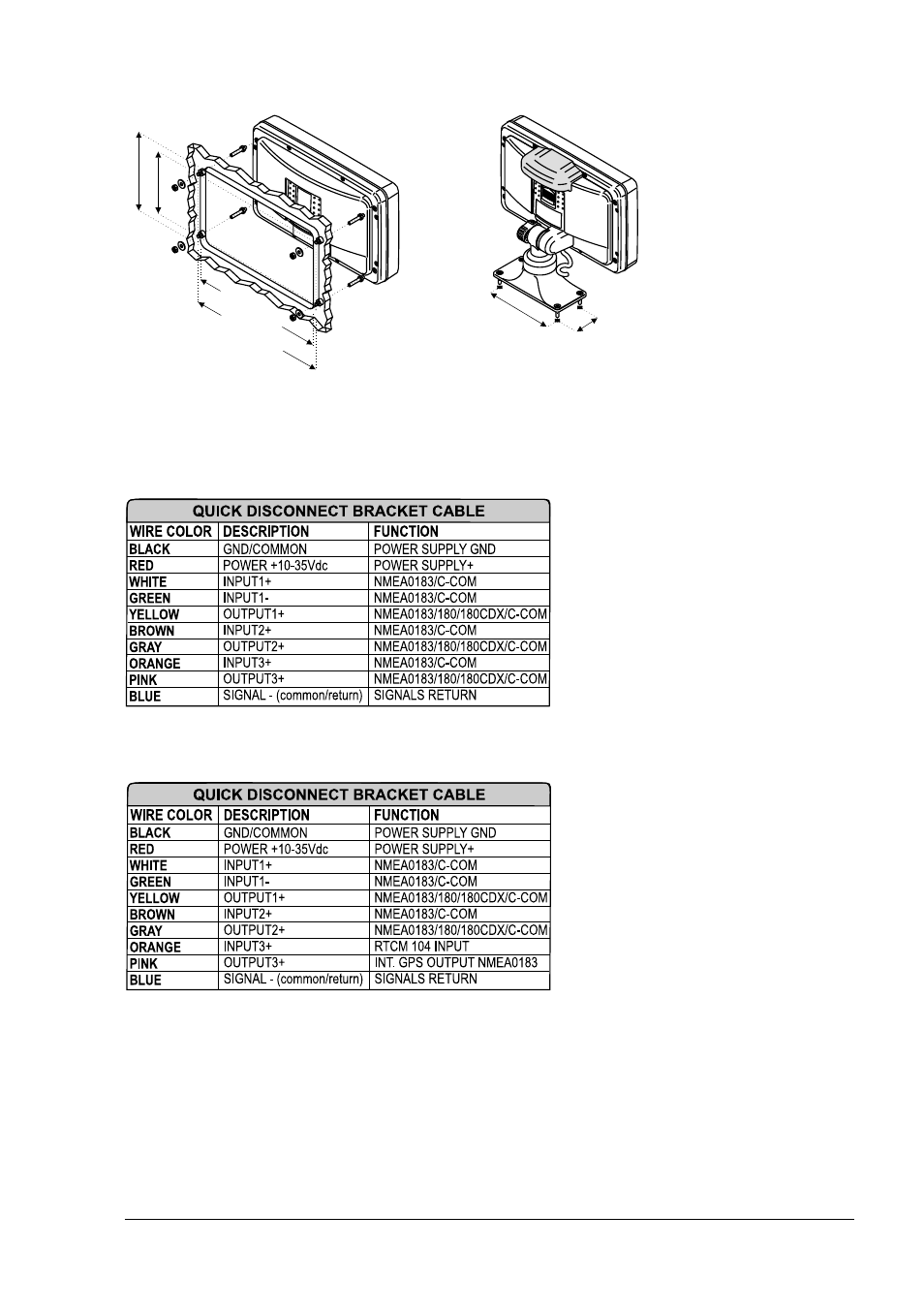

INSTALLATION AND REMOVING
100 [3.9"]
126
[5"]
115
[4.5
”]
45
[1.8
”]
GRAY parts are present ONLY on
chart plotter WITH GPS INTERNAL
220
[8.7"]
211
[8.3
"]
Flush mount installation for BARRACUDA and Bracket installation for BARRACUDA/BARRACUDA iGPS
EXTERNAL WIRING
External Wiring for BARRACUDA
External Wiring for BARRACUDA iGPS
