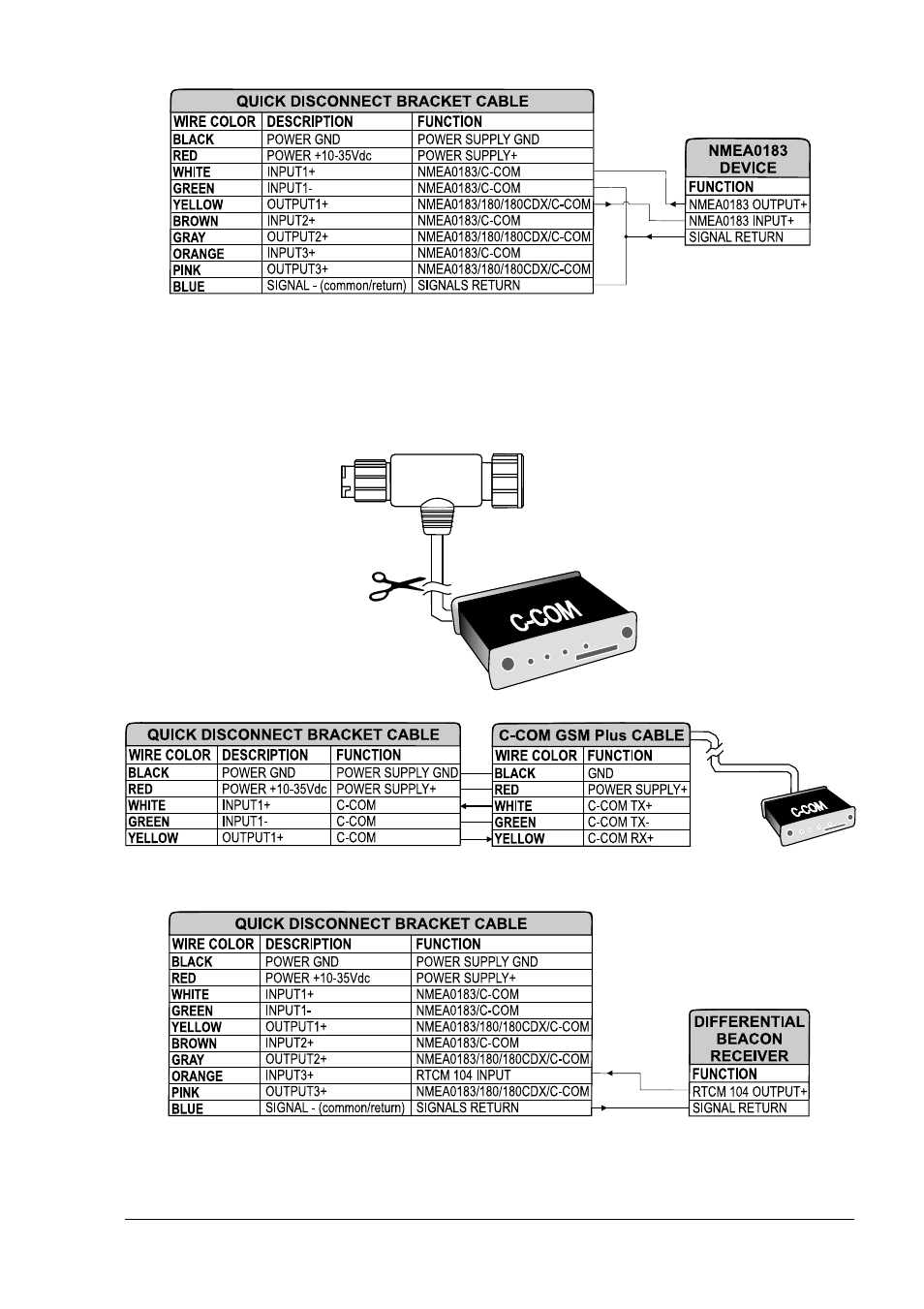

External NMEA Connection
External NMEA Connections on Port 1
C-COM GSM Plus Connection
To connect the modem C-COM to the chart plotter with quick disconnect bracket
follow the procedure:
1. Cut the C-COM cable about 1.96" [5 cm] from the "T" connector:
2. Connect the wires to the quick disconnect bracket cable as follows:
Connection for the Port 1
Beacon Receiver Connection
MILLENNIUM 7/MILLENNIUM 7 Color
(Internal GPS Receiver)
NOTE
For TIGERSHARK Plus/NAUTILUS iGPS Plus: To connect a Differential Beacon
Receiver see previous figure "GPS Connection TIGERSHARK Plus/NAUTILUS
iGPS Plus"
(External Smart GPS Receiver)
.
